Sony STR-ZA2000ES - DISPLAY Board Section

95
STR-ZA1000ES/ZA2000ES/ZA3000ES

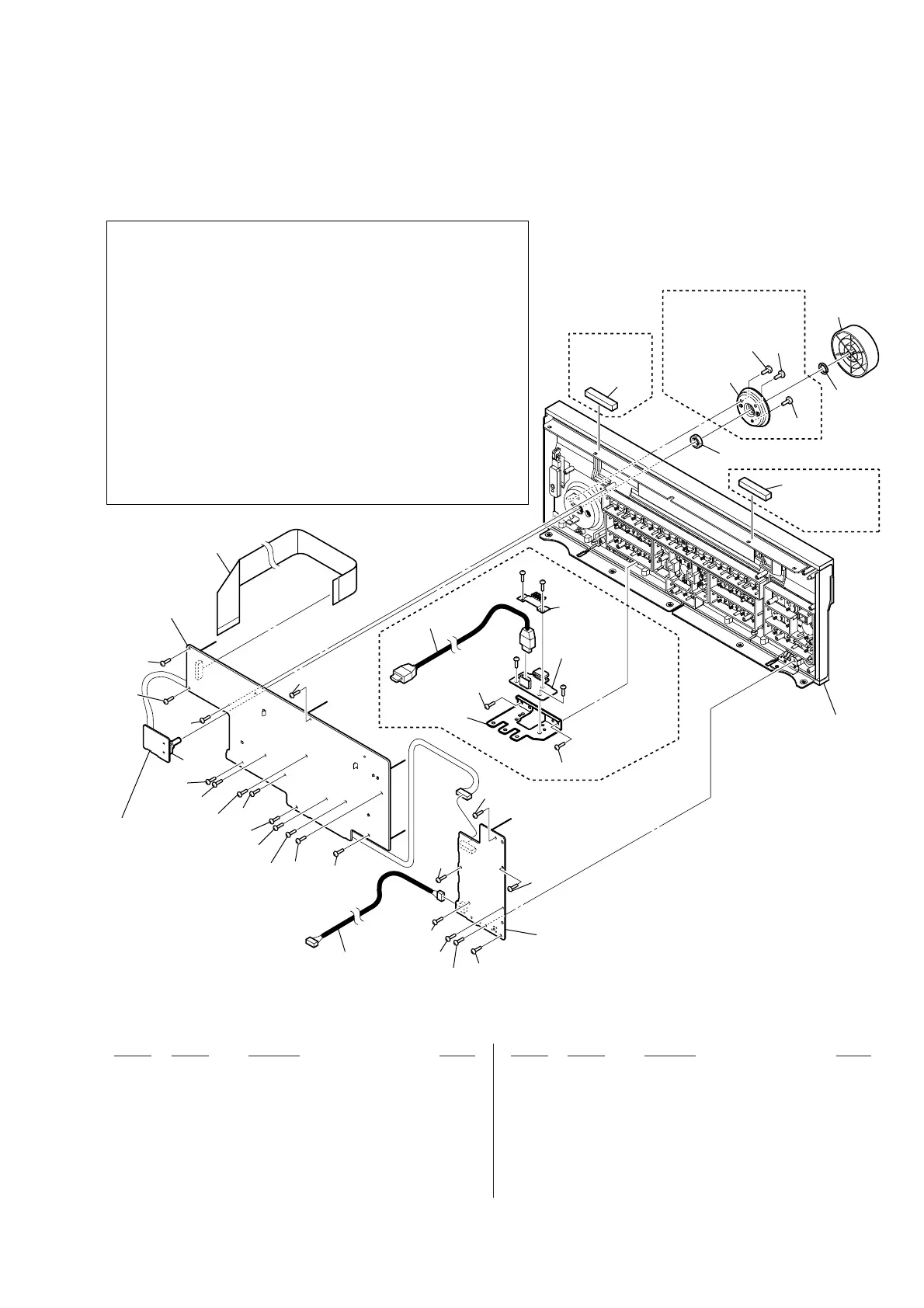

7-3. DISPLAY BOARD SECTION
• Rear view
(ZA2000ES/
ZA3000ES)
(ZA2000ES/
ZA3000ES)
(ZA2000ES/
ZA3000ES)
FFC5
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
105
105
103
104
101
101
106
101
not supplied
(M_VOL board)
not supplied
(DISPLAY board)
not supplied
supplied with EN153
(See Note)
(See Note)
EN153
101
101
101
102
HC1
not
supplied
#2
#2
#2
#2
not supplied
not supplied
(POWER_KEY board)
front panel section
(ZA1000ES: New type)
Note:
The VOL KNOB (Ref. No.104) of the STR-ZA1000ES has been changed
in the midway of production. Therefore, when replacing the VOL KNOB
of the STR-ZA1000ES, be sure to refer to the following before replacing
the VOL KNOB.
Replacement procedure
1. Remove the VOL KNOB (Ref. No.104).
2. Check whether there is a BASE KNOB (Ref. No.106).
Alternatively, check a part number engraved on the back side of the
VOL KNOB.
3. Refer the following identification method, and then replace with
a VOL KNOB of the applicable type.
Identification method
Former type VOL KNOB:
• There is no BASE KNOB (Ref. No.106).
• Part number engraved on the back side of the VOL KNOB is “4-534-620”.
New type VOL KNOB:
• There is a BASE KNOB (Ref. No.106).
• Part number engraved on the back side of the VOL KNOB is “4-558-835”.
101 3-087-053-01 +BVTP2.6 (3CR)
102 A-2039-518-A F-HDMI BOARD, COMPLETE
(ZA2000ES/ZA3000ES)
103 3-354-981-11 SPRING (SUS), RING
104 4-534-620-01 KNOB, VOL (ZA1000ES: Former type/
ZA2000ES/ZA3000ES) (See Note)
104 4-558-835-02 KNOB, VOL (ZA1000ES: New type) (See Note)
105 4-152-293-01 SPACER (408) (ZA2000ES/ZA3000ES)
106 4-558-836-02 KNOB, BASE (ZA1000ES: New type) (See Note)
EN153 1-418-725-41 ENCODER, ROTARY (12 TYPE) (Including nut)
(MASTER VOLUME)
FFC5 1-921-391-32 FFC 29P (400)
HC1 1-848-324-11 HDMI CABLE (ZA2000ES/ZA3000ES)
#2 7-685-645-71 SCREW +BVTP 3X6 TYPE2 IT-3
(ZA2000ES/ZA3000ES)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
