Sony STR-ZA2000ES - PRE-OUT Board (ZA3000 ES)

STR-ZA1000ES/ZA2000ES/ZA3000ES
17

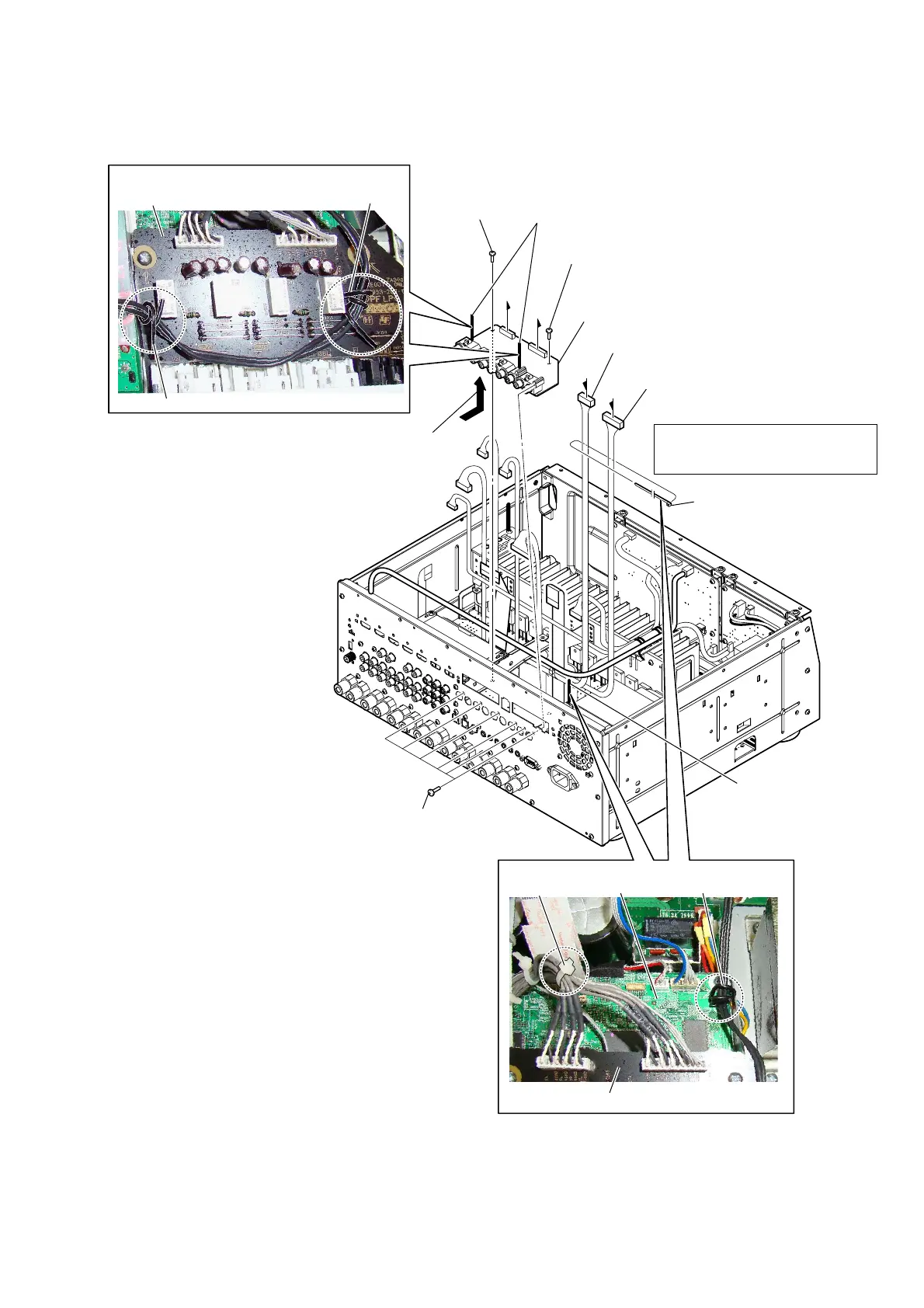

2-14. PRE-OUT BOARD (ZA3000ES)
5 six screws
(BVTP3 u 8)
– Rear view –
7
PRE-OUT board
3
connector
(CN351)
4
connector
(CN350)
2 Cut the cable tie.
A
A
B
B
1 Remove the wire
from the lead pin.
1 Remove the wire
from two lead pins.
5 screw
(BVTP3 u 8)
5 screw
(BVTP3 u 8)
6 Remove the
PRE-OUT
board block
in the direction of an arrow.
Note:
During reassembly, use new cable
ties to fasten the wires back in place
as they were before disassembly.
PRE-OUT board
:LUHVHWWLQJ
lead pin
lead pin
cable tie
PRE-OUT board
AUDIO board
lead pin
:LUHVHWWLQJ
