Sony STR-ZA2000ES - Power Transformer Section

100
STR-ZA1000ES/ZA2000ES/ZA3000ES
351 4-900-386-01 SCREW +BV SUMITITE S 4X8 ROUND
0 F01 1-532-505-33 FUSE (T 5 AL/250 V)
FC1 1-500-981-11 CORE, FERRITE
FC2 1-500-981-11 CORE, FERRITE
FFC1 1-921-391-42 FFC 9P (250)
0 T01 1-697-391-11 POWER TRANSFORMER
TU1 A-1846-564-A TUNER1AMF ASSY (FM/AM TUNER UNIT)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

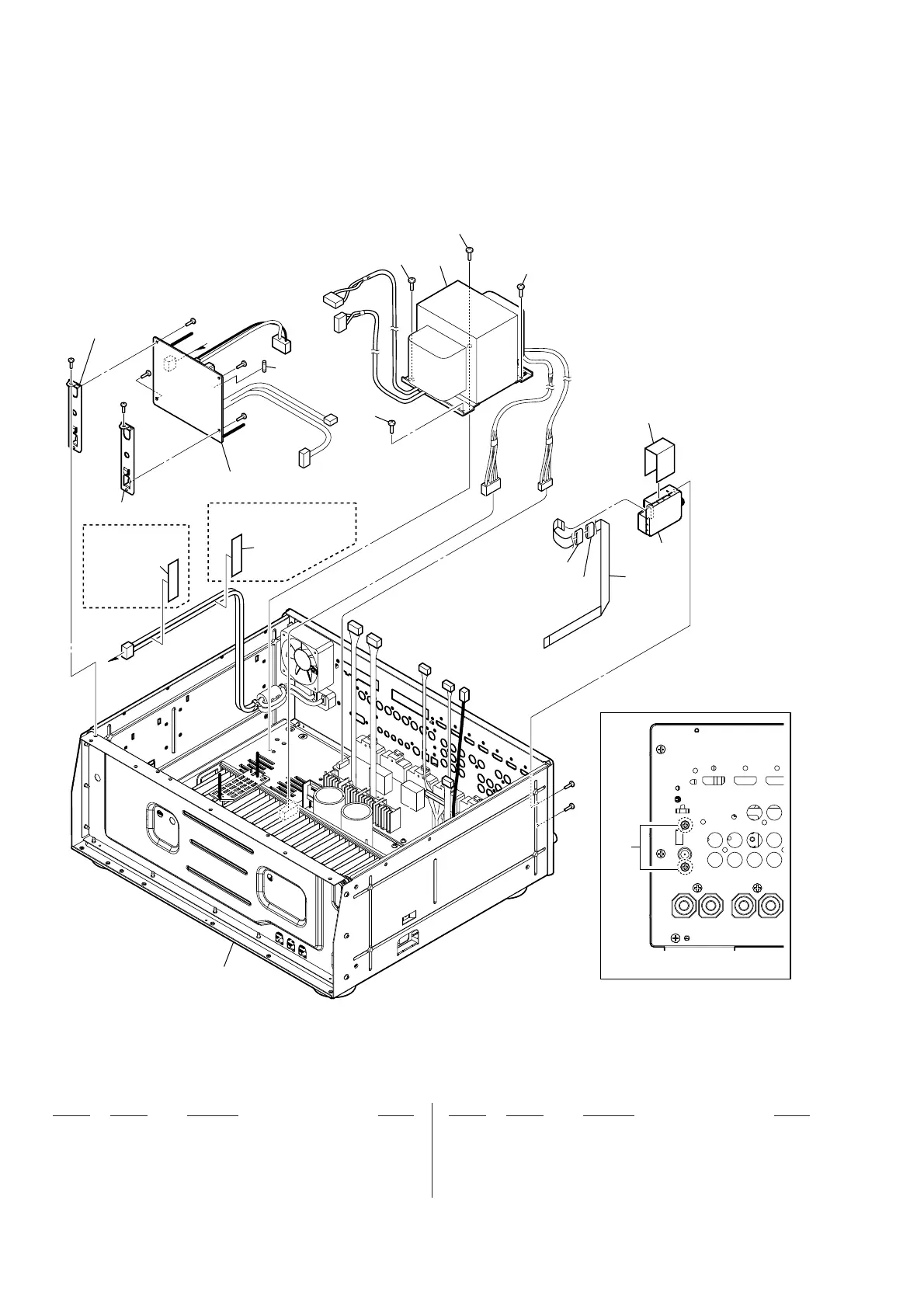

7-8. POWER TRANSFORMER SECTION
AMP board section
#1
#1
F01
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
(STBY board)
T01
351
351
351
351
FC1
FFC1
FC2
TU1
#1
#1
#1
not supplied
not supplied
– Rear view –
ea
ea
(ZA3000ES)
(ZA1000ES/ZA2000ES)
Ver. 1.1
