Sony STR-ZA2000ES - DCDC Board Block-2

STR-ZA1000ES/ZA2000ES/ZA3000ES
14

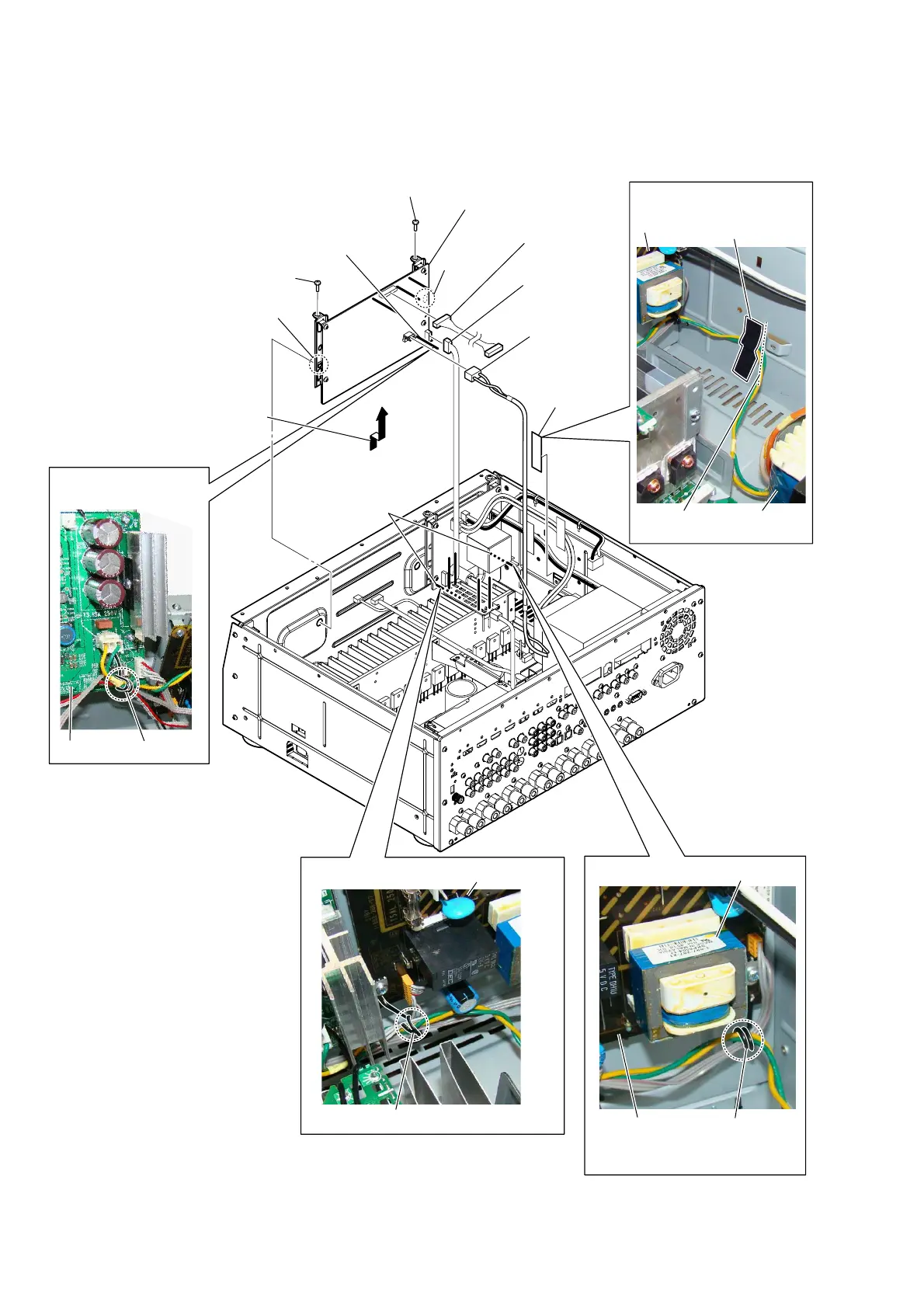

2-11. DCDC BOARD BLOCK-2
3 screw
(BVTP3 u 8)
3 screw
(BVTP3 u 8)
0 DCDC board block
STBY board
power transformer
(T01)
guide line
4 Remove the DCDC board block
in the direction of an arrow.
6 Remove the wire
from the lead pin.
2 Remove the wire
from two lead pins.
– Rear view –
9
connector
(CN1631)
7
connector
(CN1601)
8
connector
(CN981)
1
saranet
cushion
(LXWXT)
saranet cushion
(LXWXT)
&XVKLRQVHWWLQJ
:LUHVHWWLQJ
lead pin
DCDC board
lead pin
lead pin
STBY board
transformer
STBY board
:LUHVHWWLQJ
:LUHVHWWLQJ
5 hook
5 hook
Note:
The wire must not touch
the transformer.
