Sony STR-ZA2000ES - DCDC Board Block-1

STR-ZA1000ES/ZA2000ES/ZA3000ES
13

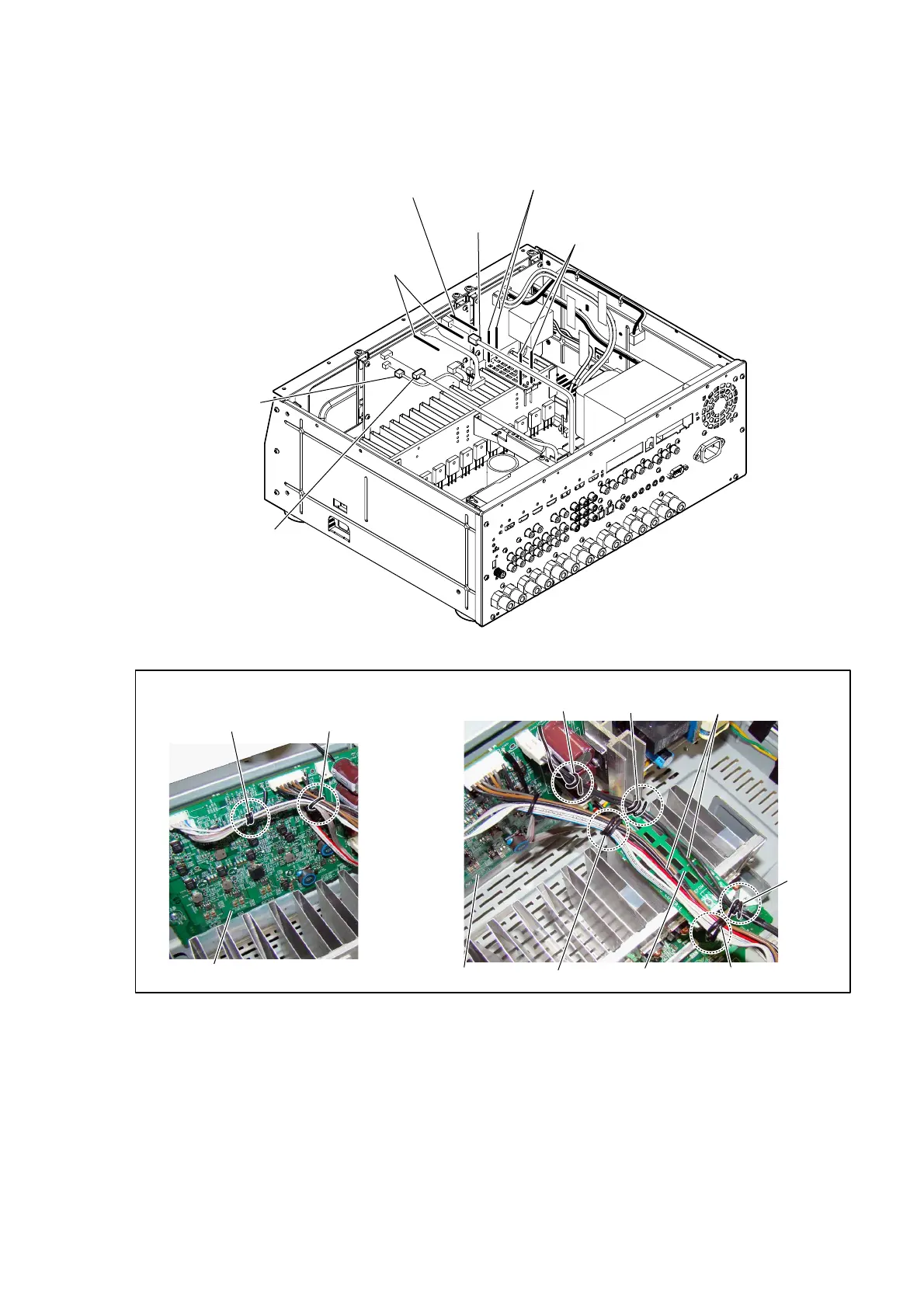

2-10. DCDC BOARD BLOCK-1
– Rear view –
4
connector
(CN1651)
3
connector
(CN1671)
2
connector
(CN1621)
:LUHVHWWLQJ
DCDC board
DCDC board
lead pin
lead pin
lead pin
lead pin
HS_COVER-L board
lead pin
lead pin
lead pin
1 Remove the wire
from the lead pin.
(See Fig. B)
1 Remove the wire
from two lead pins.
(See Fig. A)
1 Remove the wire
from two lead pins.
(See Fig. B)
1 Remove the wire
from two lead pins.
(See Fig. B)
)LJ$! )LJ%!
Note:
The GND board wire must not
touch another wire.
