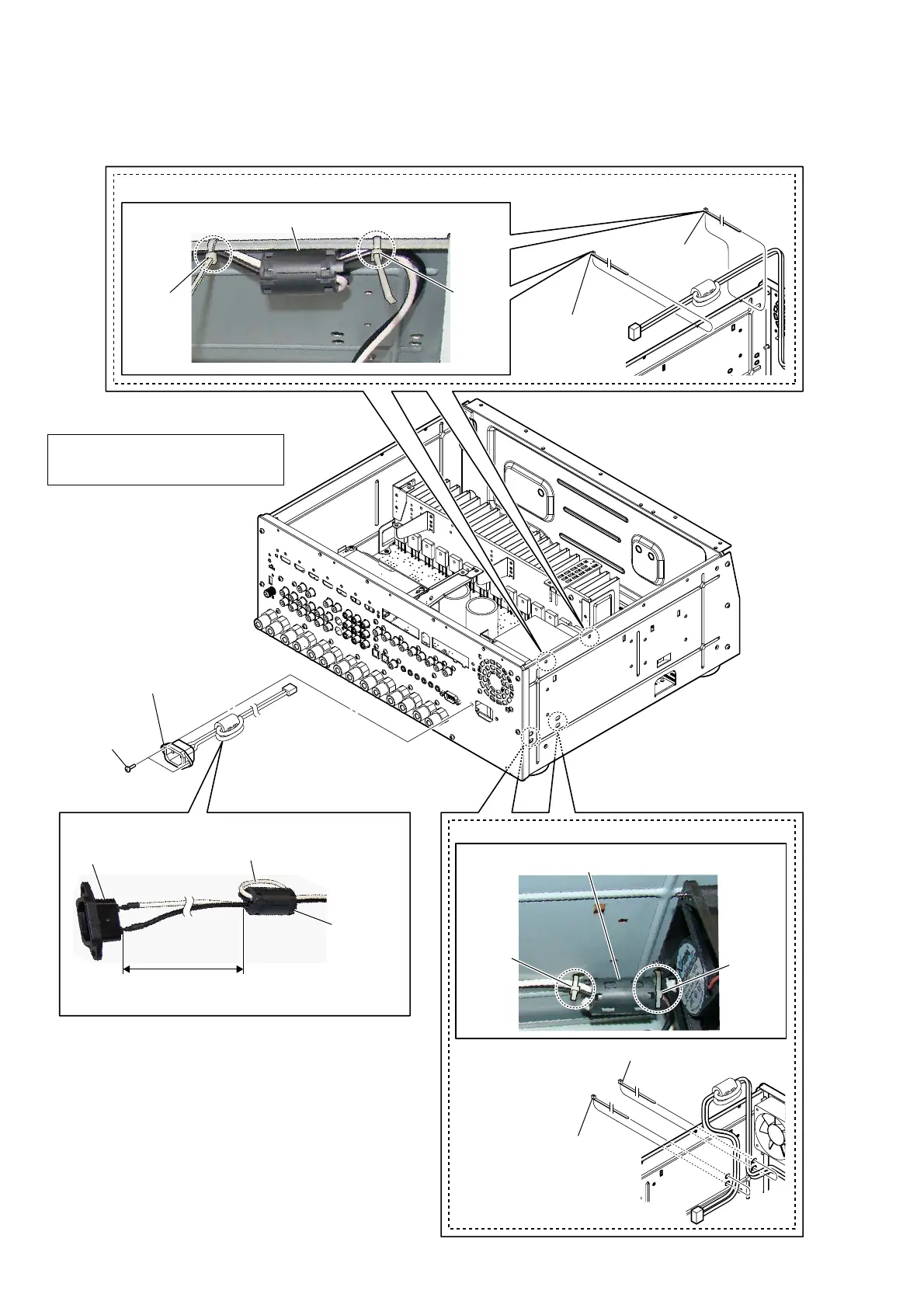

2-13. AC INLET (2P) BLOCK
3 AC inlet (2P) block
AC inlet (2P)
(AC1)
AC inlet wire two rounds.
1 Cut the cable tie.
1 Cut the
cable tie.
(ZA3000ES)
cable tie
cable tie
2 two screws
(BVTP3 u 8)
:LUHVHWWLQJ
&ODPSILOWHUIHUULWHFRUH)&VHWWLQJ
–5HDUYLHZ–
ZA1000ES/ZA2000ES: 180 mm
ZA3000ES: 100 mm
clamp filter (ferrite core) (FC3)
clamp filter
(ferrite core)
(FC3)
:LUHVHWWLQJ
(ZA1000ES/ZA2000ES)
cable tie
cable tie
1 Cut the cable tie.
1 Cut the cable tie.
clamp filter (ferrite core) (FC3)
Note:
During reassembly, use new cable ties
to fasten the wires back in place as
they were before disassembly.
