STR-ZA1000ES/ZA2000ES/ZA3000ES
7
Note: Follow the disassembly procedure in the numerical order given.

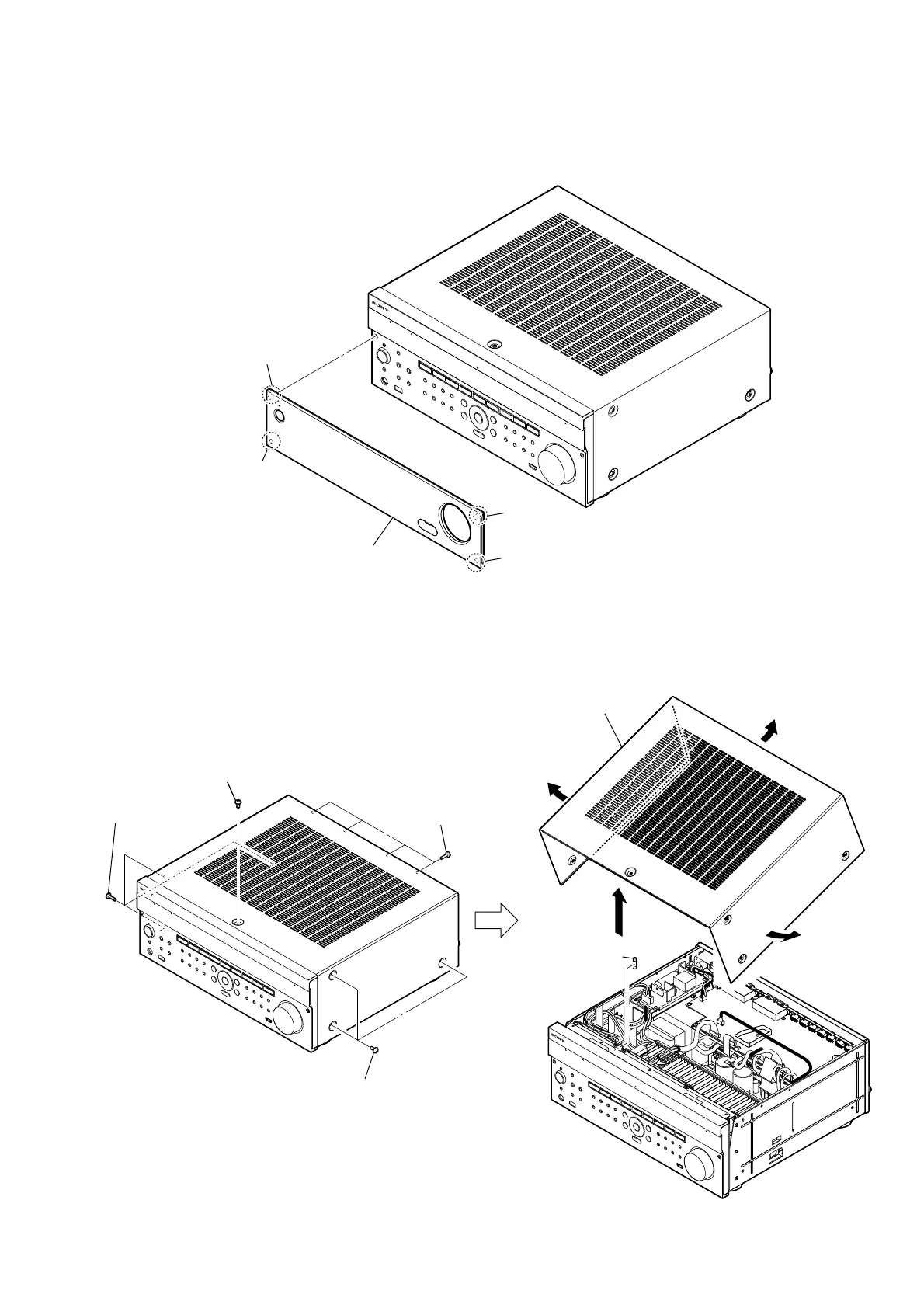

2-2. FRONT COVER ASSY
2-3. CASE, FUSE (F01)
3 front cover assy
2 boss
2 boss
1 magnet
1 magnet
1 three screws
(BVST4 u 8)
1 three screws
(BVST4 u 8)
3
3
4
5
6 case
2 four screws
(BTP) (DIA. 3) (BZN-N)
2 screw
(BTP) (DIA. 3) (BZN-N)
7
fuse (F01)
