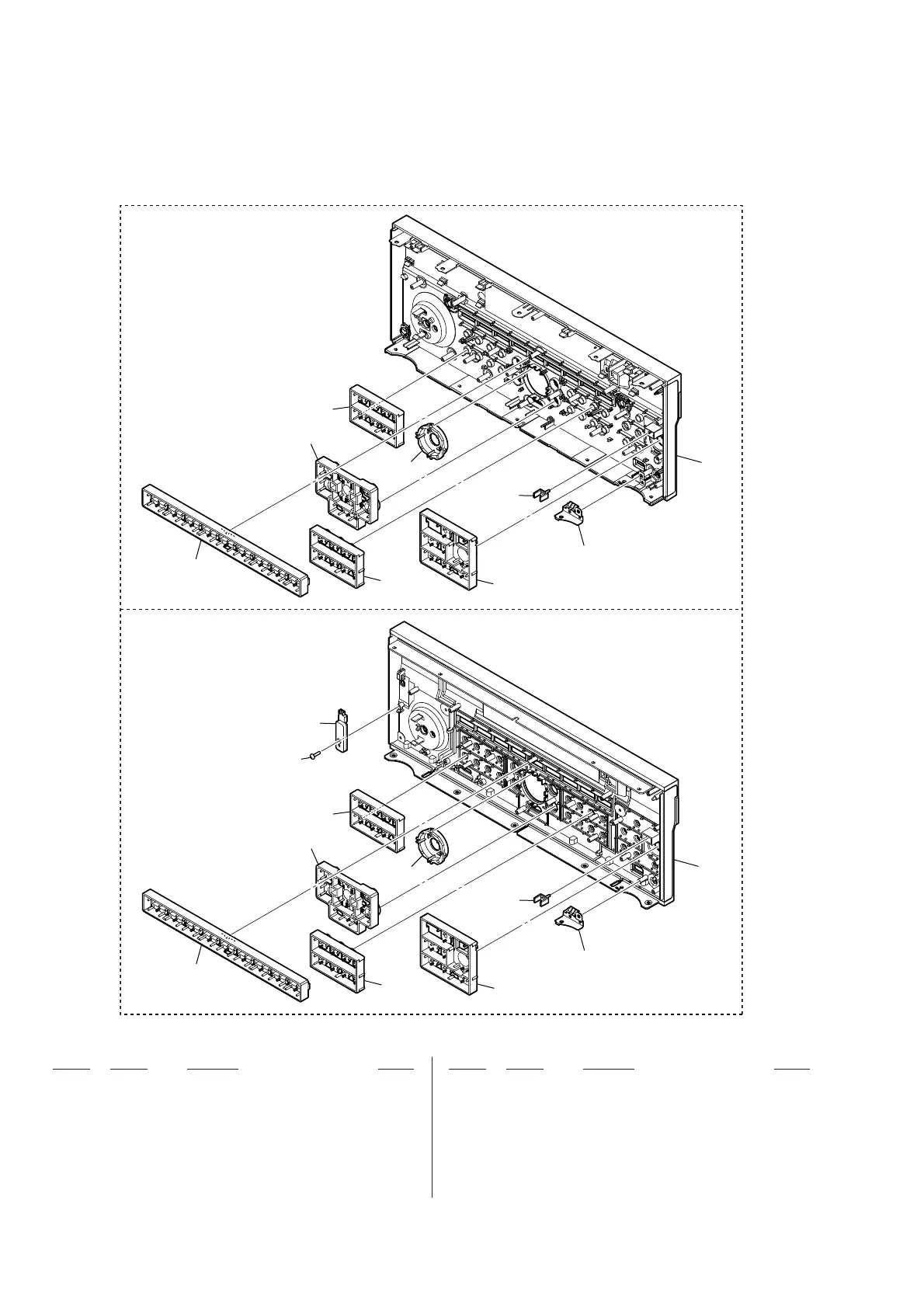

7-4. FRONT PANEL SECTION
• Rear view
151 4-534-376-01 BUTTON, FUNCTION (BD/DVD, SAT/CATV,
GAME, STB, VIDEO, AUX, TV, SA-CD/CD, TUNER)
152 4-534-377-01 BUTTON, MODE
153 4-534-378-02 BUTTON, POWER
154 4-534-379-01 BUTTON, ENTER (DISPLAY, AMP MENU,
RETURN, OPTIONS, ENTER, HOME)
155 4-534-380-01 BUTTON, CURSOR (V, B, b, v)
156 4-534-381-01 INDICATOR, POWER
157 4-544-973-01 COVER (HOLE) (ZA2000ES/ZA3000ES)
158 3-087-053-01 +BVTP2.6 (3CR) (ZA2000ES/ZA3000ES)
159 A-2058-792-A PANEL ASSY (ZA3000) (SERVICE) (ZA3000ES)
159 A-2058-793-A PANEL ASSY (ZA2000) (SERVICE) (ZA2000ES)
159 A-2067-029-A PANEL (ZA1000_SV) ASSY, FRONT (for SERVICE)
(ZA1000ES)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(ZA2000ES/ZA3000ES)
(ZA1000ES)
not supplied
159
151
154
155
156
152
158
157
not supplied
159
151
152
153
154
155
156
152
152
153
