Sony STR-ZA2000ES - AMP Board Block-1

STR-ZA1000ES/ZA2000ES/ZA3000ES
25

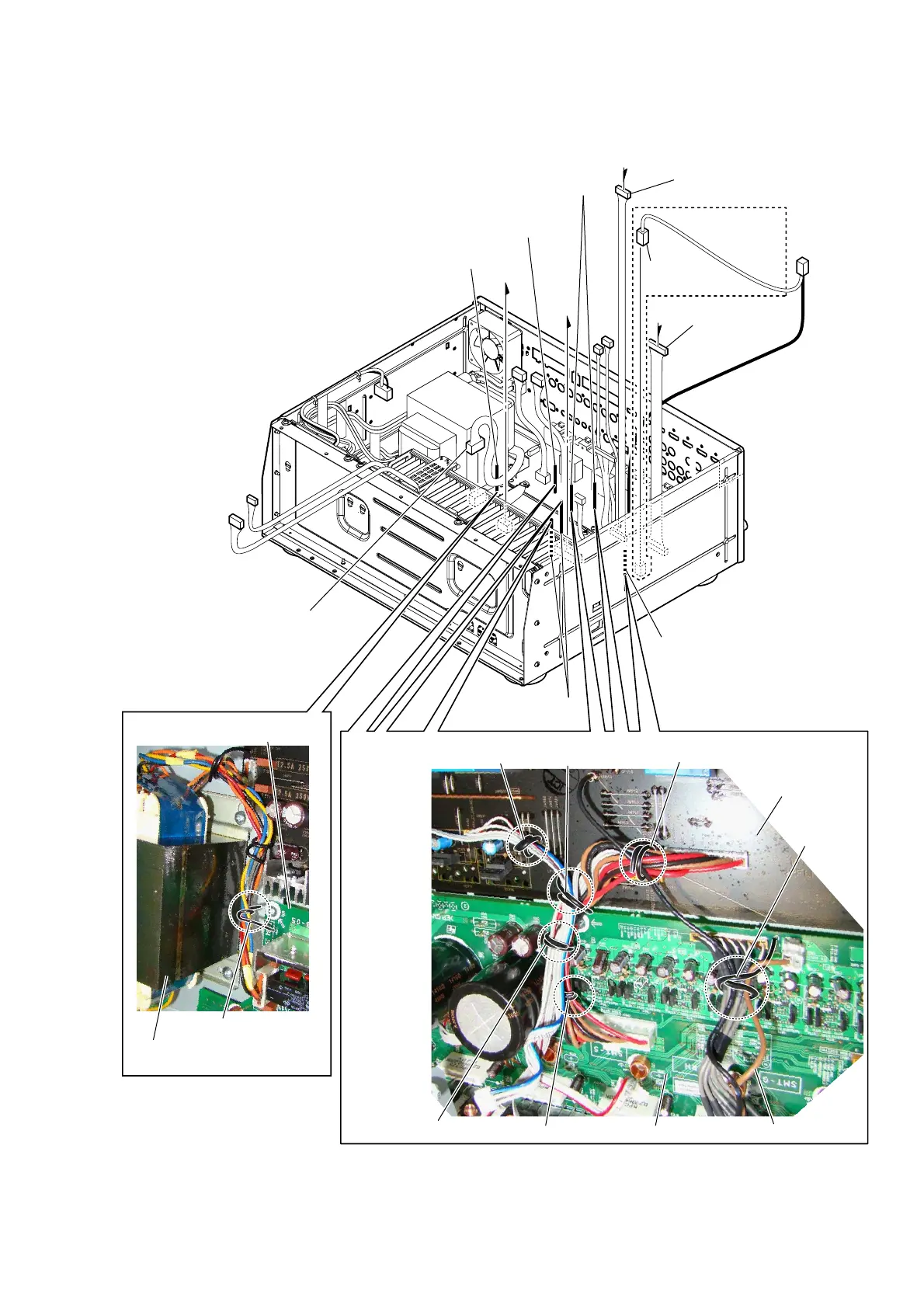

2-22. AMP BOARD BLOCK-1
3 Remove the wire
from the lead pin.
3 Remove the wire
from the lead pin.
1 Remove the wire
from the lead pin.
3 Remove the wires
from two lead pins.
A
B
B
A
(ZA3000ES)
4
connector
(CN550)
6
connector
(CN521)
2
connector
(CN901)
5
connector
(CN921)
3 Remove the wires
from two lead pins.
:LUHVHWWLQJ
AMP board
SPTM board
lead pin
lead pin
lead pin
lead pin
lead pin
lead pin
:LUHVHWWLQJ
lead pin
power transformer
(T01)
AMP board
Brown wire is ZA3000ES only.
