Command Descriptions
3-88
VX4792 User Manual

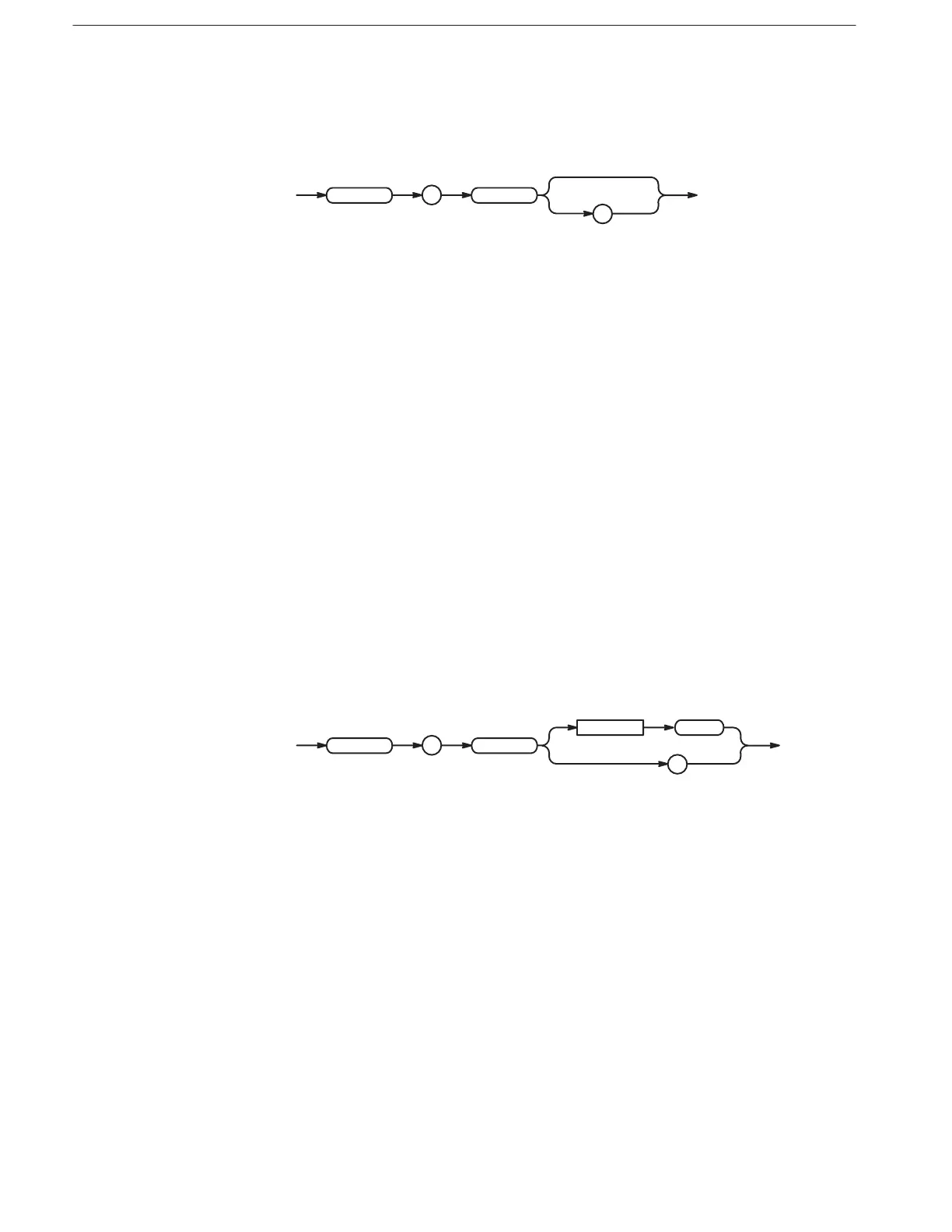

WFMPre:NR_PT
WFMPre:NR_PT?
NR_PT
?
:
WFMPre
None; the waveform generator sets the size of the waveform automatically
WFMPre:NR_PT?
might return :WFMPRE:NR_PT 131072.
WFMPre:PT_FMT (?)
The WFMPre:PT_FMT command selects the data point format of the waveform.
The WFMPre:PT_FMT? query returns the data point format currently selected.
WAVEFORM
WFMPre:PT_OFF, WFMPre:XINCR, WFMPre:XMULT, WFMPre:XZERO, WFMPre:XOFF,
WFMPre:YMULT, WFMPre:YZERO, WFMPre:YOFF
WFMPre:PT_FMT Y
WFMPre:PT_FMT?
PT_FMT
?
<Space>
:
WFMPre
Y
Y — explicitly transmits Y values; absolute X and Y component values are
calculated for each data point using the the transmission sequence yn, yn+1,
yn+2 ...
where
Xn = <XZEROĆvalue> + <XINCRĆvalue> (n - <PT_OFFĆvalue>)
and
Yn = <YZEROĆvalue> + <YMULTĆvalue> (yn - <YOFFĆvalue>)
Any argument other than Y (the default) is ignored.
:WFMPRE:PT_FMT?
might return :WFMPRE:PT_FMT Y.
Syntax
Arguments
Examples
Group
Related Commands
Syntax
Arguments
Examples
