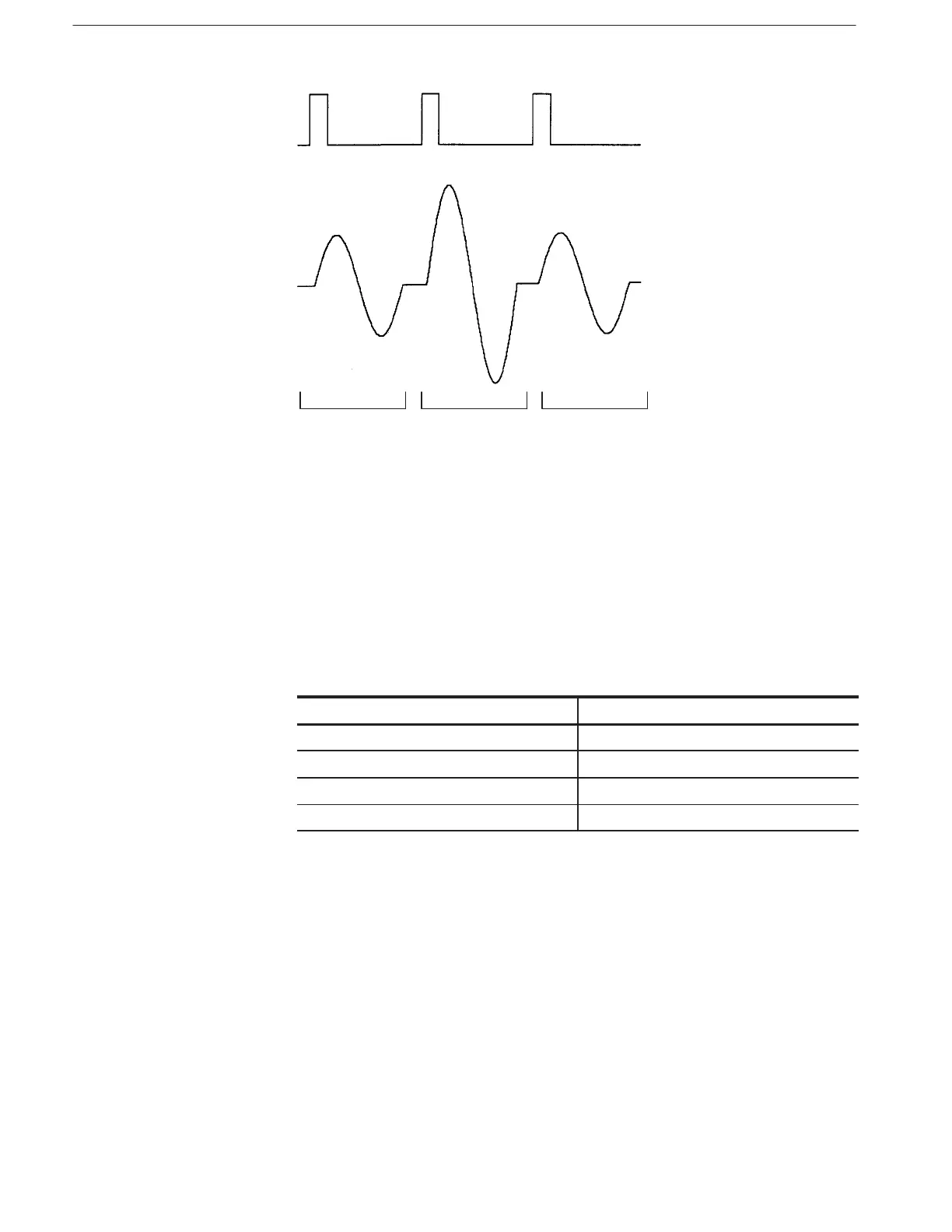

Figure 2-6: Sequence Output in Autostep Mode
Sequence Control
The sequence control system consists of sequence memory that stores the
contents of sequence control, and the counters that read out the contents and
output the actual waveform memory addresses. Table 2–2 lists an example
sequence file.
Table 2-2: An Example Sequence File (XXX.SEQ)
Waveform File Name Repetition Count
 
 
 
 
For the file XXX.SEQ, the VX4792 Arbitrary Waveform Generator will store the
following data in memory:
H AAA.WFM actual addresses, AAA.WFM data length, looping counter
value: 3
H BBB.WFM actual addresses, BBB.WFM data length, looping counter
value: 16
