Functional Overview
2-6
VX4792 User Manual
  
 

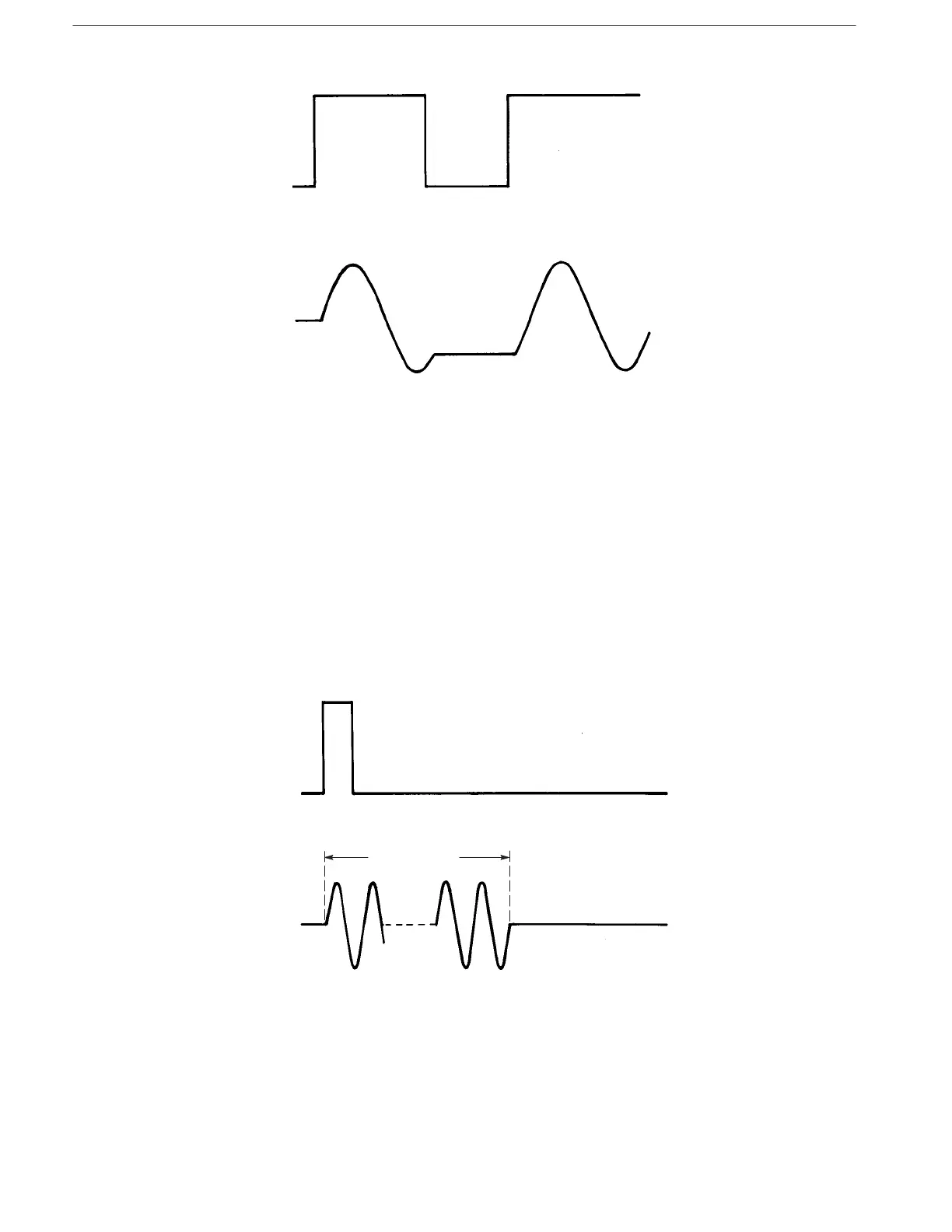

Figure 2-3: External Gate Signal and Waveform Output in Gated Mode
Use burst mode to produce a specified number of waveform cycles or sequence
repetitions. In burst mode, the waveform generator waits for a trigger. On
receiving a trigger, the waveform generator generates the specified waveform or
sequence until the output signal reaches the burst count (set the count with the
  command, see page 3–57). The trigger can be an external signal or a
 command. The waveform generator ignores any trigger signals during
waveform output.
Figure 2–4 shows the relationship between an example output waveform and
trigger signal (positive slope) in burst mode.
  
 
 
Figure 2-4: Waveform Output in Burst Mode
Burst Mode
