Sony Tektronix VX4792 - Figure 2-22: Equation Using Ln; Figure 2-23: Equation Using Sqrt

Functional Overview
2-24
VX4792 User Manual
+1.0
-1.0
Equation: range(0,100ms)<LF>ln(2*(x+0.2))
1000 Points ; Clock 1e+07 Hz

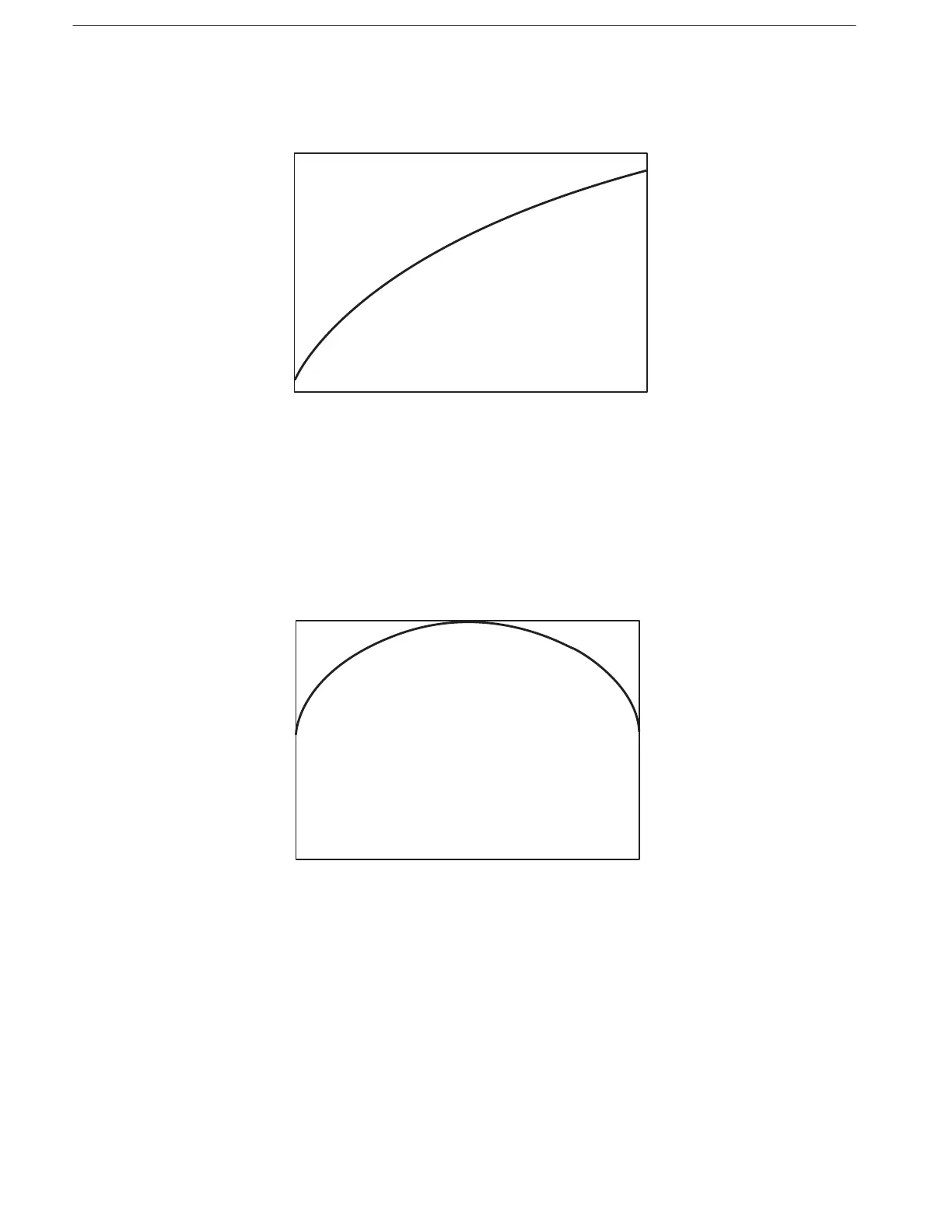

Figure 2-22: Equation Using Ln
+1.0
-1.0
Equation: range(0,100ms)<LF>sqrt(sin(pi*x))
1000 Points ; Clock 1e+07 Hz
Figure 2-23: Equation Using Sqrt
