Sample Waveform Library
D-18
VX4792 User Manual
Pulse Width Modulated Signal
To Pulse Width Modulated Signal has the following characteristics:
H Waveform points: 1024
H Clock frequency: 1 MHz
H Output parameters: Filter Through
H Equation: range(0,1024ms)<LF>–1<LF>range(0,16ms)<LF>v+2<LF>
range(32ms,50ms)<LF>v+2<LF>range(64ms,84ms)<LF>v+2<LF>
range(96ms,118ms)<LF>v+2<LF>range(128ms,152ms)<LF>v+2<LF>
range(160ms,186ms)<LF>v+2<LF>range(192ms,220ms)<LF>v+2<LF>
range(224ms,254ms)<LF>v+2<LF>range(256ms,318ms)<LF>v+2<LF>
range(320ms,348ms)<LF>v+2<LF>range(352ms,378ms)<LF>v+2<LF>
range(384ms,408ms)<LF>v+2<LF>range(416ms,438ms)<LF>v+2<LF>
range(448ms,468ms)<LF>v+2<LF>range(480ms,498ms)<LF>v+2<LF>
range(512ms,528ms)<LF>v+2<LF>range(544ms,558ms)<LF>v+2<LF>
range(576ms,589ms)<LF>v+2<LF>range(608ms,618ms)<LF>v+2<LF>
range(640ms,648ms)<LF>v+2<LF>range(672ms,678ms)<LF>v+2<LF>
range(704ms,708ms)<LF>v+2<LF>range(736ms,738ms)<LF>v+2<LF>
range(800ms,802ms)<LF>v+2<LF>range(832ms,836ms)<LF>v+2<LF>
range(864ms,870ms)<LF>v+2<LF>range(896ms,904ms)<LF>v+2<LF>
range(928ms,938ms)<LF>v+2<LF>range(960ms,972ms)<LF>v+2<LF>
range(992ms,1006ms)
.......
.......
.......
.......
............................
.......
....... .......

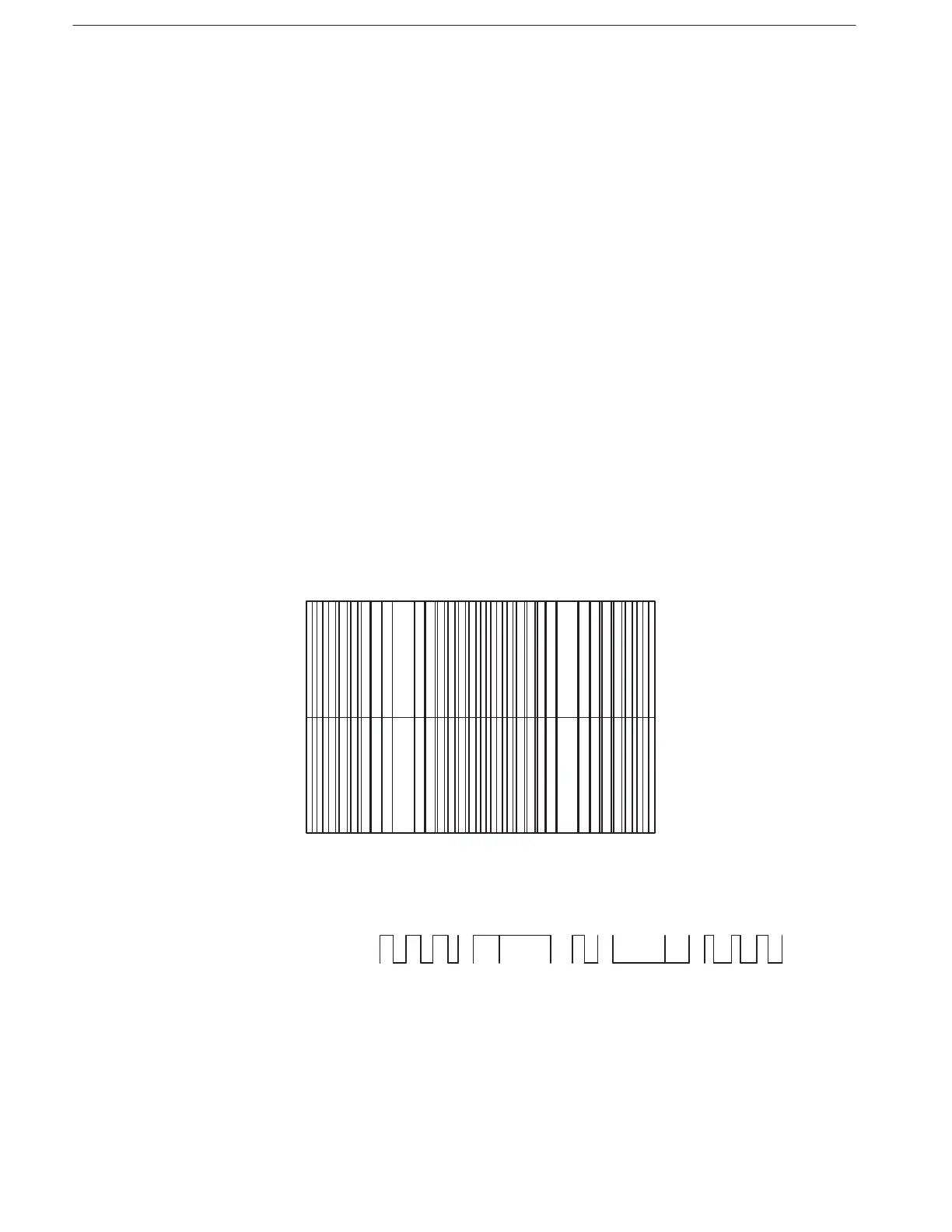

Figure D-16: Pulse Width Modulated Signal
