Performance Verification
F-20
VX4792 User Manual

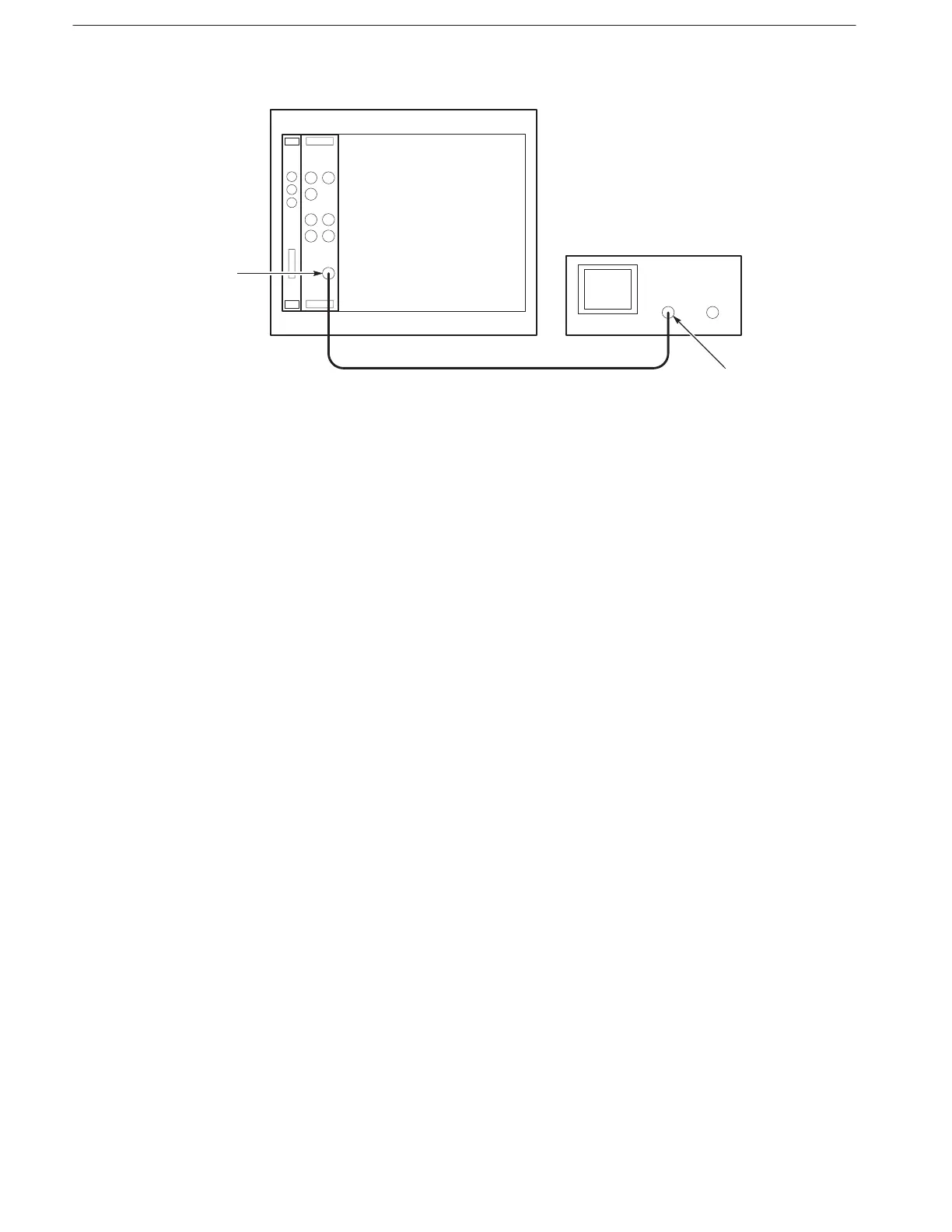

Figure F-9: Waveform Advance Mode Initial Test Setup
b. Set oscilloscope controls:
Vertical CH1
CH1 coupling DC
CH1 0.2 V/div
CH1 input impedance 50 W
Horizontal
Sweep 5 ms/div
Trigger
Source CH1
Coupling DC
Slope Positive
Level 0 V
Mode Auto
2. To set the VX4792 Arbitrary Waveform Generator controls and select the
waveform file, type:
3. To check waveform advance, repeatedly type:
Check that the oscilloscope displays a continuous sine wave that switches
between two frequencies each time you send the command.
4. End procedure: Disconnect the oscilloscope.
