Performance Verification
VX4792 User Manual
F-29
VX4792
WAVEFORM
OUTPUT
Precision
Termination
–
+
Digital Multimeter
Dual Banana to
BNC Adapter

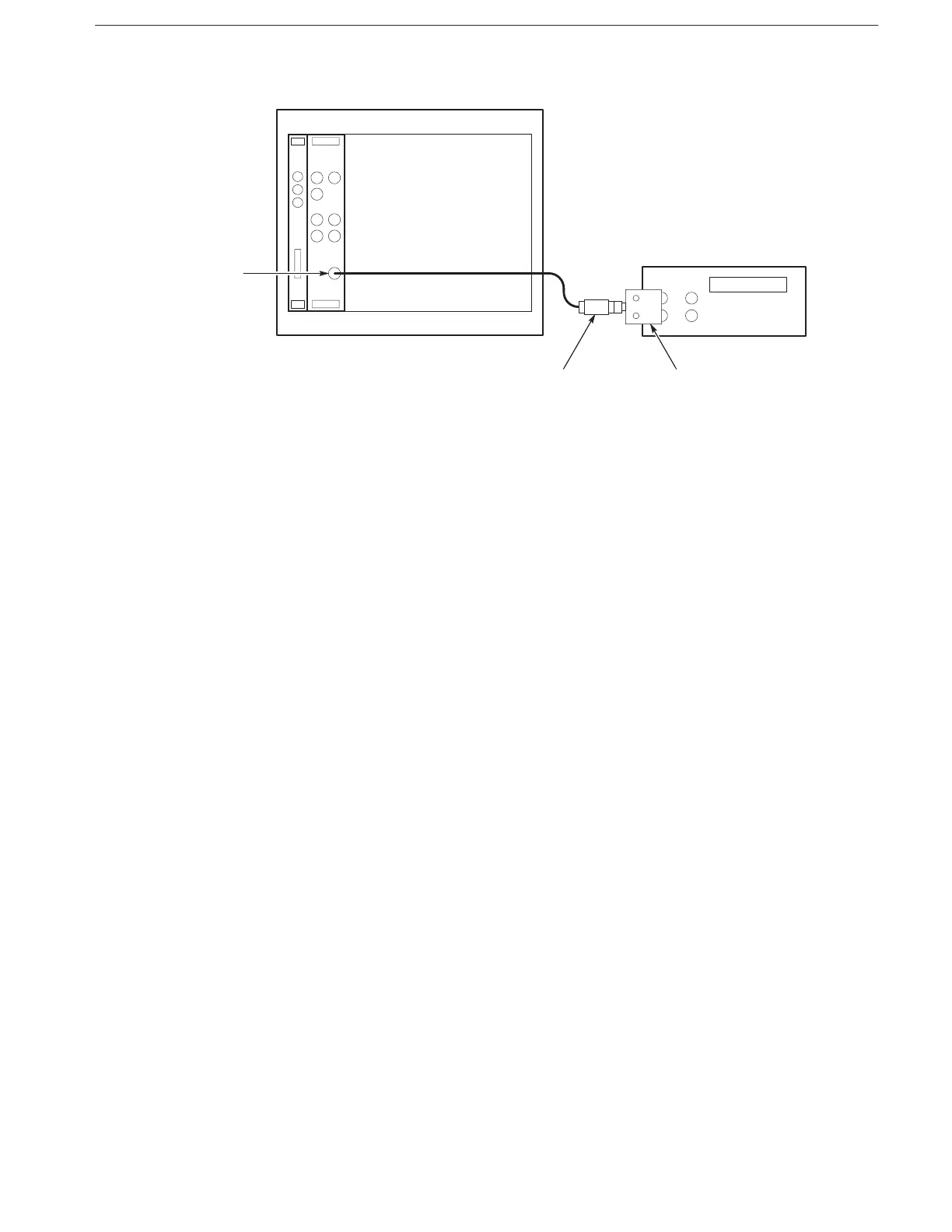

Figure F-14: Gain Accuracy Initial Test Setup
2. To set the VX4792 Arbitrary Waveform Generator controls and select the
waveform file, type:
  
  
3. Check gain accuracy: Check the DMM for between +0.24375 V and
+0.25625 V.
4. To set the VX4792 Arbitrary Waveform Generator controls and select the
waveform file, type:
  
5. Check gain accuracy: Check the DMM for between –0.24375 V and
–0.25625 V.
6. To set the VX4792 Arbitrary Waveform Generator controls and select the
waveform file, type:
  
7. Check gain accuracy: Check the DMM for between +2.45 V and +2.55 V.
8. To set the VX4792 Arbitrary Waveform Generator controls and select the
waveform file, type:
  
9. Check gain accuracy: Check the DMM for between –2.45 V and –2.55 V.
10. End procedure: Retain the test setup and control settings.
