Space ER232R - Page 5

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 5 of 58
11
1
2
3
4
5
6
7
9
10
12
13
1614
15
11
8
1296-M010-0_P
Space s.r.l.
ER232R - ER234R - ER236R - ER238R - ER238RFM - ER248R - ERP248R
KEY

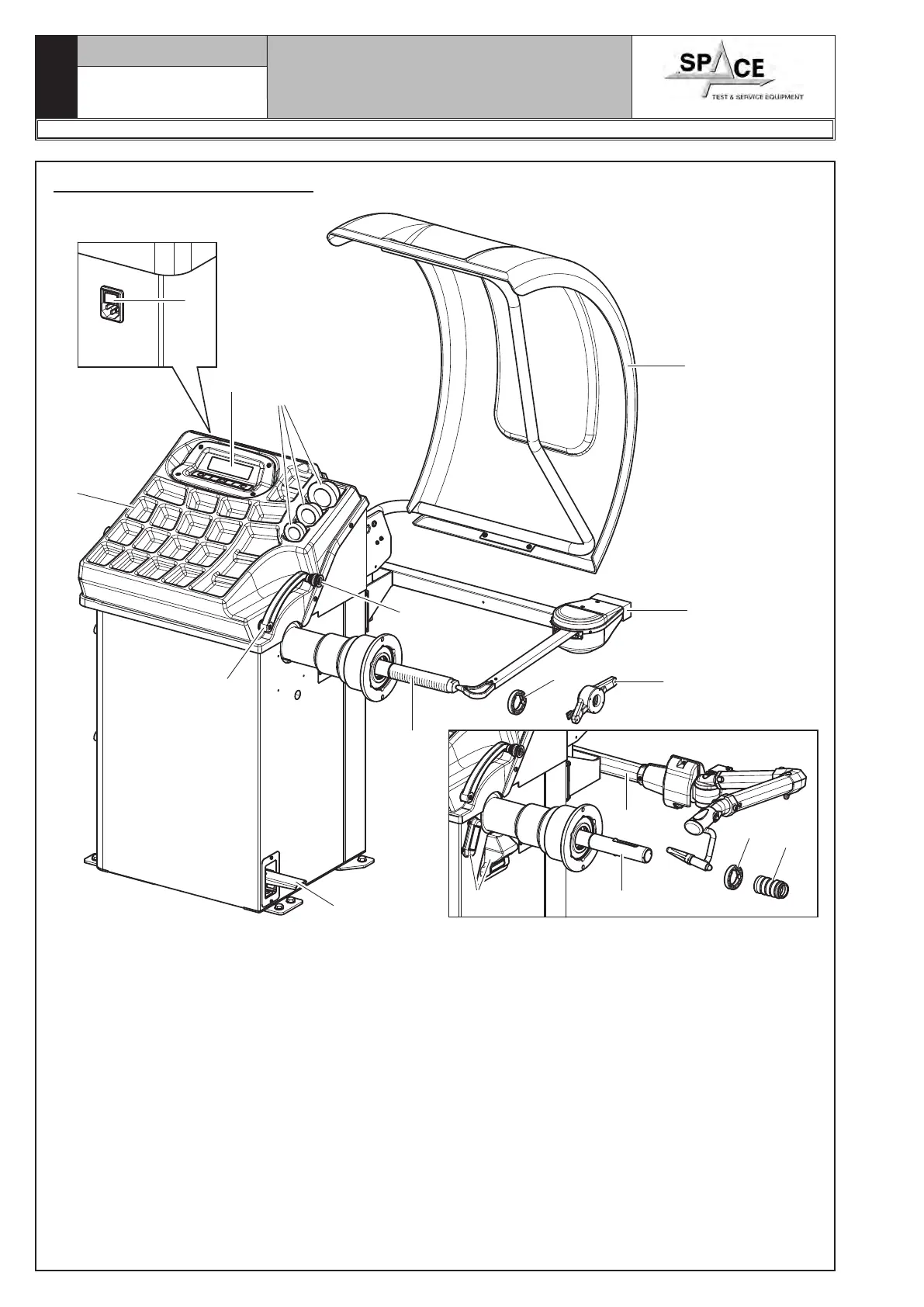

1 – Weight holding bridge
2 – LCD display/control panel
3 – Distance caliper
4 – Threaded mandrel (only for ER248R model)
5 – Protection guard
6 – Foot brake / foot brake + mandrel opening/closing control (models ERP248R only)
7 – Main switch
8 – Lock bush (only for ERP248R models)
9 – Rapid ring nut (only for ER248R model)
10 – GAR266 automatic external data gauge (optional)
11 – Pusher ring
12 – Grippers for weight fitting
13 – Cones
14 – Fixed laser + led light (optional)
15 – GAR264 automatic external data gauge (optional)
16 – Pneumatic mandrel (only for ERP248R model)
Fig. 2 - ER248R - ERP248R
