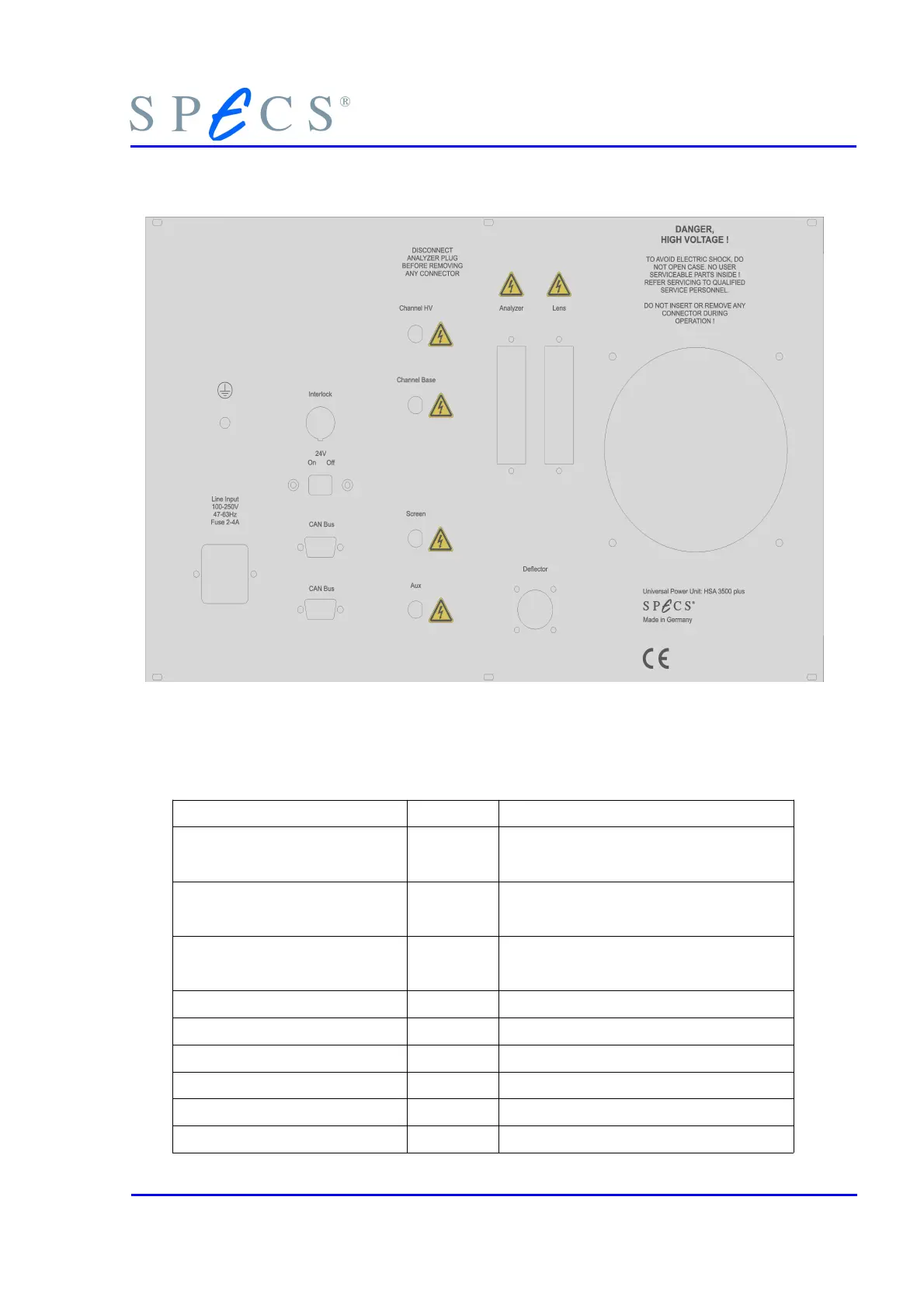

SPECS HSA3500 - Figure 5: HSA3500 Plus Back Panel

Figure 5: HSA3500 plus back panel
Label Type Description
Channel HV SHV Connection to electron multiplier out-
put (detector andode)
Channel Base SHV Connection to electron multiplier input
(detector cathode)
Screen or DLD SHV Connection to detector (CCD, DLD
only)
Mesh or Aux SHV Connection defined by user
Line Input 3pin Input for power cord
Interlock 3pin Interlock connector
Sliding Switch Activate the 24V on CAN-Bus connector
CAN BUS Sub-D 9pin Connection to CAN-Bus (Male)
CAN BUS Sub-D 9pin Connection to CAN-Bus (Female)
HSA3500 / HSA3500 plus Power Supply 9
