Deflector 6 pin Connection to deflector (optional)
analyzer 30pin Connection to analyzer (Phoibos)
Lens 30pin Connection to lens (Phoibos)
Fan Cooling the unit
Grounding Screw 1pin Connection to ground
Table 5: HSA3500 plus back panel description
1.8 General Internal Layout

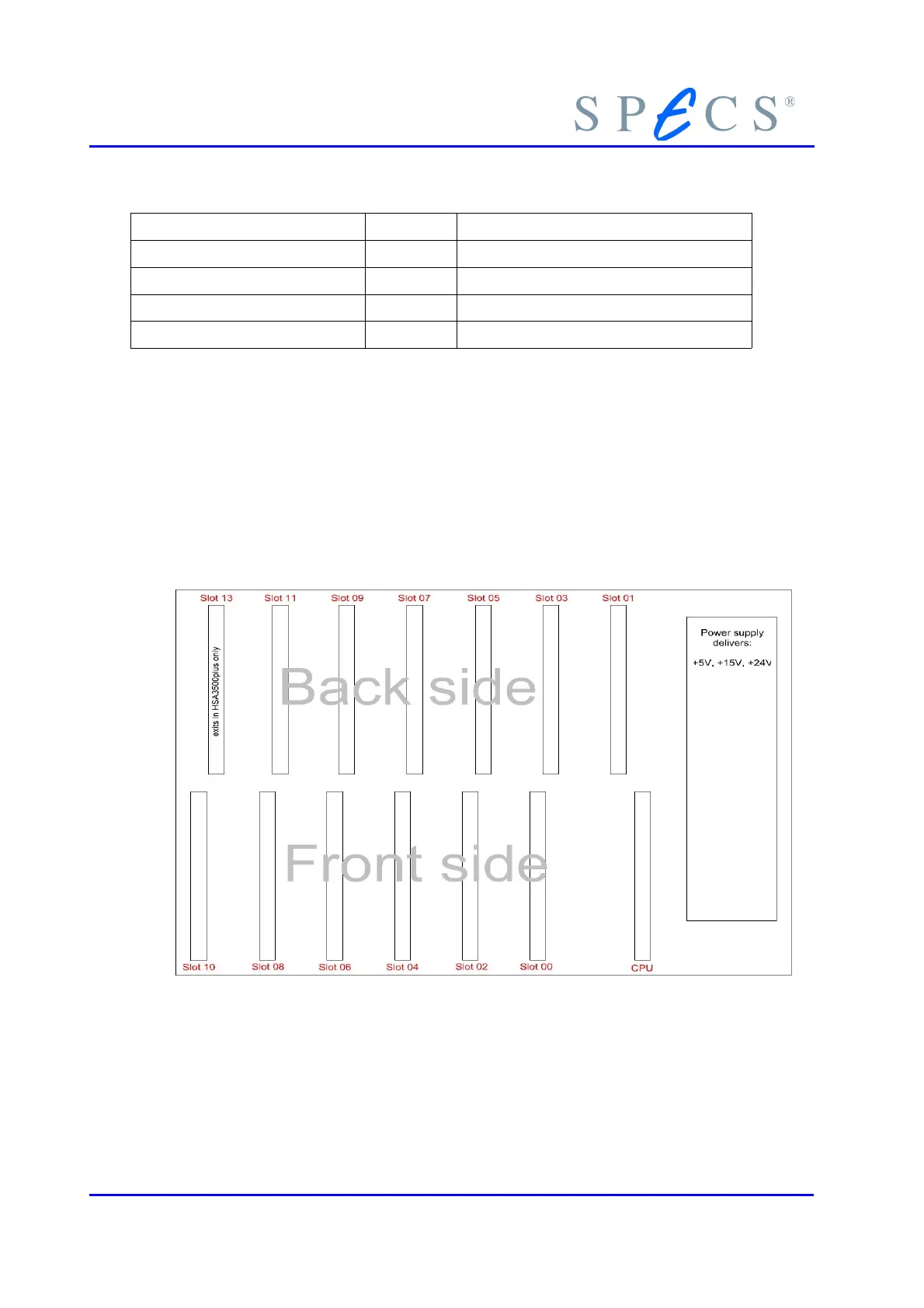

In Figure 6 you can see the general internal layout of the HSA. At the front side you
have the even slot numbers and on the back side you have the odd slot numbers. The
slot configuration depends on hardware and wiring type. For details see Table 42 in
the Appendix.
Figure 6: HSA General Internal Layout
10 HSA3500 / HSA3500 plus Power Supply
