12 Pin 30-Pin Lens
1 C3
4 C7
9 A9
10 A5
11 C9
Table 44: Analyzer connector

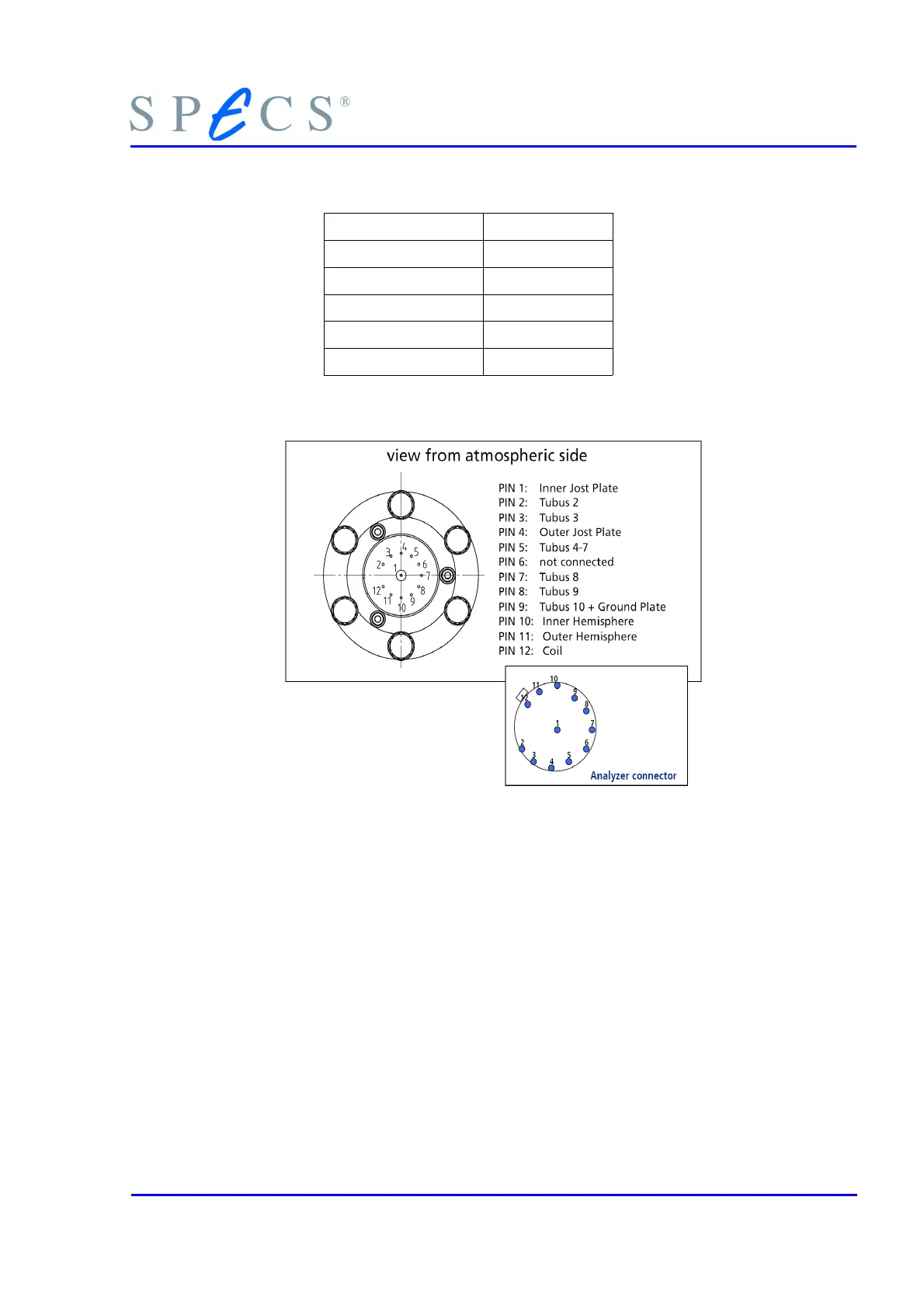

Figure 36: Schematics of the 12-pin analyzer feedthrough
4.5 HSA3500 Tool
Warning!!
When using this program, it is possible for the unit to switch on dangerous High
Voltage. This voltage can also be present at the connector terminals of the back
plate of the Unit (HV Meter Connector, HV BNC Connector). It is therefore very im-
portant to not connect cables or make any contact (touching or otherwise) whatso-
HSA3500 / HSA3500 plus Power Supply 71
