1.3.5 Sample chamber - additional components

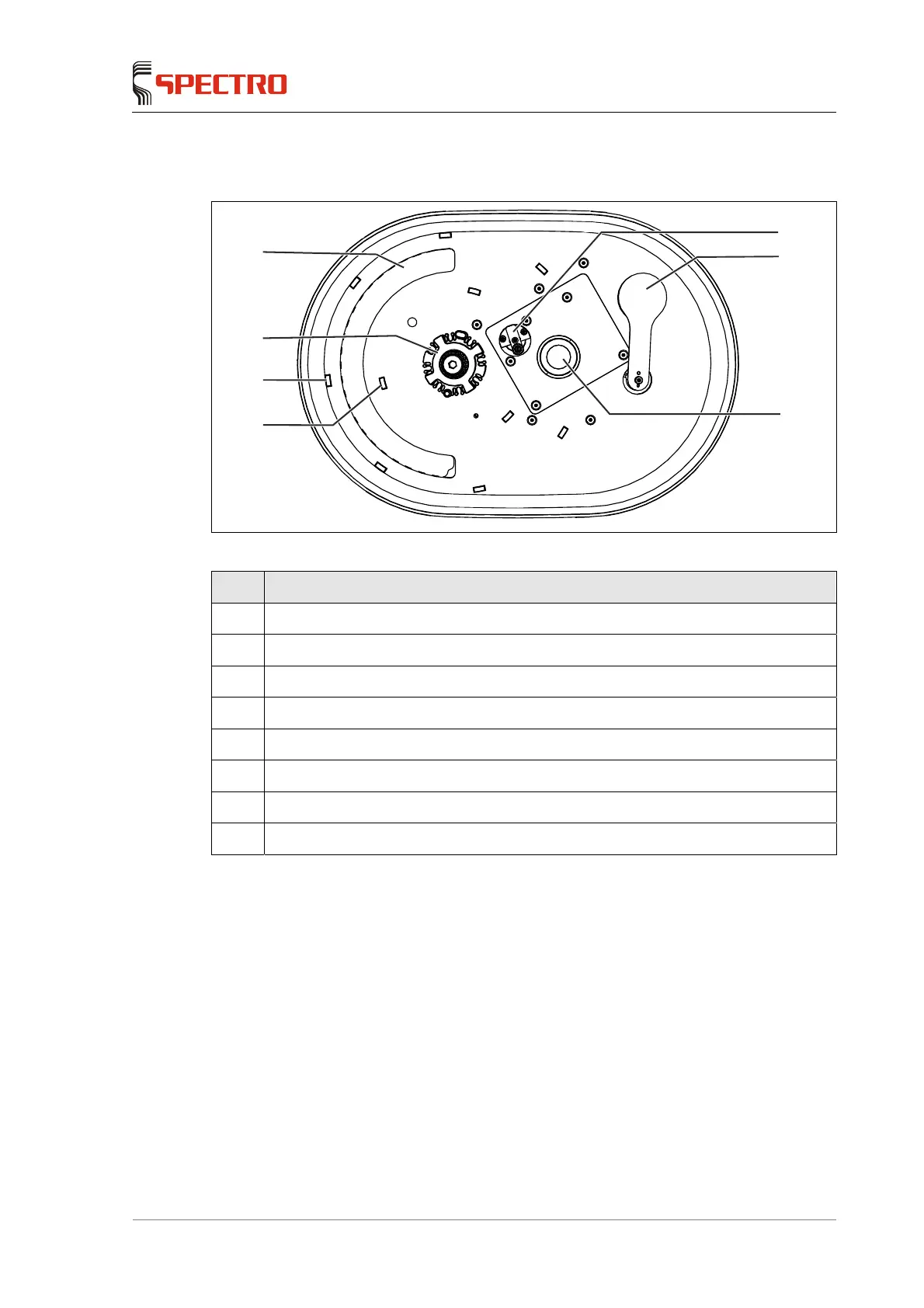

Fig. 5
No. Component
1 Sample tray support
2 Discharge reservoir
3 Sample spinner drive (optional)
4 Dust protection shutter or beam stabilization vacuum shutter (optional)
5 Active pile-up suppression (optional)
6 Tray pad (3 pcs. Installed inside)
7 Tray pad rotation tray (7 pcs., installed outside)
Single sample rotation unit (optional), (not shown for clarity)
1.3.6 Sample tray
The sample trays come in different versions.
 12 sample positions for Ø 40 mm samples with an adapter for Ø 32 mm
samples
 25 sample positions for Ø 20 mm samples
 8 sample positions for rotating samples for Ø 40 mm samples or
6 sample positions for rotating Ø 52 mm samples
