1.3.3 Instrument (back)

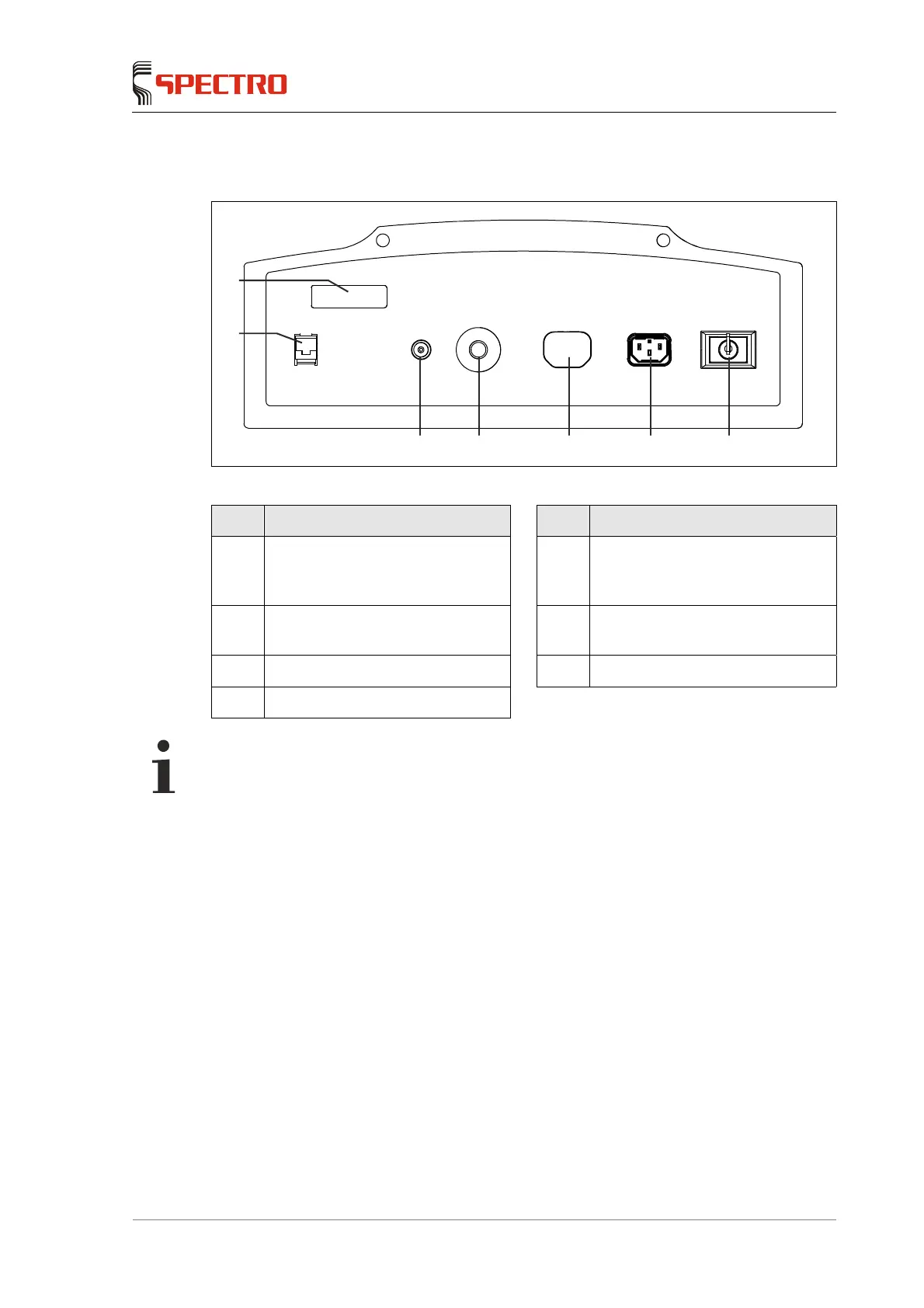

Fig. 3: Rear view
No. Component No. Component
1 Type plate with serial number,
date of production, max.
parameters of the X-ray tube
5 Power supply connection for
vacuum pump (1000 W max.)
2 PC/Ethernet conviction (using the
LAN cable included in delivery)
6 Power In (max. 1200 W)
3 Helium supply line connection 7 Key-operated switch On/Off
4 Vacuum hose connection
Note
Set up the instrument to ensure the power isolators (switches and power cable)
can be easily reached.
1
3
2
45
6
7
