QA BEAMCHECKER™ PLUS 43
If data has been acquired in the Real-Time Operation mode, it is already part of the database
and ready to view. However, if data was acquired using the Wire-Free mode, it will need to be
downloaded from the QA BeamChecker Plus.
NOTE: Once data is part of the database, there is no differentiation between data acquired in
Wire-Free or Real-Time Operation modes.
8.1 Downloading Measurements from Wire-Free Mode
To download data from the QA BeamChecker Plus unit after a Wire-Free data acquisition,
follow these steps:
1. Place the QA BeamChecker Plus on the Power/Data Cradle while connected to the PC or
connect the QA BeamChecker Plus to the PC directly.

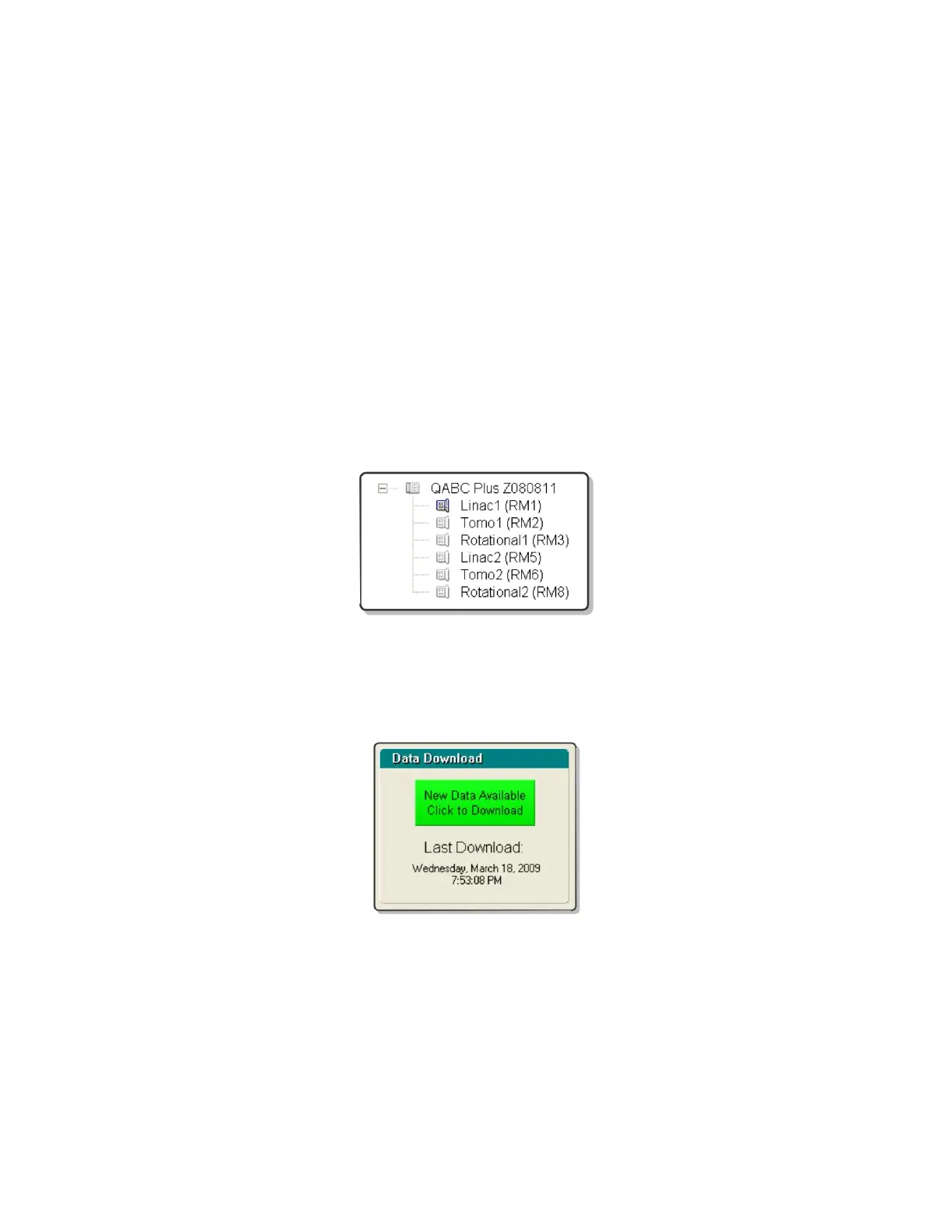

2. Ensure the appropriate database is loaded within the Communication Software and select
the desired treatment room from the left side browser pane.
3. Click the Data View tab at the bottom of the screen.
4. The Connection Status indicator will show green and become enabled indicating that new
data is available for download.
Click it to download data from the QA BeamChecker Plus to the database file.
5. Once completed, a download summary window appears showing all new measurement
data organized by room. In the upper right corner of this window, a total of unidentified
measurements is also displayed. This number corresponds to the number of measurements
that prompted the XXX error (unidentified energy).
