Steca Tarom 4545 - Page 17

17
DE
4. Terminate the free ‘StecaLink slave’ connection of the last slave member using the terminati-
on plug.

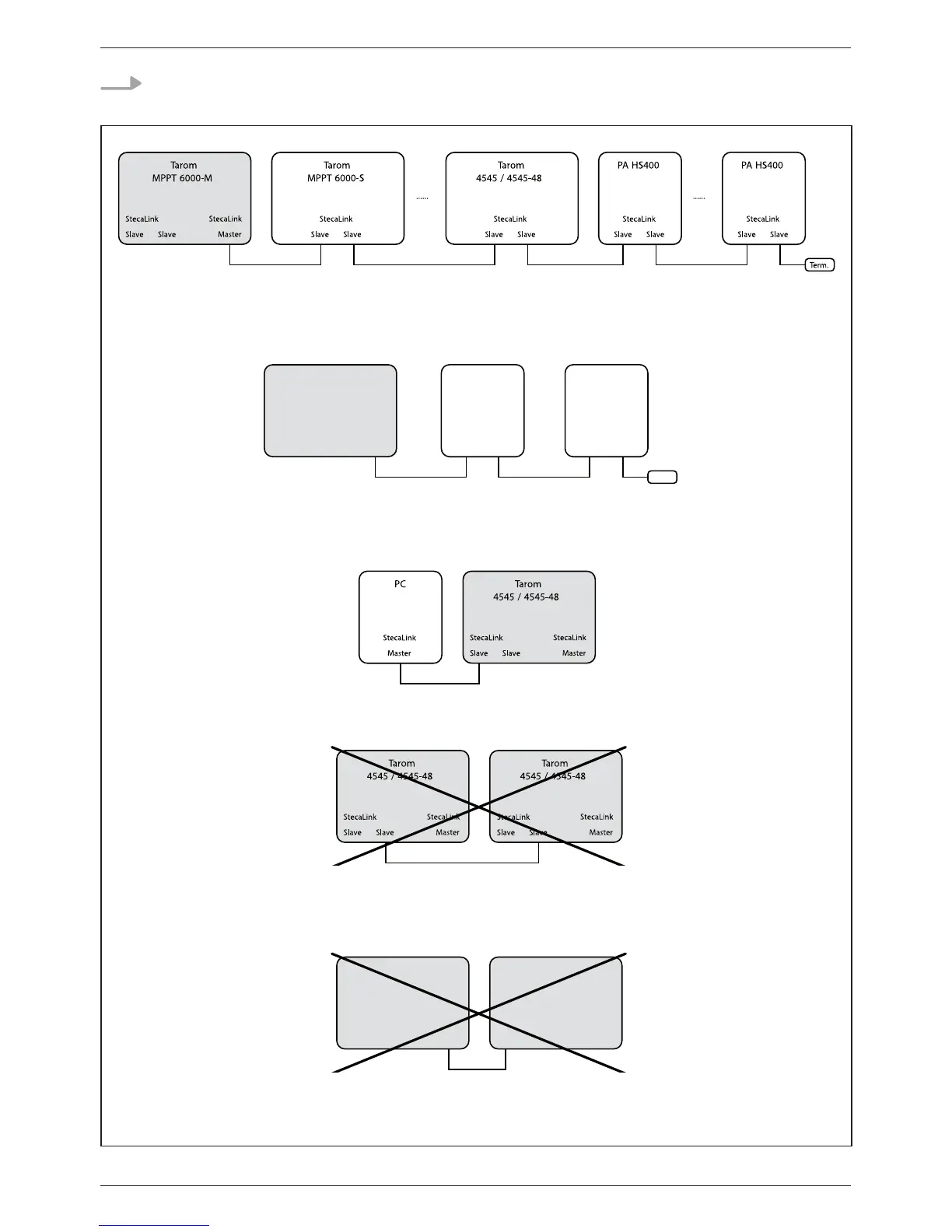

Fig. 2 Bus cabling example using an MPPT 6000-M, MPPT 6000-S, one Tarom 4545/4545-48
and PA HS400 current sensors
Fig. 3 Bus cabling example using one Tarom 4545/4545-48 and one or more PA HS400
current sensors
Fig. 4 Example of connecting a PC to the Tarom 4545/4545-48, e.g. for the update function
Fig. 5 The connection of Tarom 4545/4545-48 slave connection to other Tarom 4545/4545-48
slave connections, other charge controllers or PA HS400 without master is not permitted
Fig. 6 The connection of Tarom 4545/4545-48 master connection to other Tarom 4545/4545-48
slave connections is not permitted
Tarom
4545 / 4545-48
StecaLink
Slave Slave
StecaLink
Master
PA HS400
StecaLink
Slave Slave
......
PA HS400
StecaLink
Slave Slave
Term.
Tarom
4545 / 4545-48
StecaLink
Slave Slave
StecaLink
Master
Tarom
4545 / 4545-48
StecaLink
Slave Slave
StecaLink
Master
