Operation & Service Manual (VA) 35 ST1175

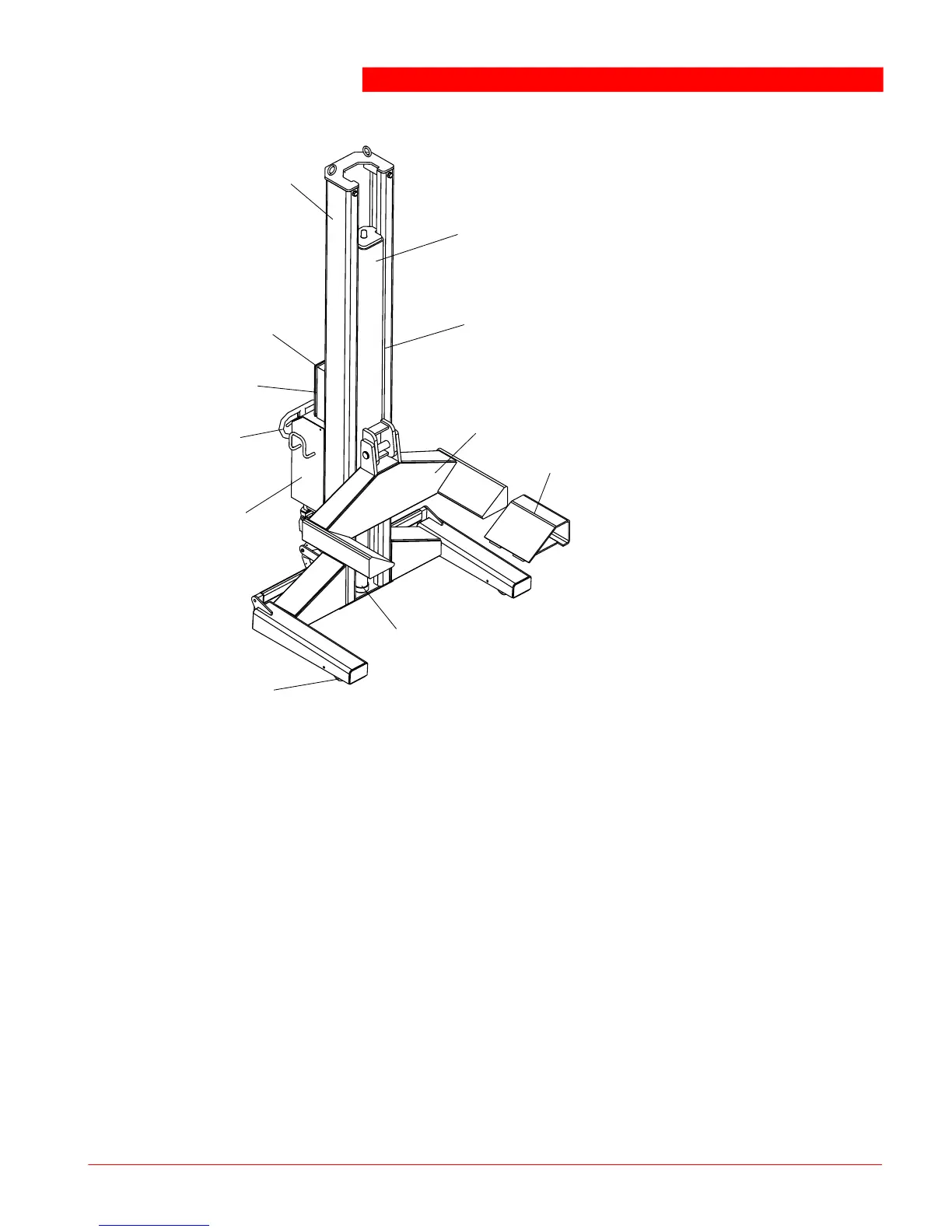

1. Locking feature (behind)
2. Guide block
3. Lifting fork
4. Wheel adaptor
5. Cylinder
6. Retractable wheels
7. Hydraulic unit
8. Pallet lifting mechanism
9. Electrical connector
10. Control box
11. Column
Main components of mobile column lift
The power supply is connected to the master column. The main column and the
slave columns are linked to each other in such a way using connectors that they
form a closed ring circuit. All power requirements and control signals are fed via
the connecting cables.
4.4 Control system
The control system on the columns ensures that raising and lowering of the
column lifts is simultaneous and synchronized, independent of the load distribution
on the columns.
