4.2 MECHANICAL ADJUSTMENT OPTIONS
4.2.1 Lower leg rest (LR)

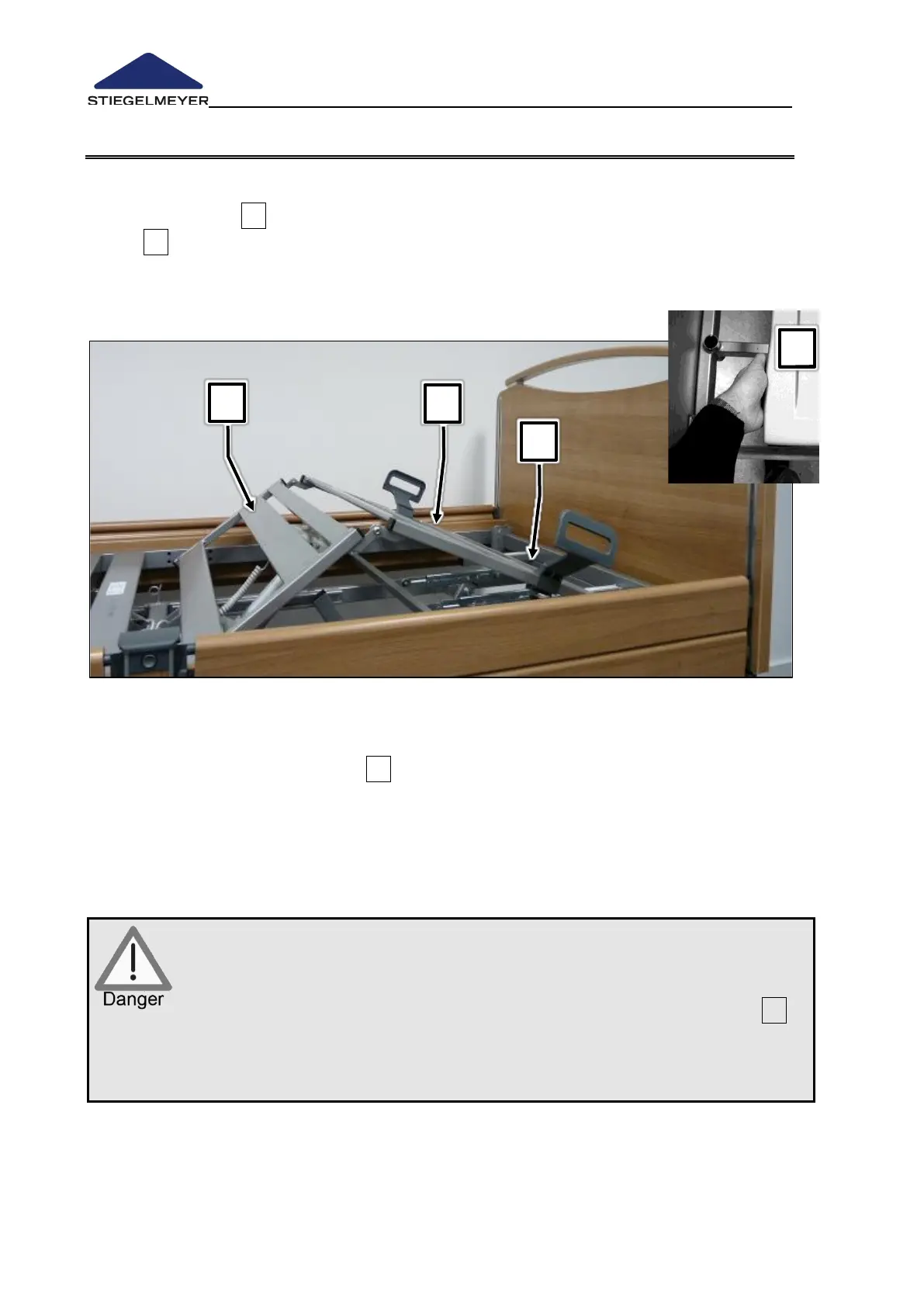

The lower leg rest 1 can be raised and lowered manually when the thigh rest is
raised 2 .
It is possible to adjust the bed to an orthopaedic (stepped bed) position or so that the
lower leg rest is sloping downwards.
Manually adjusting the lower leg rest (LR)
Raise the thigh rest using the handset.
Lift the lower leg rest by its frame 3 to the desired position and let go of it slowly.
• The lower leg rest engages automatically.
If necessary, correct the bed position using the handset (thigh rest button).
Manually lowering the lower leg rest
Pay attention to the order of the operating instructions!
• Raise the lower leg rest until it reaches the upper limit stop on the frame.
• Then lower the lower leg rest slowly.
• Risk of crushing! Hold the lower leg rest only at the place indicated 3 .
There is a risk of injury occurring if the lower leg rest falls
unchecked.
