Stiegelmeyer Libra - Comfort Mattress Base - 100 CM Width (Optional)

Instruction Manual for Libra Care Bed
Page 78

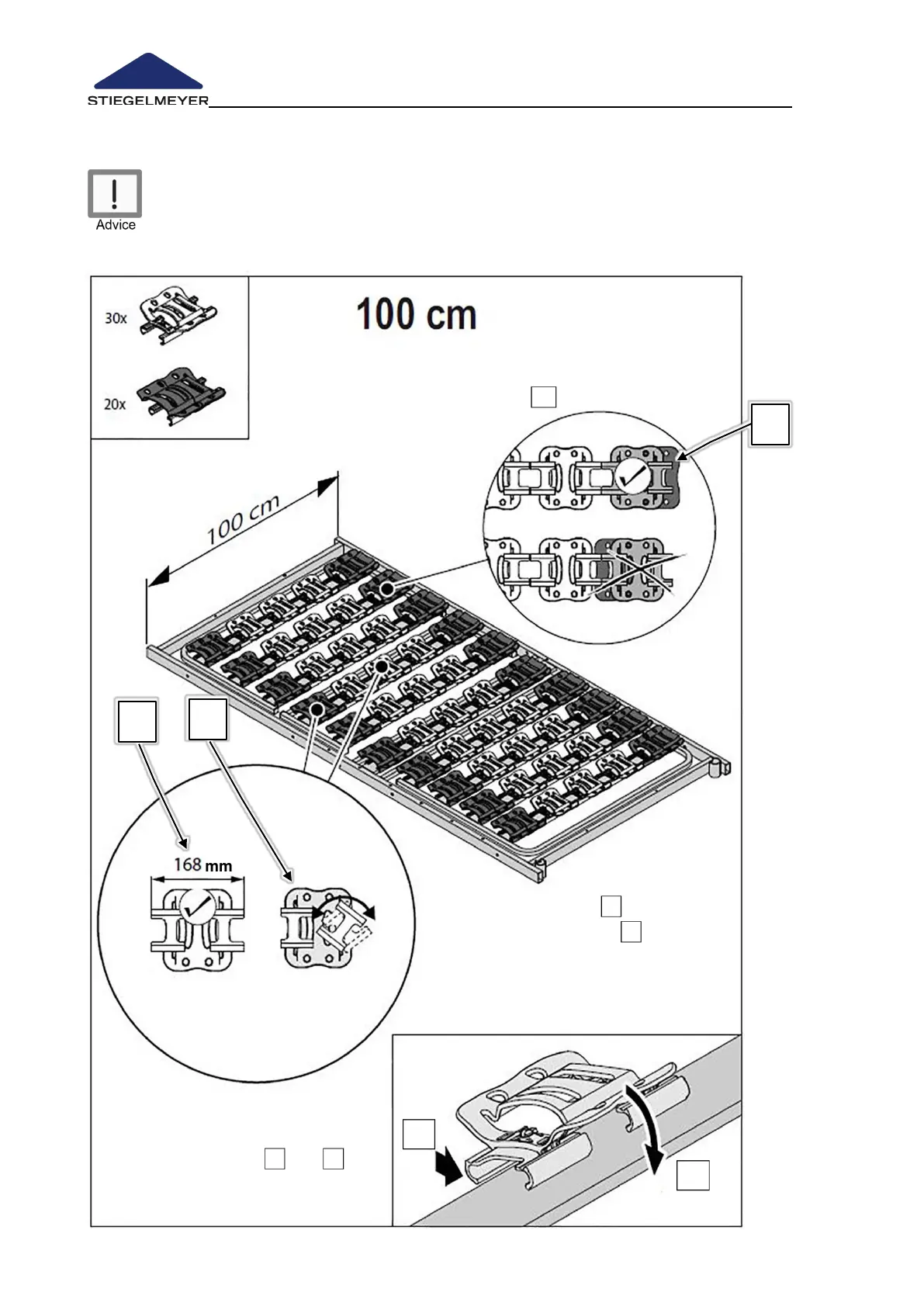

4.5.8 Comfort mattress base - 100 cm width (optional)
The following assembly instructions refer to the 100 cm wide mattress base:
When ordered with a bed extension, 5 additional elements are supplied for
the Comfort mattress base.
Wings of the black elements face
outwards 1 .
Turn the mounting clips 2 180° until
they are 168 mm in length 3 .
mm
Fit the mounting clips onto the struts
of the mattress base 4 and 5 ,
white elements in the middle and
black elements outside.
1
2
3
5
4
