4.4.9 Fit/remove the side panels
The bed can optionally be fitted with side panels. A total of four side panels are
needed: 2 x long (110 cm) and 2 x short (90 cm). 1x short and 1x long side panel are
mounted on each side of the bed. When fitting a bed extension at a later date, the
short side panels must be replaced with longer ones.
It is also possible to combine side panels and safety sides. When doing so,
please observe the instructions in chapter 4.5.5.2
Risk of injury due to incorrect installation or storage of split
safety sides, headboards, footboards or side panels with the
“Vario Safe” system!
Failure to observe these instructions can result in insecure
fastening and/or material damage and can thus put the resident at
risk of falling or becoming trapped.
• Please carefully follow the assembly steps described below.
• After assembly, carry out the mandatory checks to make sure
that the fixings are secure.
• To ensure that the plastic locking levers of the “Vario Safe”
system function properly, do not allow them to fall or suffer
severe knocks during disassembly or storage.
• Never use “Vario Safe” systems that are damaged.

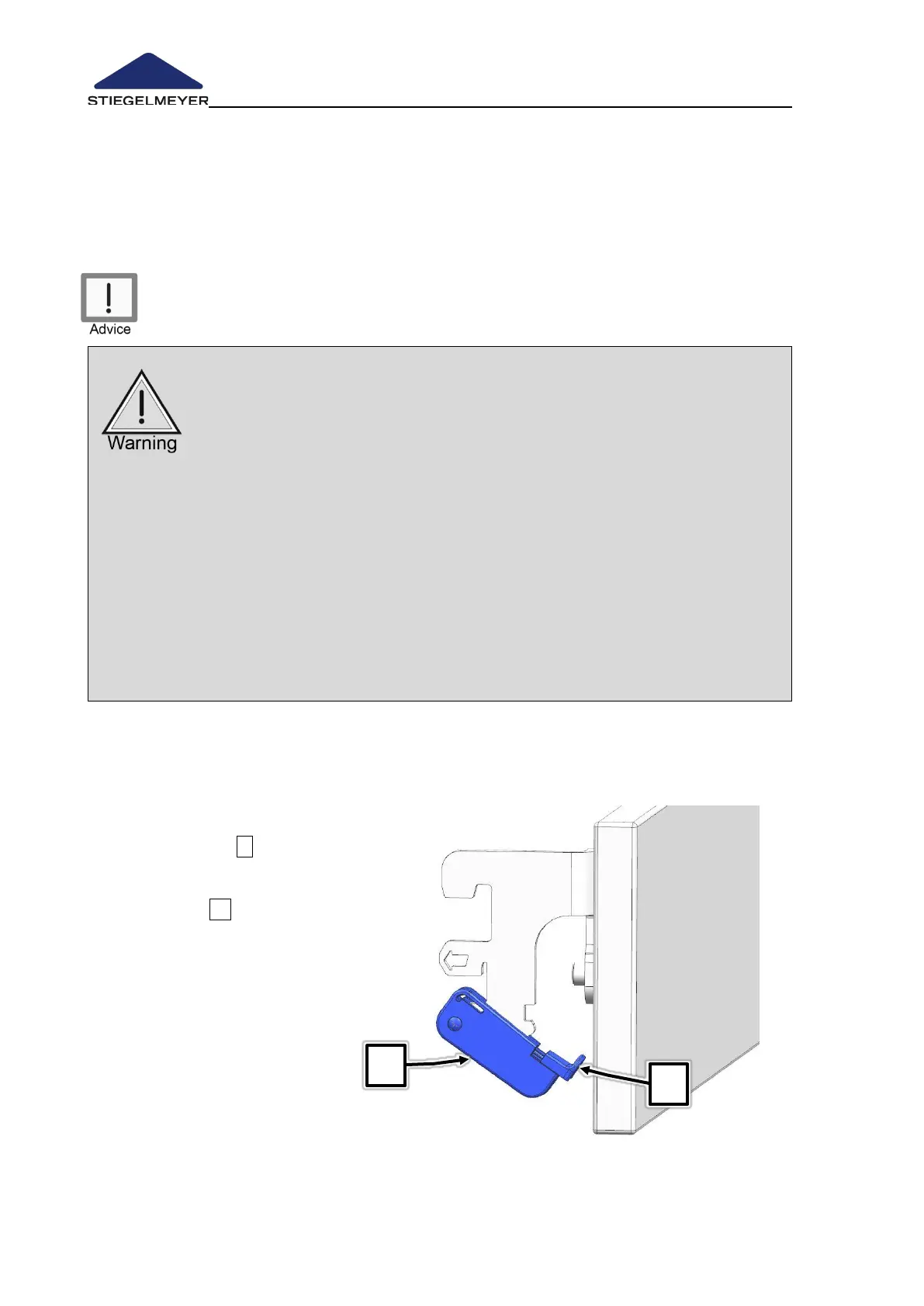

Assembly
Fit the side panels by simply connecting them to the longitudinal tube.
First swivel the locking
levers (left and right) on
the side panel 1
downwards.
To do this, pull the orange
safety lock 2 outwards
with your finger and hold it
in this position while
swivelling the locking lever
downwards.
