Instruction Manual for Libra Care Bed
Page 99
6.5.2 Replacing the handset
• If possible, raise the mattress height to the maximum level to facilitate work
• Unplug the switch mode power supply from the mains socket.
• Track the handset cable to the connecting point on the bed:
• If an optional under bed light or handset extension is fitted, the handset may
also be connected here and can then be easily replaced here too, as follows:

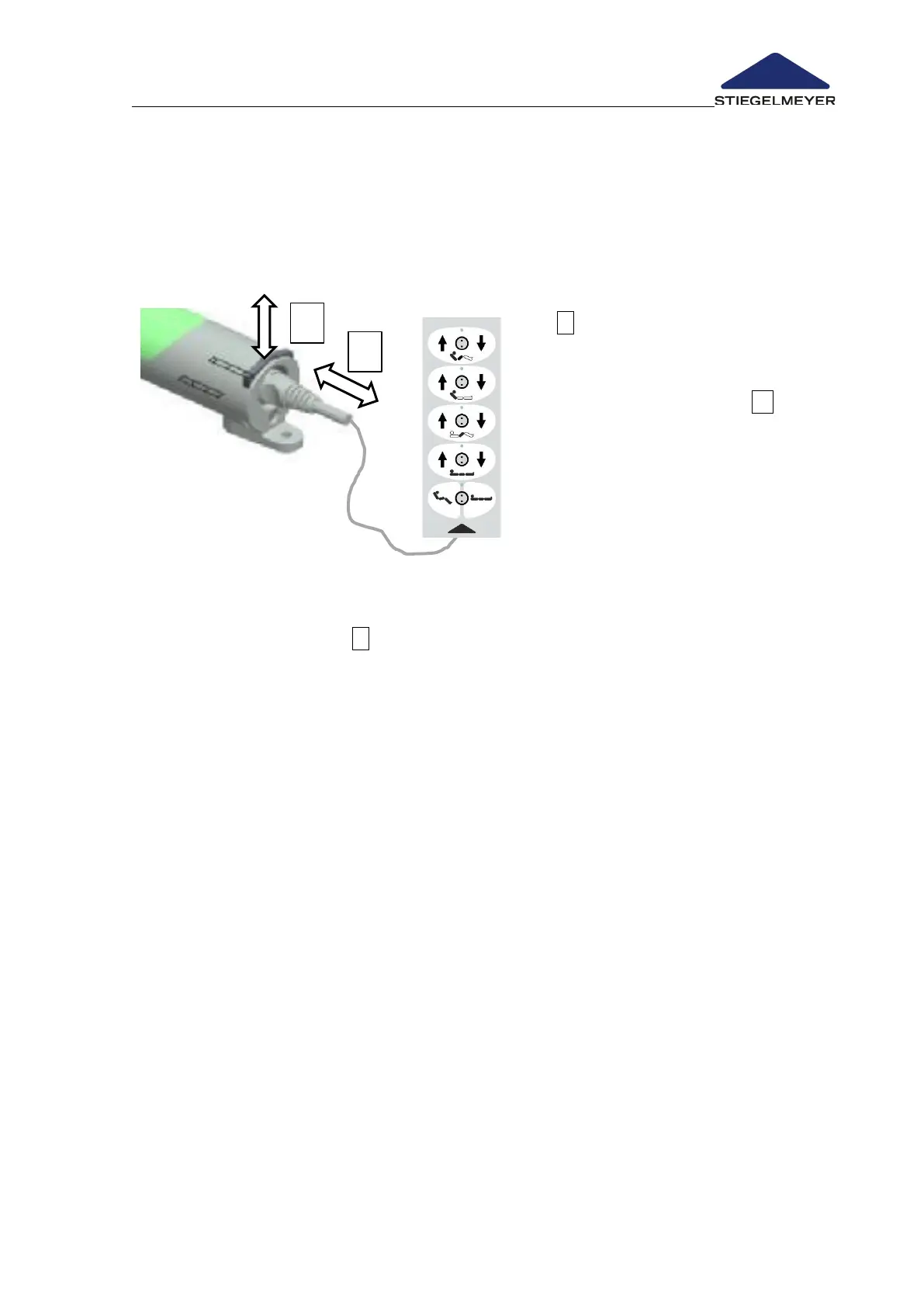

• Carefully pull the securing clip
1 out slightly using a flat-blade
screwdriver. It will engage and
remain in its extended position
• Unplug the handset 2 and
plug in a new handset with the
plug groove aligned with the
socket.
• Make sure that the O-ring
on the plug is not damaged. It
seals the plug into the control unit.
• Press the securing clip 1 down again.
• If connecting the handset directly to the control unit, loosen the plug cover
slightly (on both sides).
• Unplug the handset plug (HB) from the control unit.
• Plug in the new handset. Make sure that the O-ring on the plug is not damaged. It
seals the plug into the control unit.
• When routing the handset cable, ensure that it cannot be damaged by any
moving parts of the bed.
• Put the plug cover back in place. This prevents all the plugs from being pulled out
of the control unit.
