Instruction Manual for Libra Care Bed
Page 98

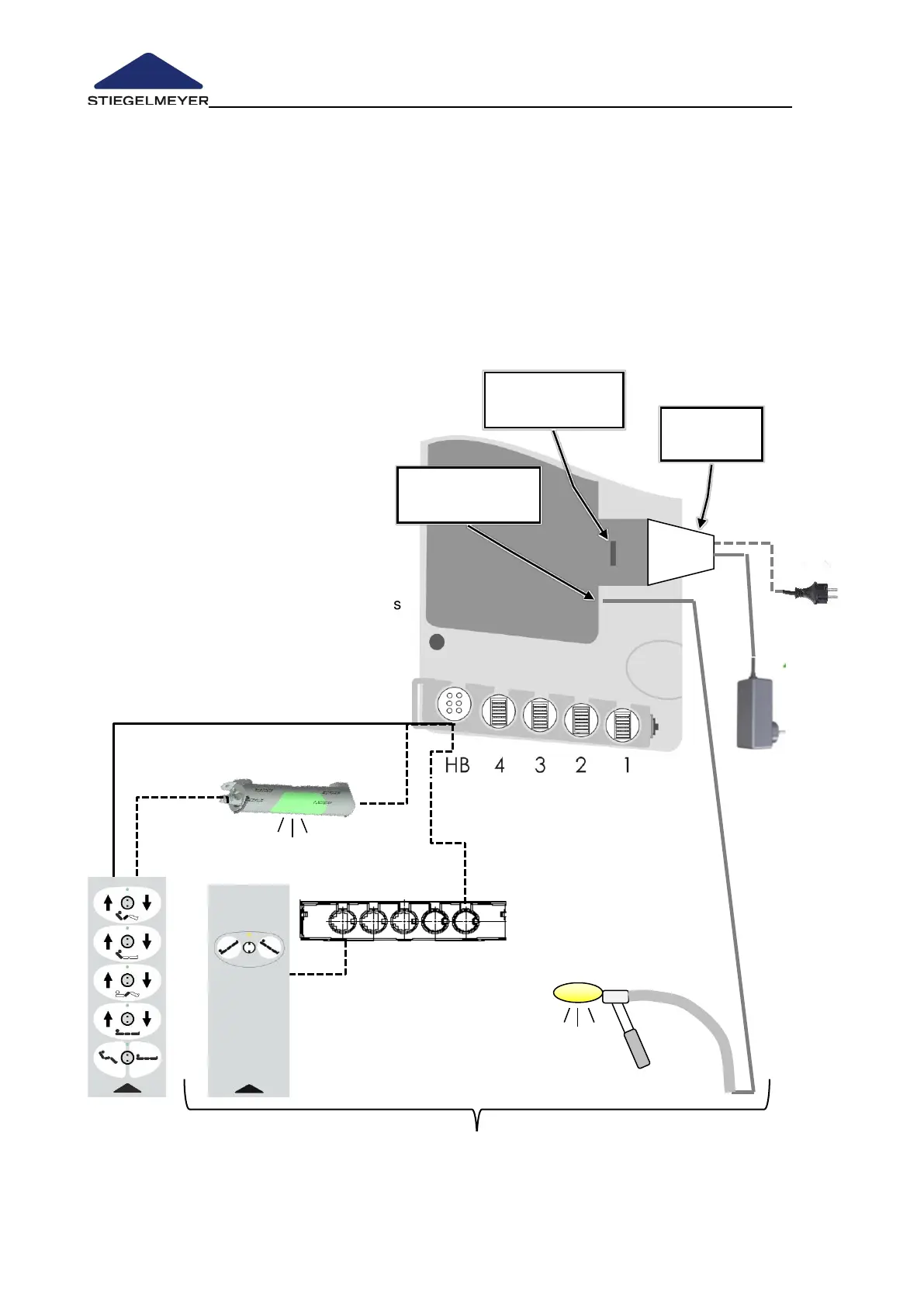

Assignment of the “HB” socket:
Depending on the existing additional electrical equipment, the following items can be
connected here:
• Handset only; handset with under bed light
• Through junction box MJB5: additional handset for setting
Trendelenburg/reverse-Trendelenburg position
Additional components mentioned above can be connected to any socket.
1 = Backrest motor
2 = Head end height motor
3 = Thigh rest motor
4 = Foot end height motor
HB = OpenBus
®
input:
Handset, various/ additional component
junction box
Input =
24V cable connection from
external switch mode power
supply, fixed Or 230V mains
cable, detachable
Position of red
securing clip
Input
24V/230V
Reading lamp
connection socket
UBL
Option
al
MJB5
