4.5.7 Comfort mattress base - 90 cm width (optional)

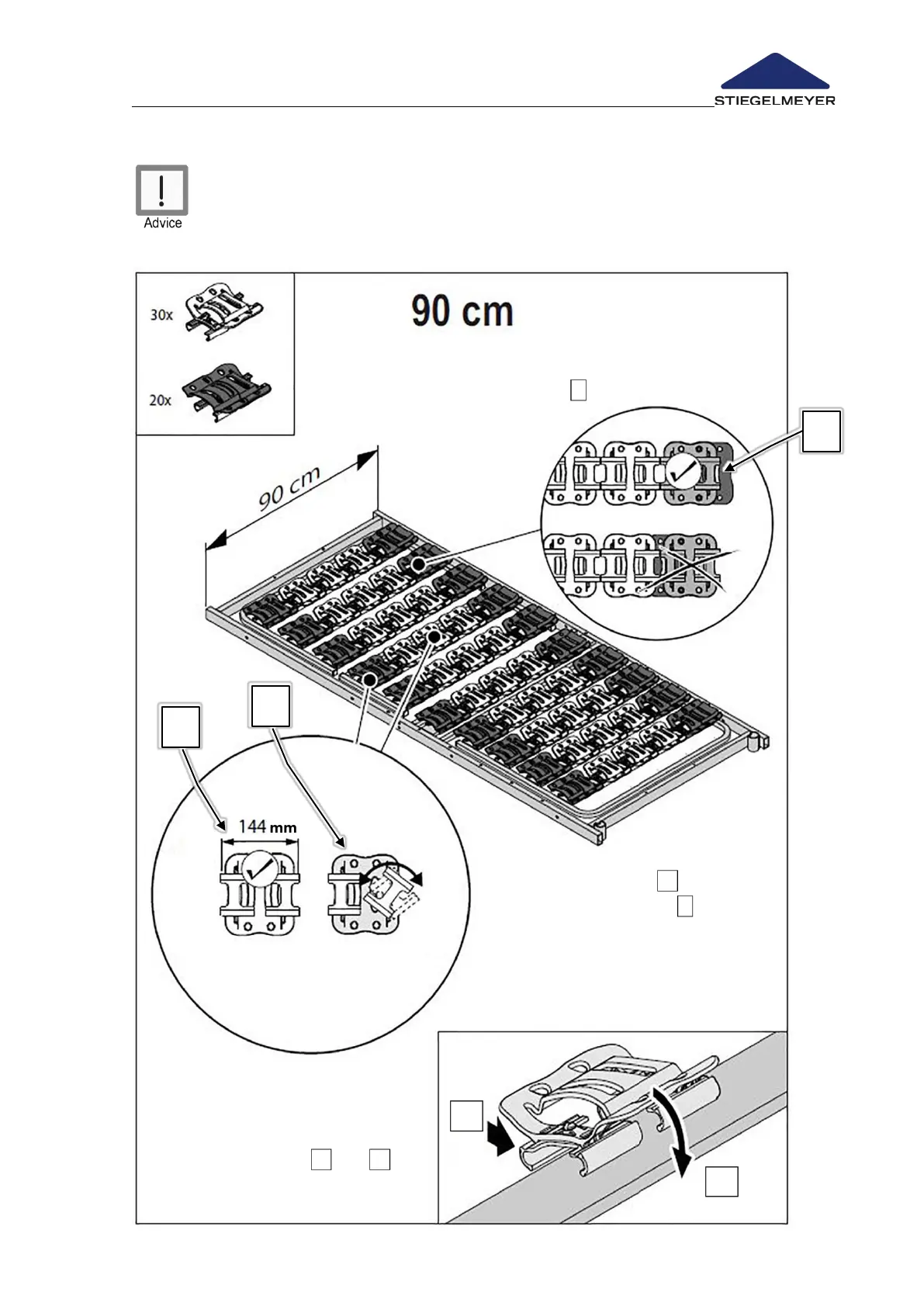

The following assembly instructions refer to the 90 cm wide mattress base:
When ordered with a bed extension, 5 additional elements are supplied for
the Comfort mattress base.
Wings of the black elements face
outwards 1
Turn the mounting clips 2 180° until
they are 144 mm in length 3
mm
Fit the mounting clips onto the struts
of the mattress base 4 and 5 ,
white elements in the middle and
black elements outside.
4
5
1
3
2
