HLE 71, HLE 71K
English
34

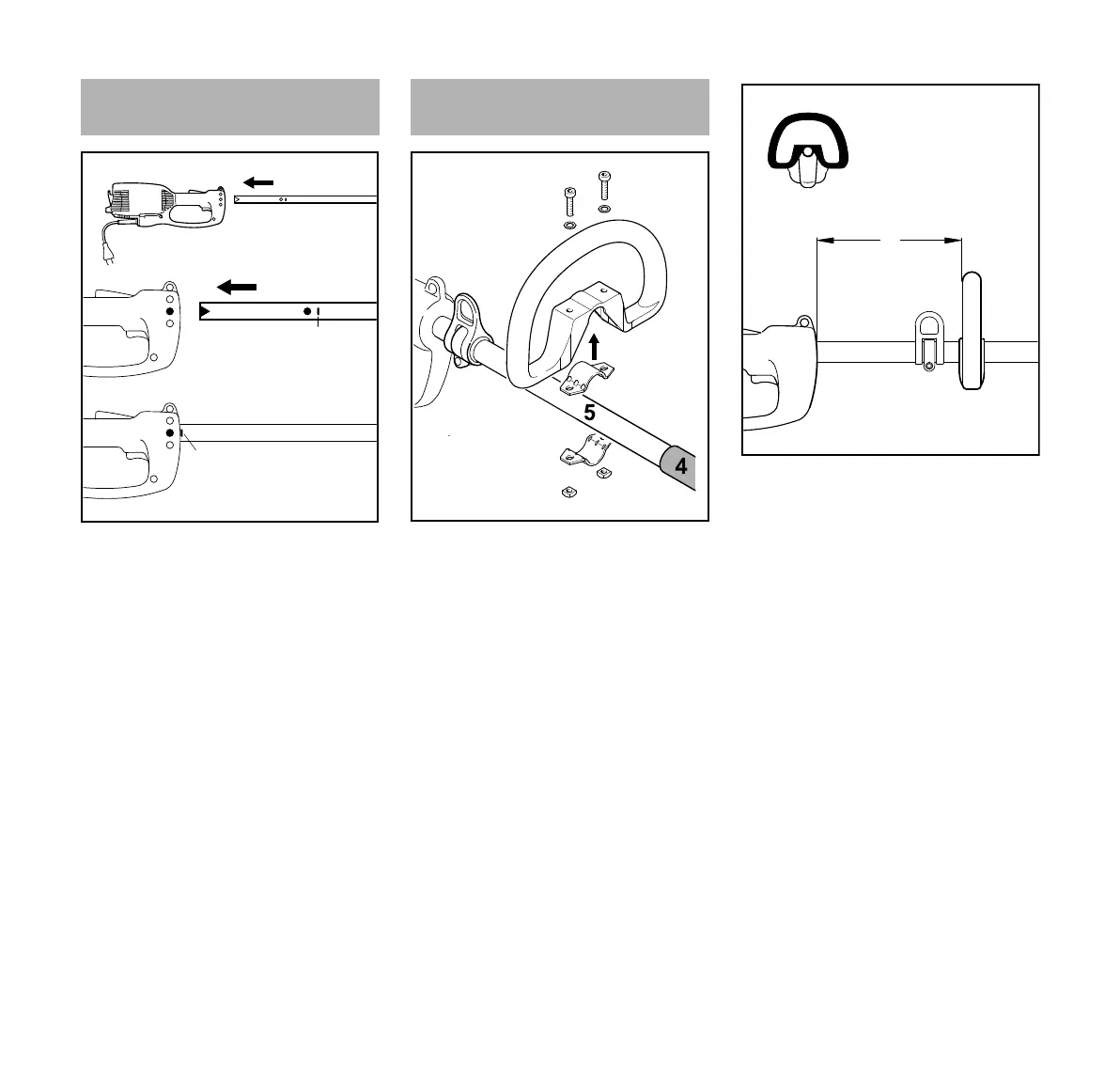

N Pull the protective cap off the drive
tube.
N Push the drive tube (1) into the
motor housing (2) as far as the mark
(A), turning the drive tube back and
forth at the same time.
N Tighten down the screw (3) in the
housing firmly.
N Place the clamp (1) in the loop
handle (2) and position them both
against the drive tube (5) between
the carrying ring (3) and handle
hose (4).
N Place the clamp (6) against the
drive tube.
N Line up the holes.
N Insert the screws (7) with
washers (8).
N Fit the square nuts (9) and screw
home the screws.
N Align the loop handle (2) and move
it to the most comfortable position.
Distance (A) must not be more than
45 cm. Recommendation: about 35 cm.
N Tighten down the screws firmly.
Mounting the Drive Tube
1
238BA016 KN
3
A
2
A
Mounting the Loop Handle
7
8
2
277BA025 KN
1
6
7
8
9
9
3
277BA026 KN
A
2
