HLE 71, HLE 71K
English
37
Some versions of the machine can be
carried on a harness.
The type and style of the harness
depend on the market.

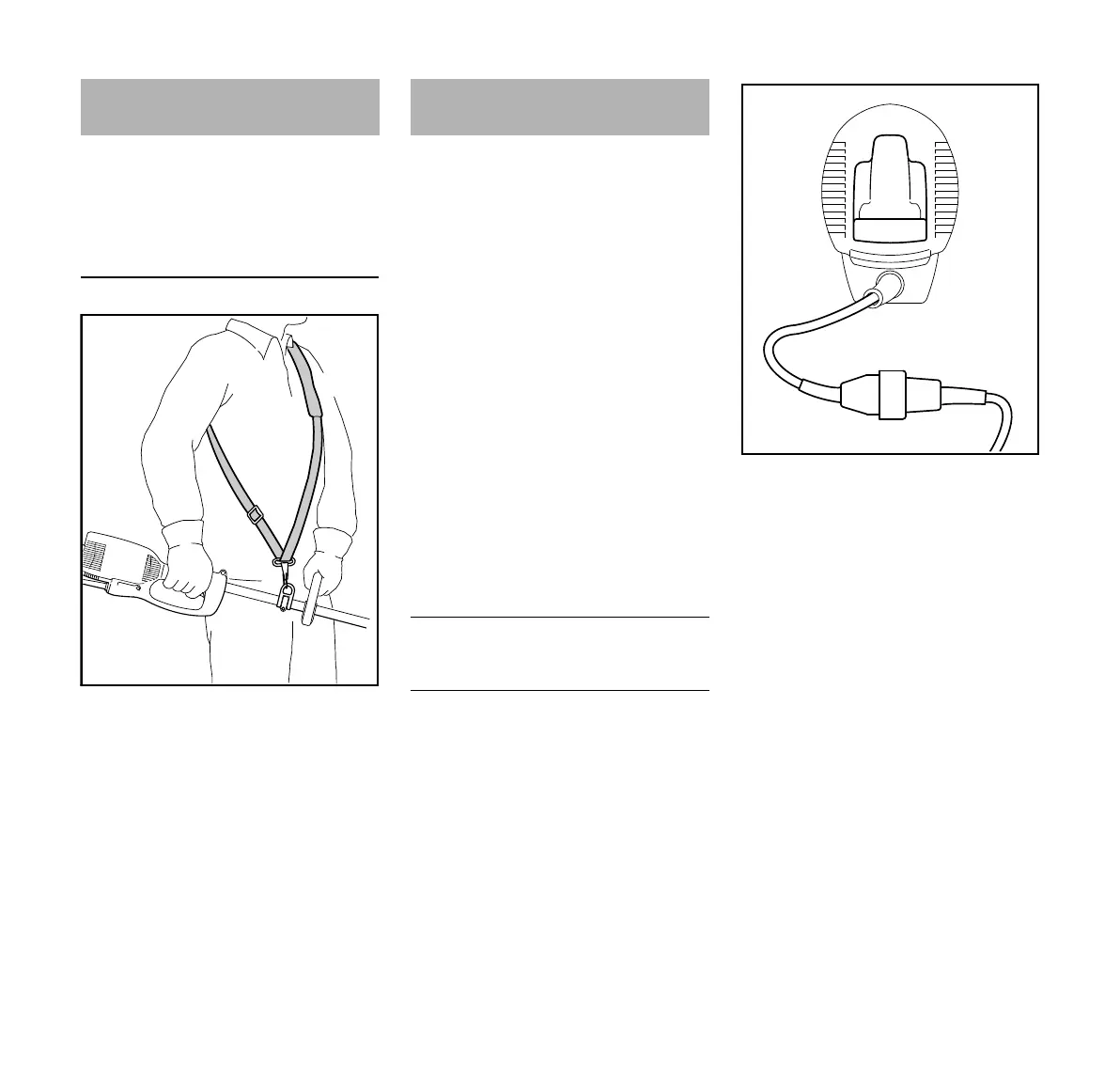

Shoulder strap
N Put on the shoulder strap (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
The voltage and frequency of the
machine (see rating plate) must match
the voltage and frequency of the power
connection.
The minimum fuse protection of the
power connection must comply with the
specifications – see "Specifications".
The machine must be connected to the
power supply via an earth-leakage
circuit breaker to disconnect the power
supply if the differential current to earth
exceeds 30 mA.
The power connection must correspond
to IEC 60364 and relevant national
regulations.
Depending on the supply voltage and
cord length, the minimum conductor
cross section of the extension cord must
be as follows:
N Plug the power cord (1) into the
coupling (2) of the extension cord
Fitting the Harness
2
1
277BA028 KN
Connecting to Power Supply
Cord length Minimum cross
section
220 V – 240 V:
up to 20 m 1.5 mm
2
20 m to 50 m 2.5 mm
2
100 V – 127 V:
up to 10 m AWG 14 / 2.0 mm
2
10 m to 30 m AWG 12 / 3.5 mm
2
238BA008 KN
1
2
