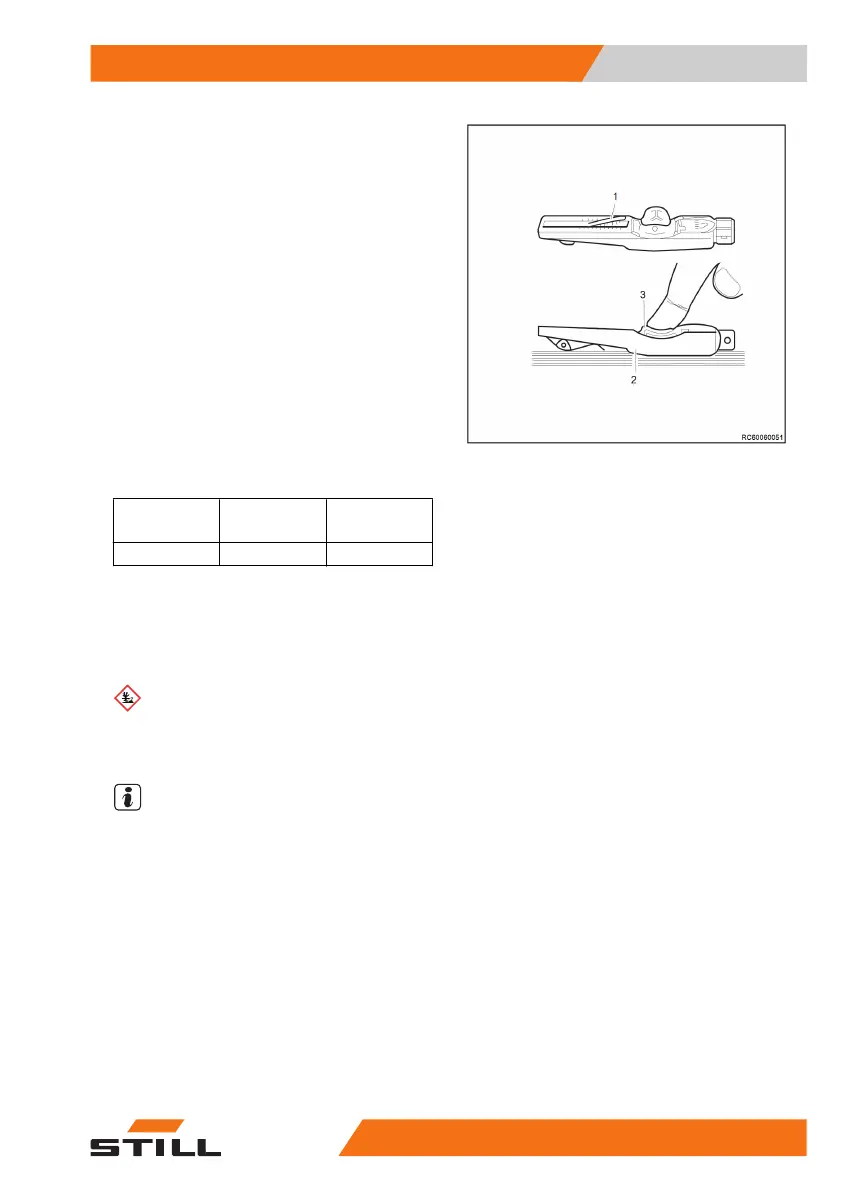

Tension measurement
– Set the measuring instrument between the
pulleys and set its contact end (2) to push
the belt.
– Press the pad (3) until unscrewing sound of
the spring is heard. This force pushes the
tension measuring instrument upwards.
– If there is still tension left on the belt after
removing the pad (3), the measurement re-
sult is not accurate.
– Read the value where the top of the protru-
sion (1) of the tension measuring instrument
is aligned with the scale.
– Before reading the value, make sure that
the needle of the measuring instrument is
returned back to the original position.
Number of
Ribs
Belt width Tension [N]
6 20.98~21.74 300~380
Changing the hydraulic transmis-
sion crude oil filter
ENVIRONMENT NOTE
Please follow the instructions for disposal of
fluids and lubricants.
NOTE
Place a container under the crude oil filter to
collect oil flowing out of the transmission.
– Remove the floorplate.
– Unscrew the fastening screws and washers
on the crude oil filter.
– Slowly pull out the crude oil filter so that the
oil flows into the container.
– Unscrew the crude oil filter from the oil filter
seat.
Maintenance
5
Maintenance service
13160068011601 EN - 09/2020
