DANGER
Take care not to touch moving parts during this op-
eration.
Checking the drive axle gearbox oil

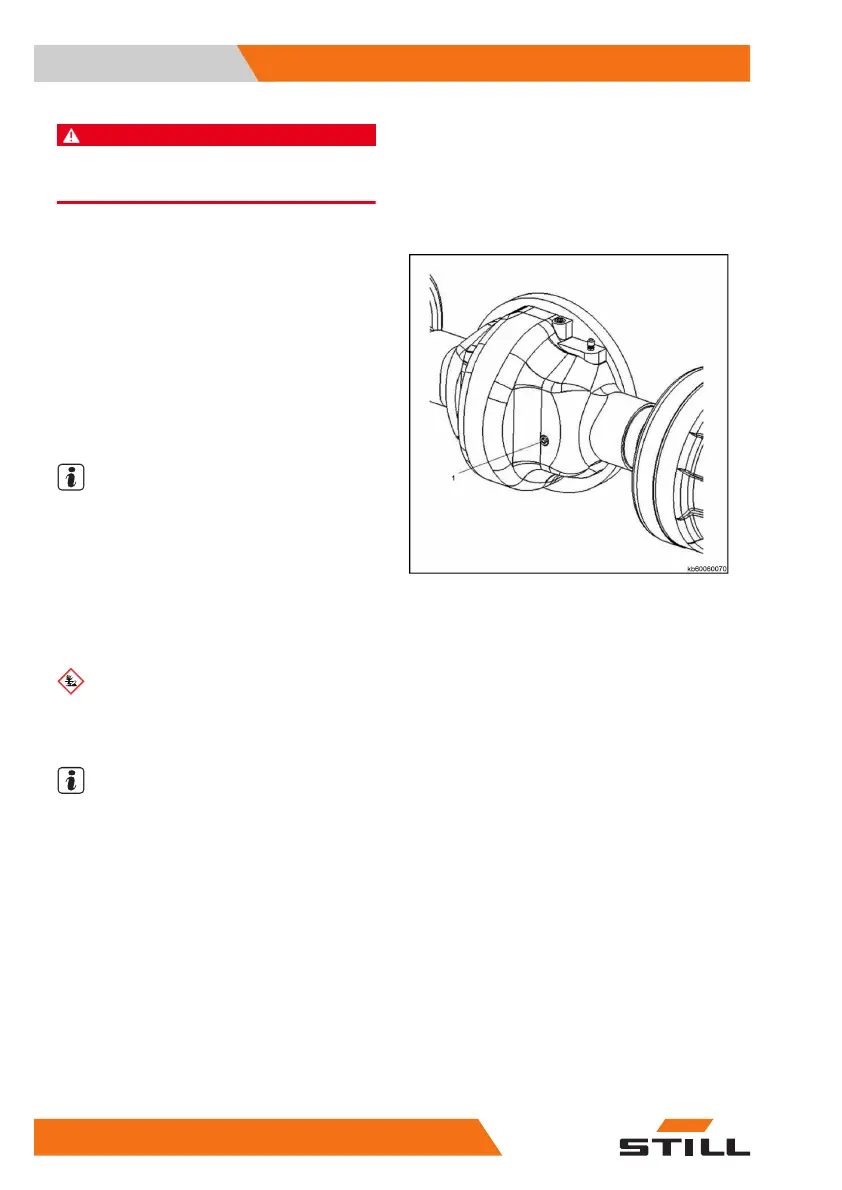

– Unscrew the oil plug at the oil level aperture
(1).
– Check the gear shaft oil level to ensure it is
near the observation aperture posi-
tion(around 15mm).
– If necessary, fill the drive axle with gear oil
until oil flows out of the oil level aperture.
NOTE
Please refer to the chapter on replacing the
drive axle gearbox oil for steps to take when
adding gear oil.
Checking the hydraulic oil level
ENVIRONMENT NOTE
Please follow the instructions for handling/
disposal of fluids and lubricants.
NOTE
The oil level should only be checked with the
lift mast vertical and the fork carriage lowered.
– Apply the parking brake.
– Open the engine cover.
– Screw the oil cap with dipstick.
Use and operation
4
Remaining ready for operation
50 60068011601 EN - 09/2020
