Instrumentation and controls

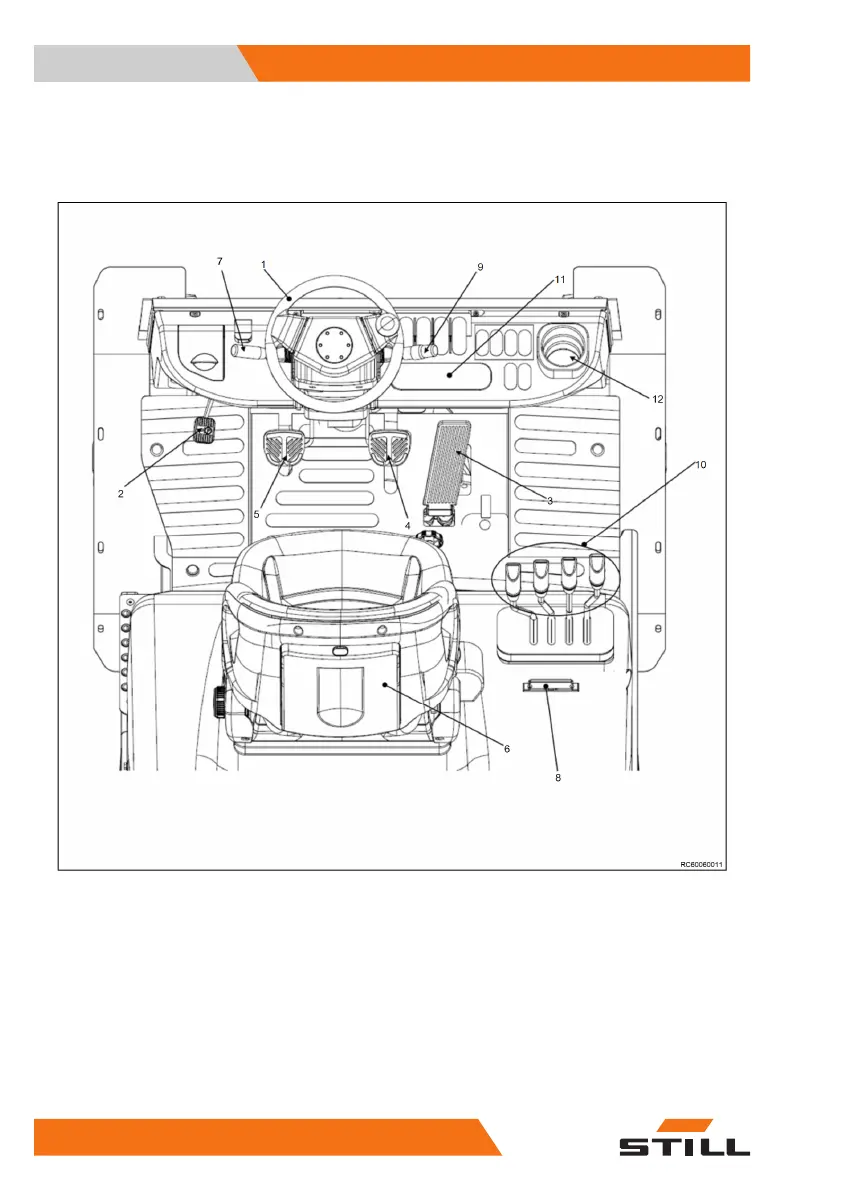

Control components
Steering wheel
Parking brake pedal
Accelerator pedal
Driving brake pedal
Inching pedal
Seat
1
2
3
4
5
6
Direction reverser
A4 paper folder
Light switch/direction indicator light switch
Operating handle
Display unit
Cup holder
7
8
9
10
11
12
Information about the truck
3
Instrumentation and controls
28 60068011601 EN - 09/2020
