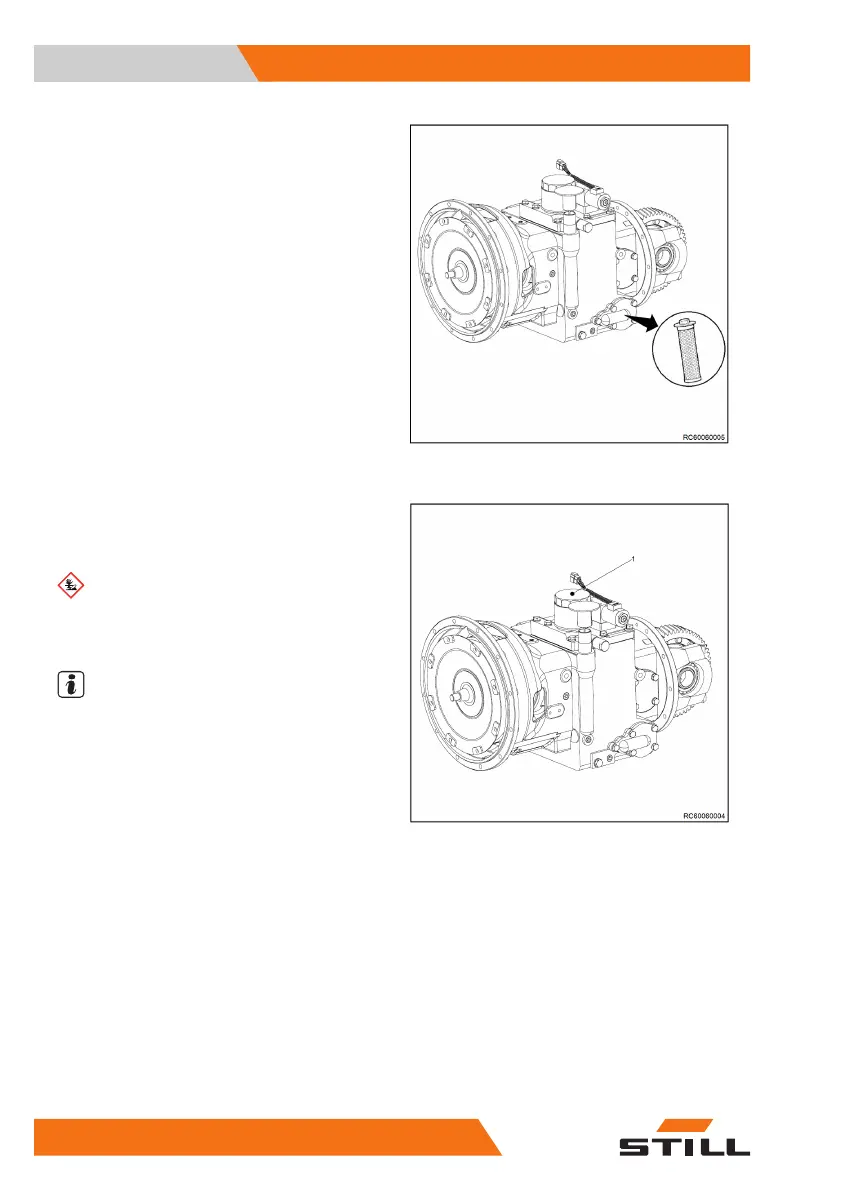

– Unscrew the fastening nut on the crude oil
filter; then remove the filter insert.
– Replace it with a new crude oil filter insert.
Fit the filter insert followed by the bottom
cover onto the filter spindle; then tighten the
nut.
– Refit the crude oil filter to the gearbox using
the fastening screws.
– Refit the floorplate.
Replacing the fine hydraulic trans-
mission oil filter
ENVIRONMENT NOTE
Please handle liquids and lubricating oil in ac-
cordance with instructions.
NOTE
If transmission oil flows out, a collection con-
tainer should be placed underneath the fine oil
filter.
– Remove the bottom plate.
– Unscrew the fine oil filter(1) from the hy-
draulic transmission.
– Install a new fine oil filter until tightly se-
cured.
– Reinstall the bottom plate.
Maintenance
5
Maintenance service
132 60068011601 EN - 09/2020
