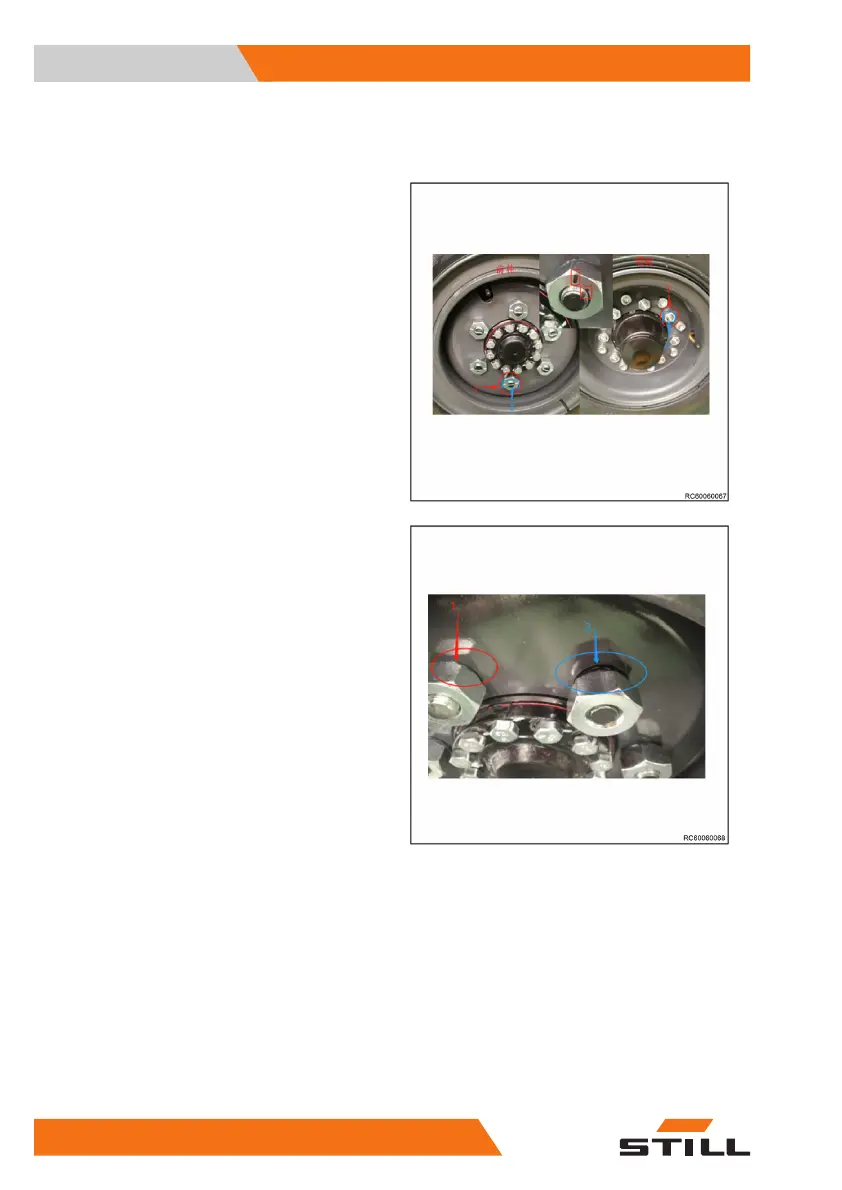

Check the wheel nuts for correct
condition
– Visually check the markings in the wheel
nuts and rims are correctly attached, re-
tighten with torque spanner if necessary.
Tightening torque:
Front tyres (M20X1.5) : 525 N.m±10%
Rear tyres (M14X1.5): 181 N.m±10%
– Visually check if the column is deformed or
whether the hole for the rim is larger, re-
tighten with torque spanner if yes. Replace
the rim when there is serious deformation.
– If the markings are difficult to recognize,
check if there is any gap (As the arrows
show) between the joint face of the rims
and nuts. Re-tighten with torque spanner if
gap exits.
– Check the wheels and rims for wear and
deformation, change the tyres if there is any
deformation.
Use and operation
4
Remaining ready for operation
44 60068011601 EN - 09/2020
