6 Connection
In order to connect the EC6 communication module of the SD6 drive controller to other EtherCAT nodes, the top of each
device features two RJ-45 sockets.
6.1 Selecting suitable lines
EtherCAT is an Ethernet-based communications technology optimized for automation technology.
Ethernet patch cables or crossover cables meeting the CAT 5e quality level are the ideal cables. The Fast Ethernet
technology allows a maximum cable length of 100m between two nodes.
Information
Ensure that you only use shielded cables with an SF/FTP, S/FTP or SF/UTP design.
6.2 X200, X201: Fieldbus connection
The drive controllers have both RJ-45 sockets X200 and X201. The sockets are located on top of the device. The associated
pin assignment and color coding correspond to the EIA/TIA-T568B standard.

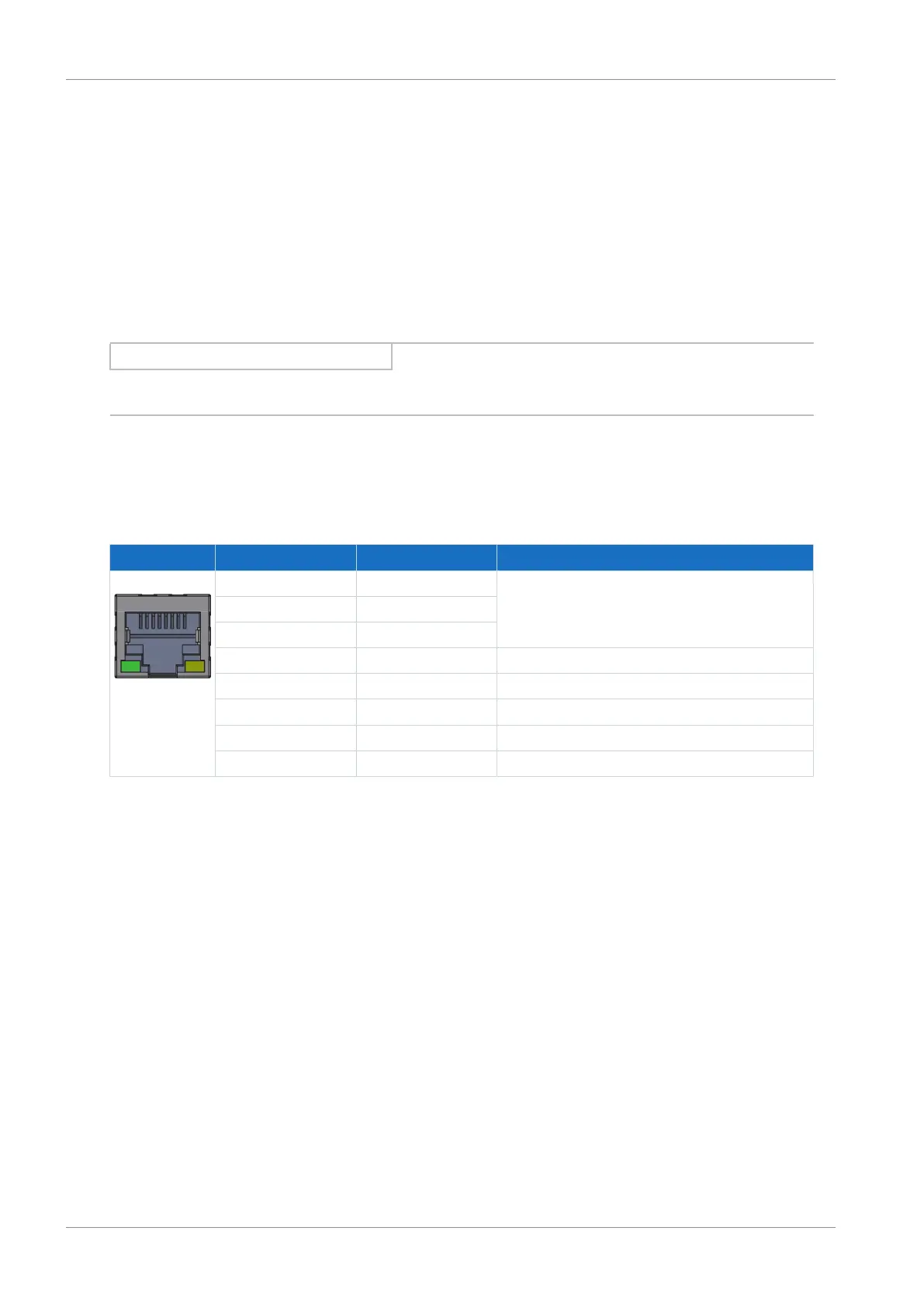

Socket Pin Designation Function
1|2| ... |7|8 1 Tx+ Communication
2 Tx−
3 Rx+
4 — —
5 — —
6 Rx− Communication
7 — —
8 — —
Tab. 1: X200 and X201 connection description
