9.2.2 EtherCAT network connection
The LEDs LA
EC
IN and LA
EC
OUT at X200 and X201 on the top of the device display the state of the network connection.
X200 X201
Err-Run
2
1
43
LA
IN
EC
LA
EC
OUT

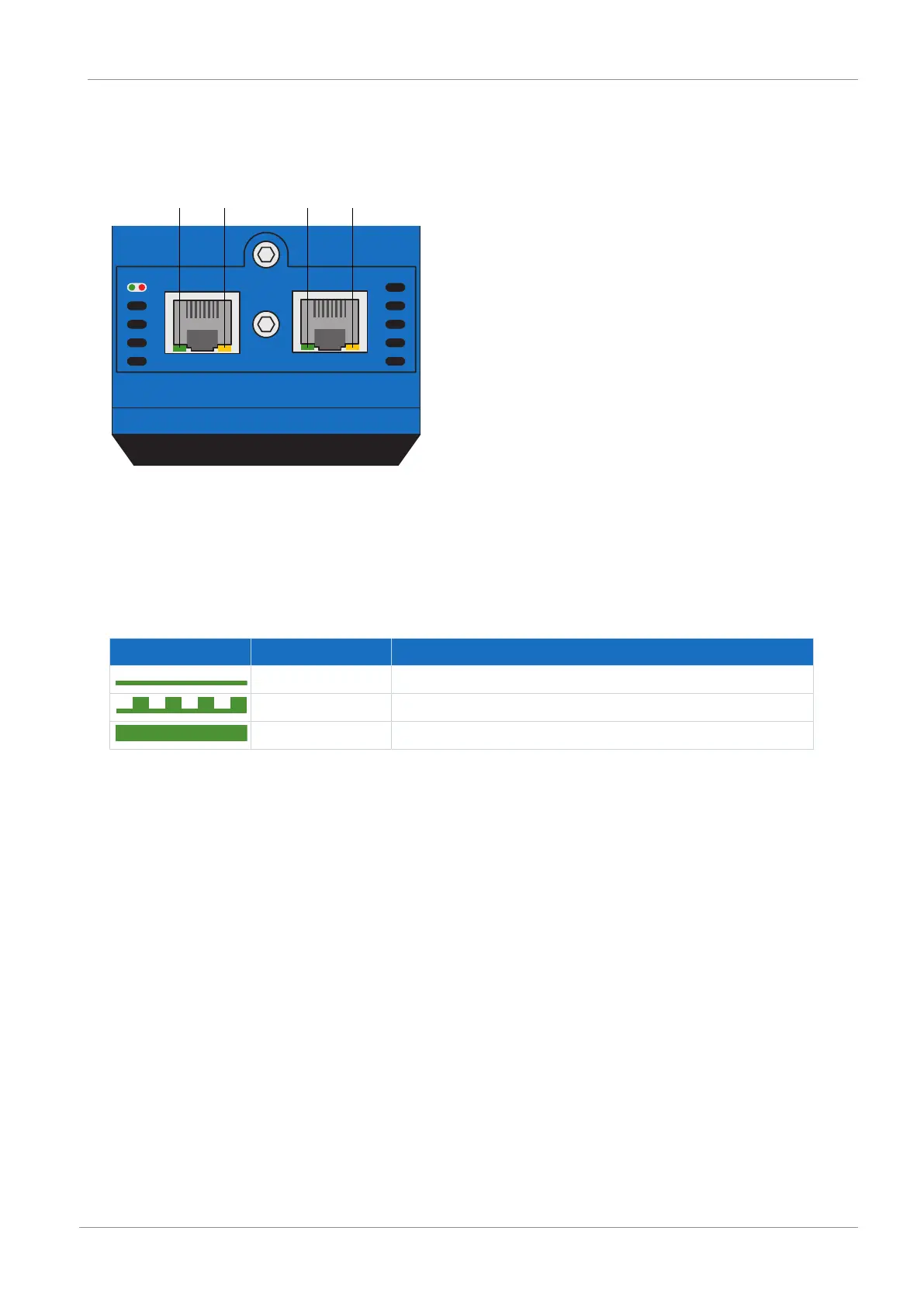

Fig.7: LEDs for the state of the EtherCAT network connection
1 Green: LA
EC
IN at X200
2 Yellow: No function
3 Green: LA
EC
OUT at X201
4 Yellow: No function
Green LED Behavior Description
Off No network connection
Flashing Active data exchange with other EtherCAT nodes
On Network connection exists
Tab. 6: Meaning of the green LEDs (LA)
