Objet350 User Guide 6 Operating and Maintaining the Objet350 3DPrinter
DOC-17001 Rev.G 6-40

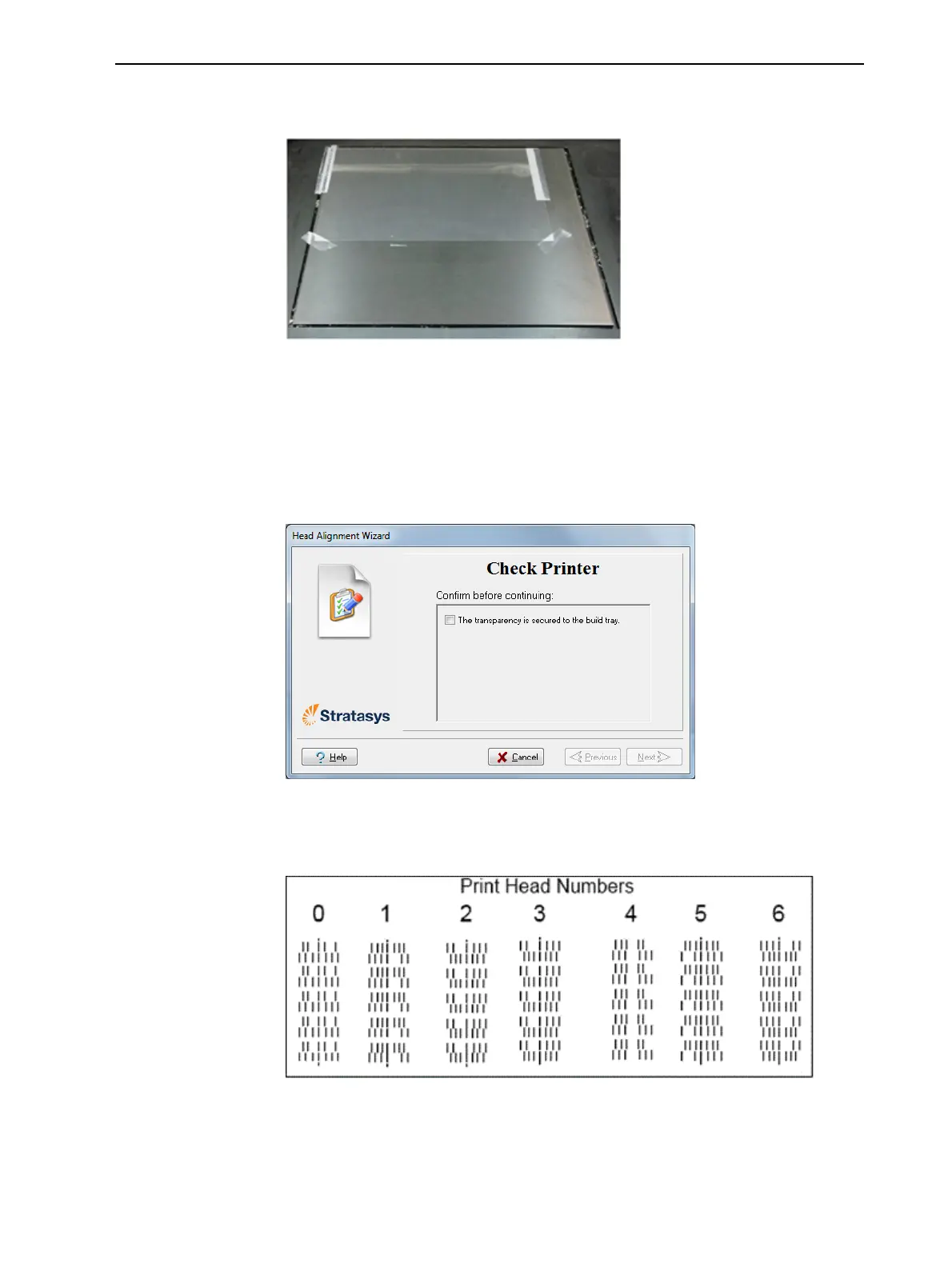

5. Wheninstructedtodoso,placethetransparencyonthebuildtray—next
totheleftandrearedgesofthetray,asshowninthefollowingfigure.
Figure6-47Positioningthetransparencyonthebuildtray
6. Makesurethatthetransparencysheetislyingflat,andtapeittothetray.
7. Inthewizardscreen,selectthecheckboxtoconfirmthatthe
transparencysheetisonthebuildtray,andclickNext.
Theprinterprintstheheadalignmenttestonthetransparency.
8. Whenthefollowingscreenappears,removethetransparency.
Figure6-48HeadAlignmentwizard—steps8–10
Thetransparencysheetisprintedwithsetsofverticallinesinseven
columns,eachshowingtheresultsfromadifferentprinthead.
Figure6-49Samplehead-alignmenttest
Note: ThereisnocolumnforheadH7becauseitsalignmentisusedasa
referenceforaligningallotherheads.
