Objet350 User Guide 6 Operating and Maintaining the Objet350 3DPrinter
DOC-17001 Rev.G 6-66
ExternalUVMeter
Thefollowingstepsapplywhenusingastand-aloneUVmeter.Theydonot
applywhenusingtheStratasysUVsensorboxconnectedtotheprinter.
1. Whenthefollowingscreenappears,opentheprinterandplacetheUV
sensorboxattherearedgeofthetray,inthecenter.

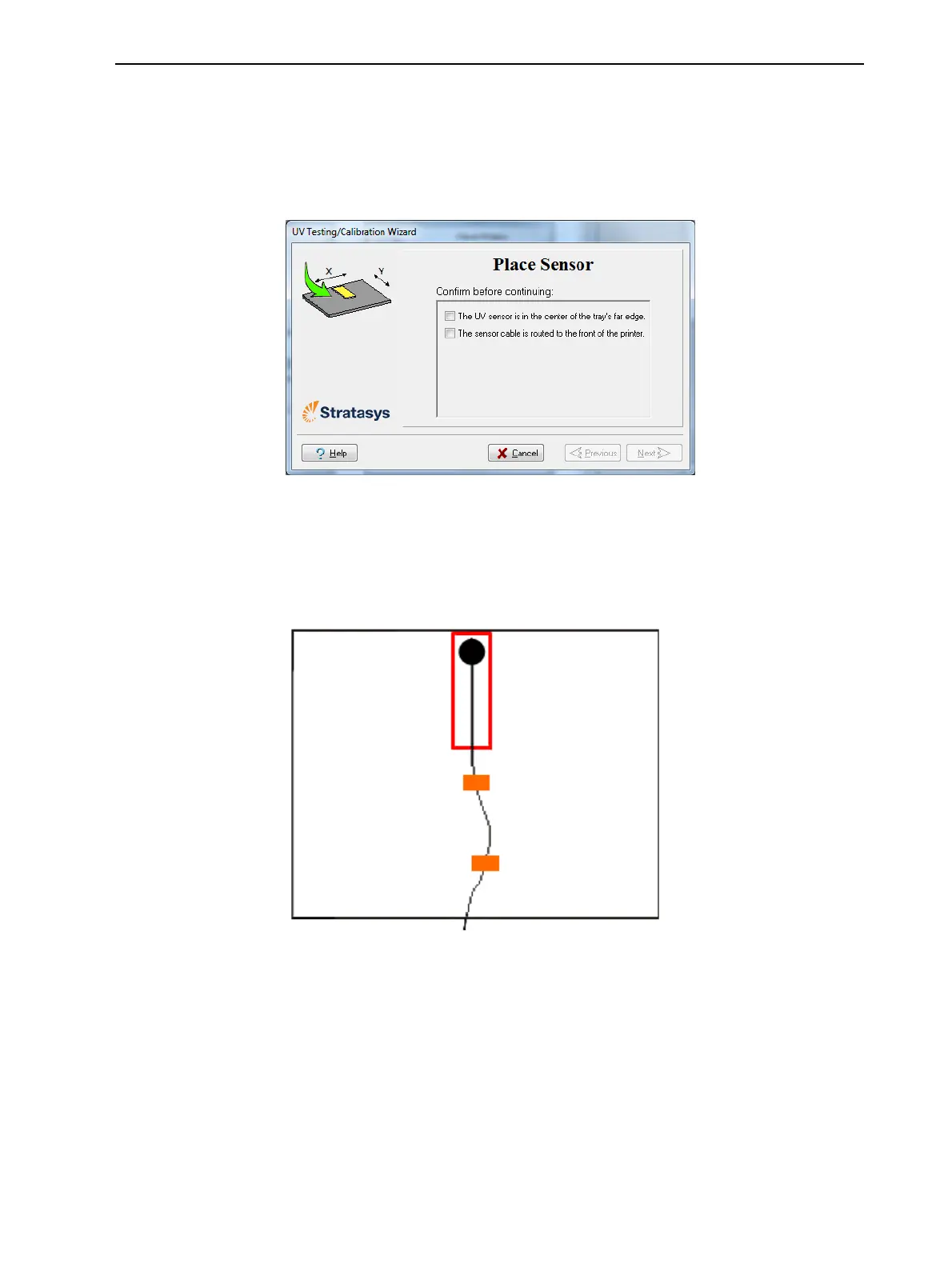

Figure6-97Sensorplacementscreen
2. Leadthecableoutoftheprintersothatyoucanclosetheprinter,and
tapeitdowntomakesurethatitdoesnotinterferewiththemovingprint
block.
Tapethecabletothebuildtraytokeepitinplace.

Figure6-98CorrectUV-sensorplacement
3. Closetheprinter,whilecheckingthatthesensordoesnotmoveoutof
position.
4. SettheUVmetertomeasuremJ/cm2.
5. Settherangeonthemeterto2,000.
