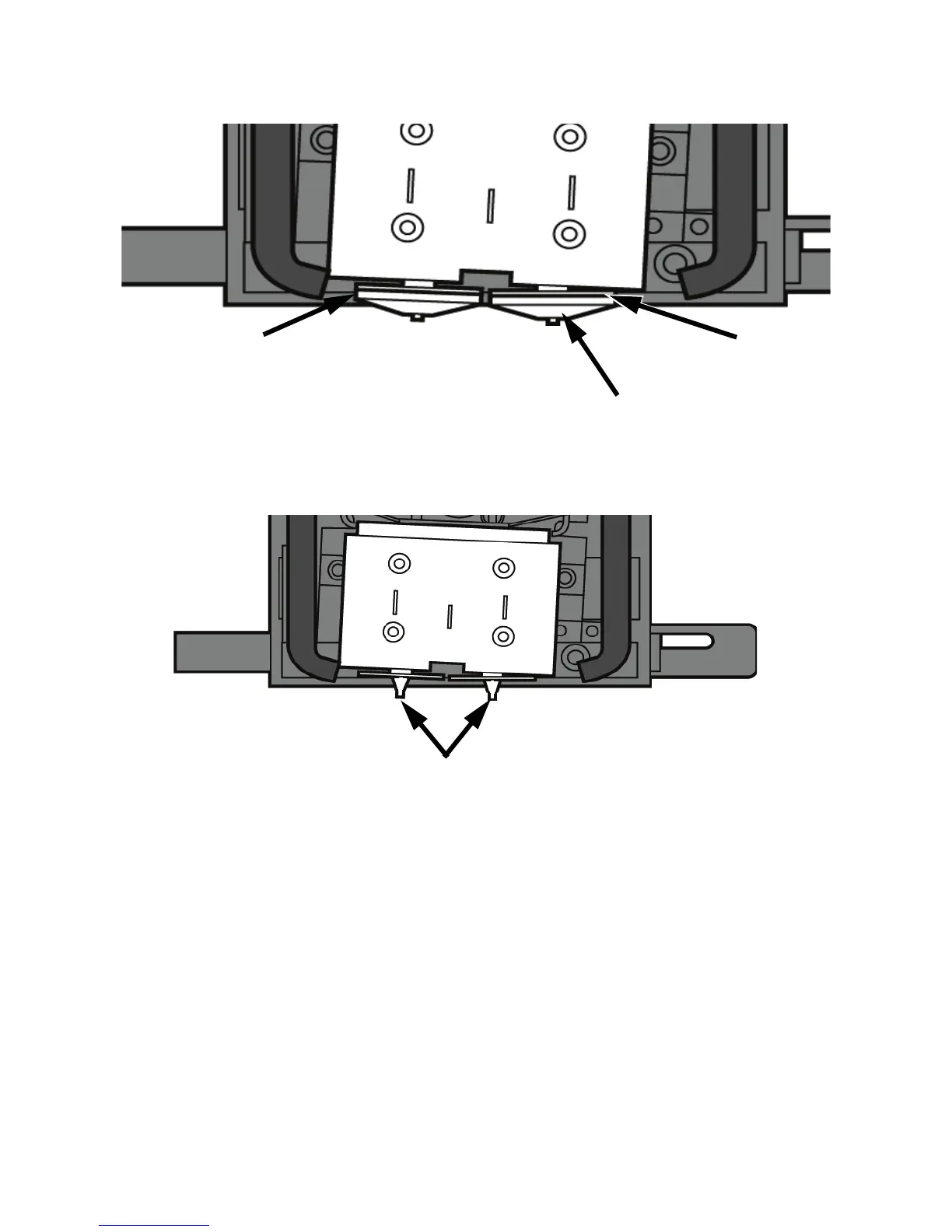

Figure 33 Tip Shield removal
4. Clean the tip using the wire brush supplied with the Startup Kit to remove any debris. See
Figure 34.
Figure 34 Clean tips with wire brush
5. Install a new tip shield by pushing it, by hand, over the exposed tip, keeping the slotted end
towards the back of the tip. See Figure 35.
Insert small standard
screwdriver to pry tip
shields from tips.
Tip shield
Tip plate
Clean the tips using a wire brush.
