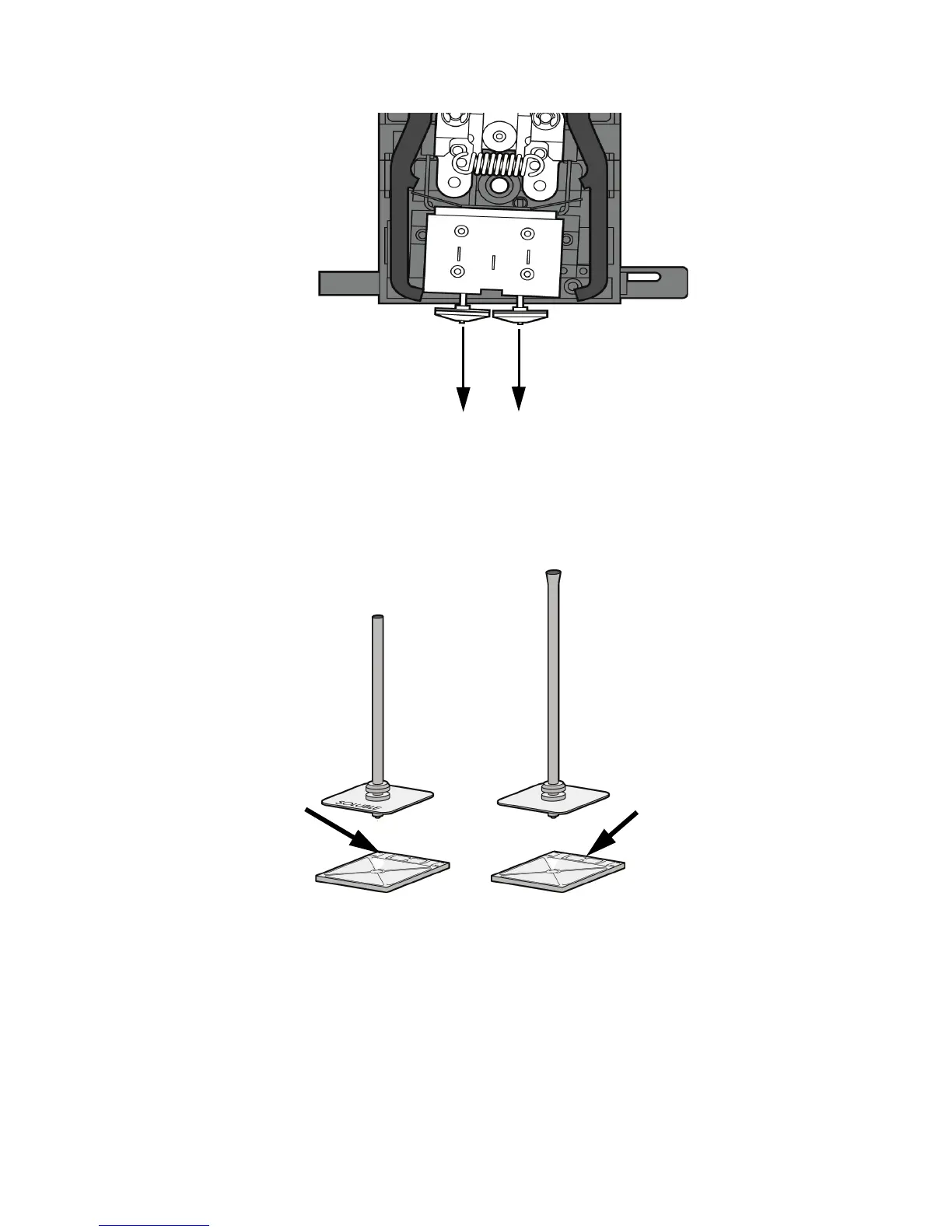

Figure 41 Remove the tips
d. Repeat for second tip if necessary.
Installing tips:
1. Place the tip shield on the tip. Be sure to install the proper tip. See Figure 42.
Figure 42 Tip shield alignment
2. With gloved hand, insert the new tip into the heater block. With the slotted side towards the
rear of the printer. See Figure 43.
Align the tip shield so the slotted end is
facing the back of the printer
Slotted end
Slotted end
