Design and function
Verti-Mix SF / Verti-Mix Double SF Version 06.12
83

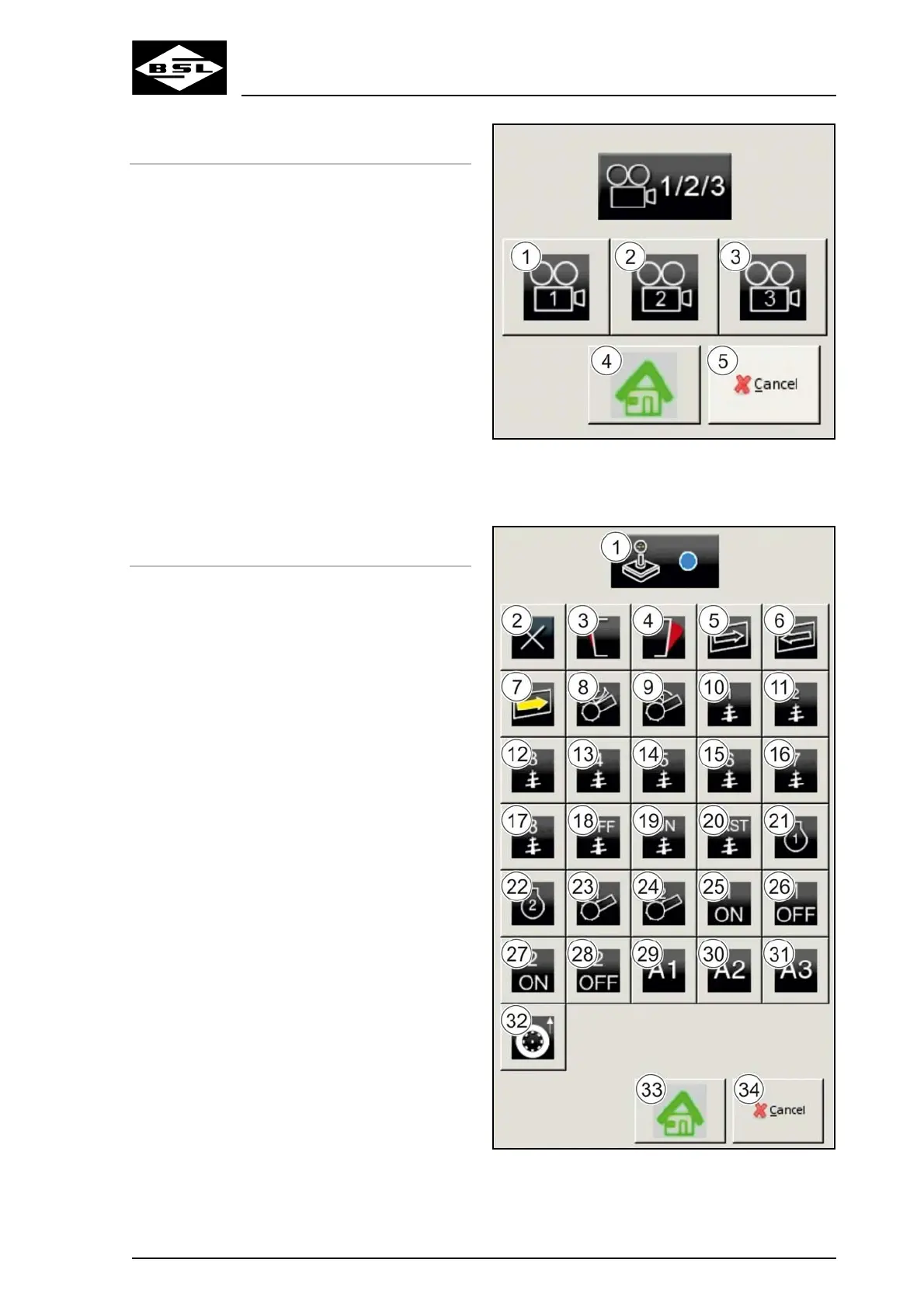

List of cameras
(1) Camera 1
(2) Camera 2
(3) Camera 3 (optional extra)
(4) Set value of factory setting
(5) Cancel entry
1. Touch the respective camera symbol to
select the desired camera.
Fig. 31
List of functions
(1) Selected key
(2) Function: No function
(3) Extend hydraulic counter-cutters
(4) Retract hydraulic counter-cutters
(5) Elevator conveyor in driving direction
"Filling".
(6) Elevator conveyor in driving direction
"Reversing".
(7) Elevator conveyor in driving direction
"Filling" – reduced speed
(8) Open protective device of pick-up milling
cutter
(9) Close protective device of pick-up milling
cutter.
(10) Speed preselection, mixing auger(s) – 1
(11) Speed preselection, mixing auger(s) – 2
(12) Speed preselection, mixing auger(s) – 3
(13) Speed preselection, mixing auger(s) – 4
(14) Speed preselection, mixing auger(s) – 5
(15) Speed preselection, mixing auger(s) – 6
(16) Speed preselection, mixing auger(s) – 7
(17) Speed preselection, mixing auger(s) – 8
(18) Mixing auger(s) – OFF
Fig. 32
