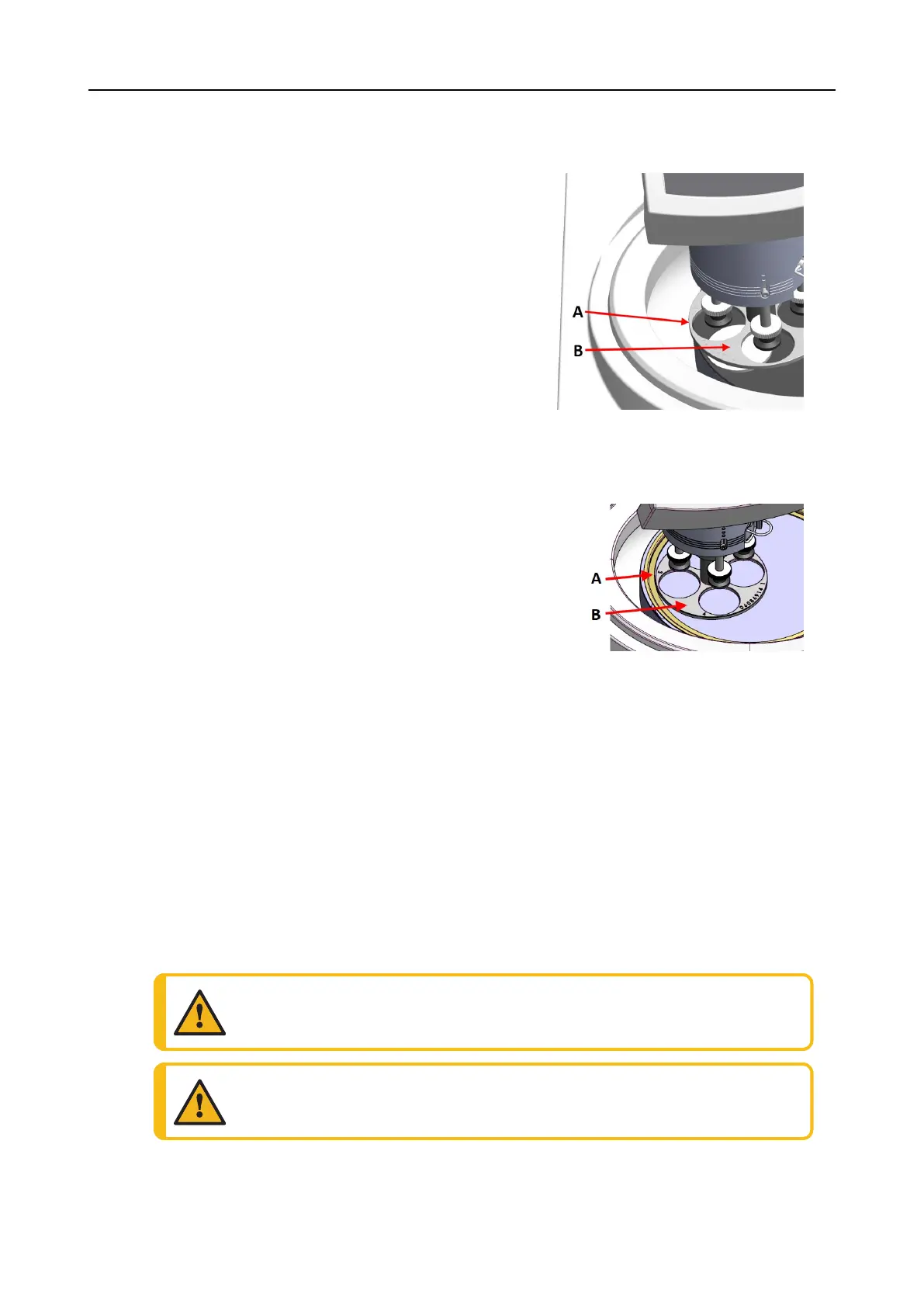

Adjusting the horizontal position of the specimen mover plate
MD-Disc
1. Moves the specimen mover head to the right.
2. Place the specimen mover plate in a position
that allows the specimen to run 3 – 4 mm over
the edge of the preparation disc.
A Disc edge
B Specimen mover plate
Wet Grinding Disc
1. Moves the specimen mover head to the right.
2. Place the specimen mover plate in a position 2
– 3 mm from the metal ring.
A Metal ring
B Specimen mover plate
Completing the adjustment
1. Tighten the 2 fastening screws firmly. The specimen mover will now remain in position.
2. Cover the holes with the two caps.
Allen key and cover caps are included in the package.
7.2 Operating the device
7.2.1 Control panel functions
CAUTION
Keep clear of rotating parts during operation.
CAUTION
When working at machines with rotating parts, take care to prevent clothes and/or
hair from being caught by the rotating parts.
