Struers LaboPol-60 - Rear View; Installation

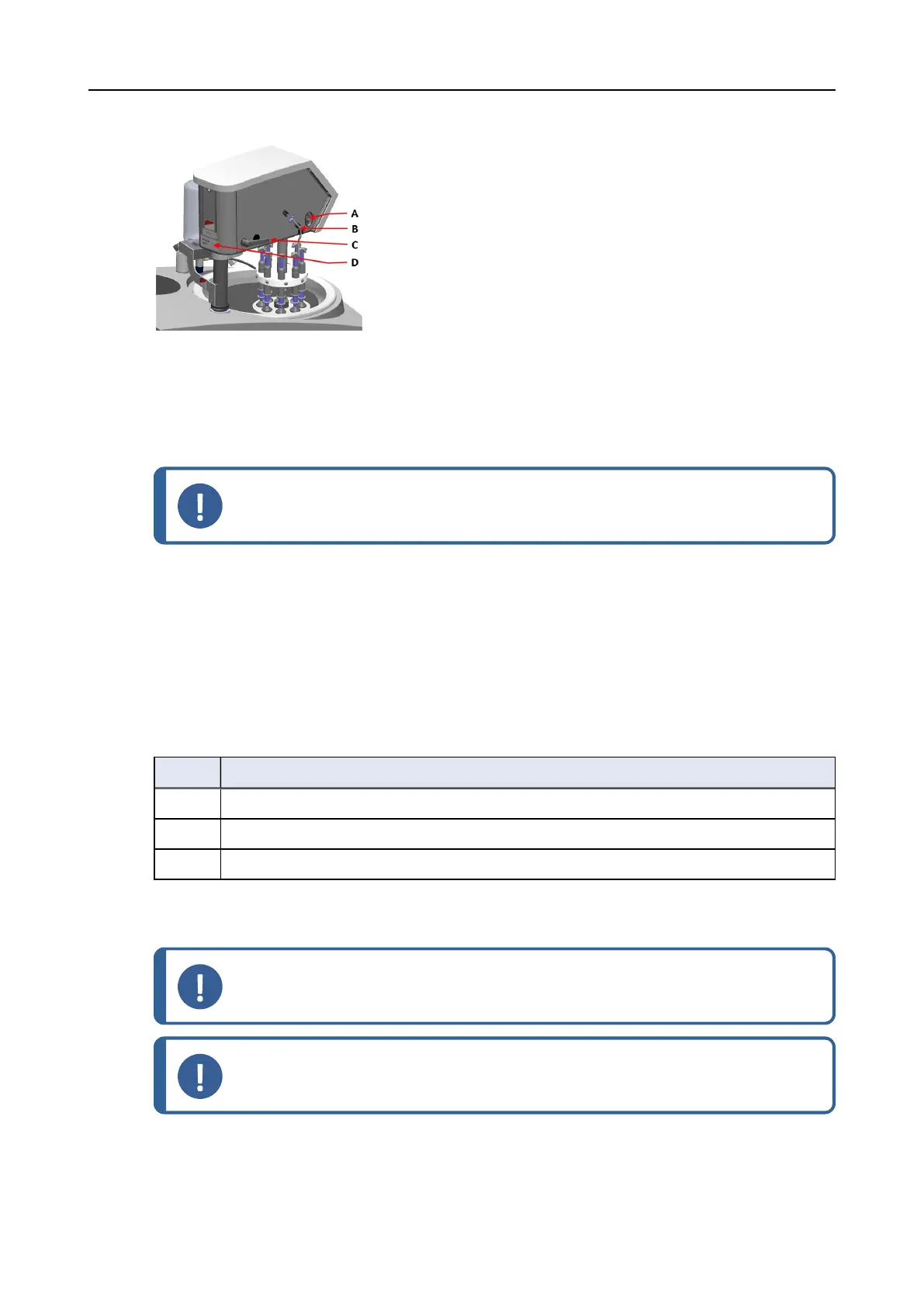

Rear view
A Rotation switch (Specimen mover head)
B Steel pin
C Locking handle
D Type plate
9.1 Installation
9.1.1 Unpacking
Note
Struers recommends that all original packaging and fittings are kept for future use.
1. Cut the packing tape on the top of the box.
2. Remove the loose parts.
3. Remove the unit from the box.
9.1.2 Checking the packing list
Optional accessories may be included in the packing box.
The packing box contains the following items:
Pcs. Description
1 LaboForce-Mi
1 Spacing disc
1 Instruction Manual set
9.1.3 Installation - LaboForce-Mi
Note
This device must be mounted securely on the machine.
Note
Do not use the speed control knob on the control panel to move the specimen mover.
Procedure
Install the specimen mover in the connection hole of the machine.
64 LaboPol-60
9 LaboForce-Mi
