– Lower feet The pistons can be cleaned or lubricated.
– Raise feet Moves the feet back into operating position.
– Holder up Moves the specimen mover head up for cleaning.
– Holder down Moves the specimen mover head back into operating
position.
12.4 Monthly
12.4.1 LaboForce-50 - pressure feet

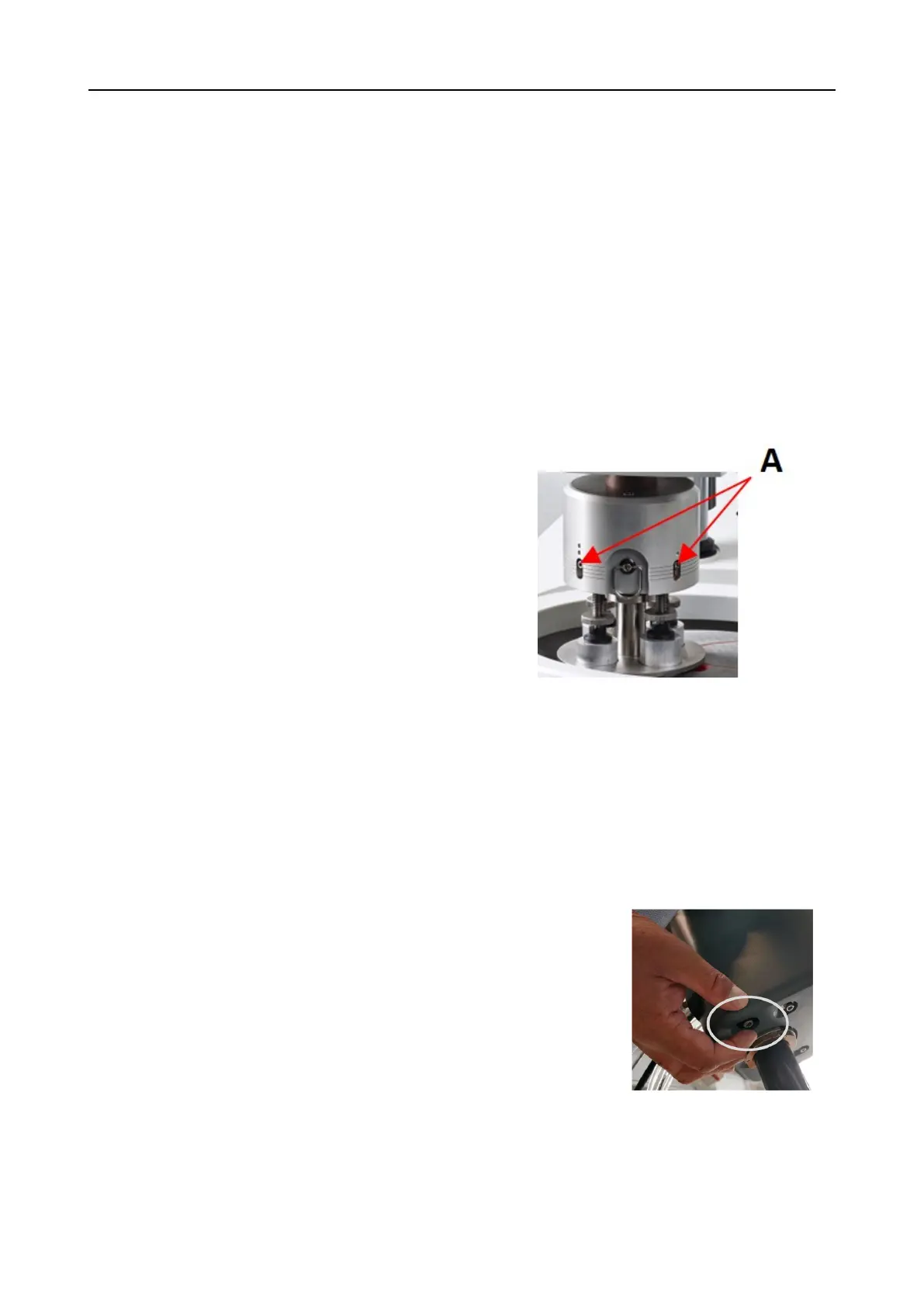

The force on the pressure feet is generated by friction pins held in place by the screws in the
spring housing.
• Use an Allen key to tighten the screws.
A Screws
12.4.2 LaboForce-100 - Emptying the water/oil filter
The specimen mover is fitted with a water/oil filter that removes excessive amounts of water and
oil from the compressed air supply.
The filter must be emptied on a regular basis.
Procedure
1. Locate the release outlet valve at the bottom of LaboForce-
100.
2. Hold a cloth under the release outlet valve and press the valve
to empty the water/oil filter.
