1. Pull the specimen mover plate down
and remove it from the shaft.
2. Insert a specimen mover plate and
push until the pin is aligned in the
groove.
3. Make sure that the specimen mover
plate is securely mounted.
4. Make sure that the specimen mover
plate is in a horizontal position.
5. The specimen mover plate must be
positioned to allow the specimen to
run 3 – 4 mm over the edge of the
preparation disc.

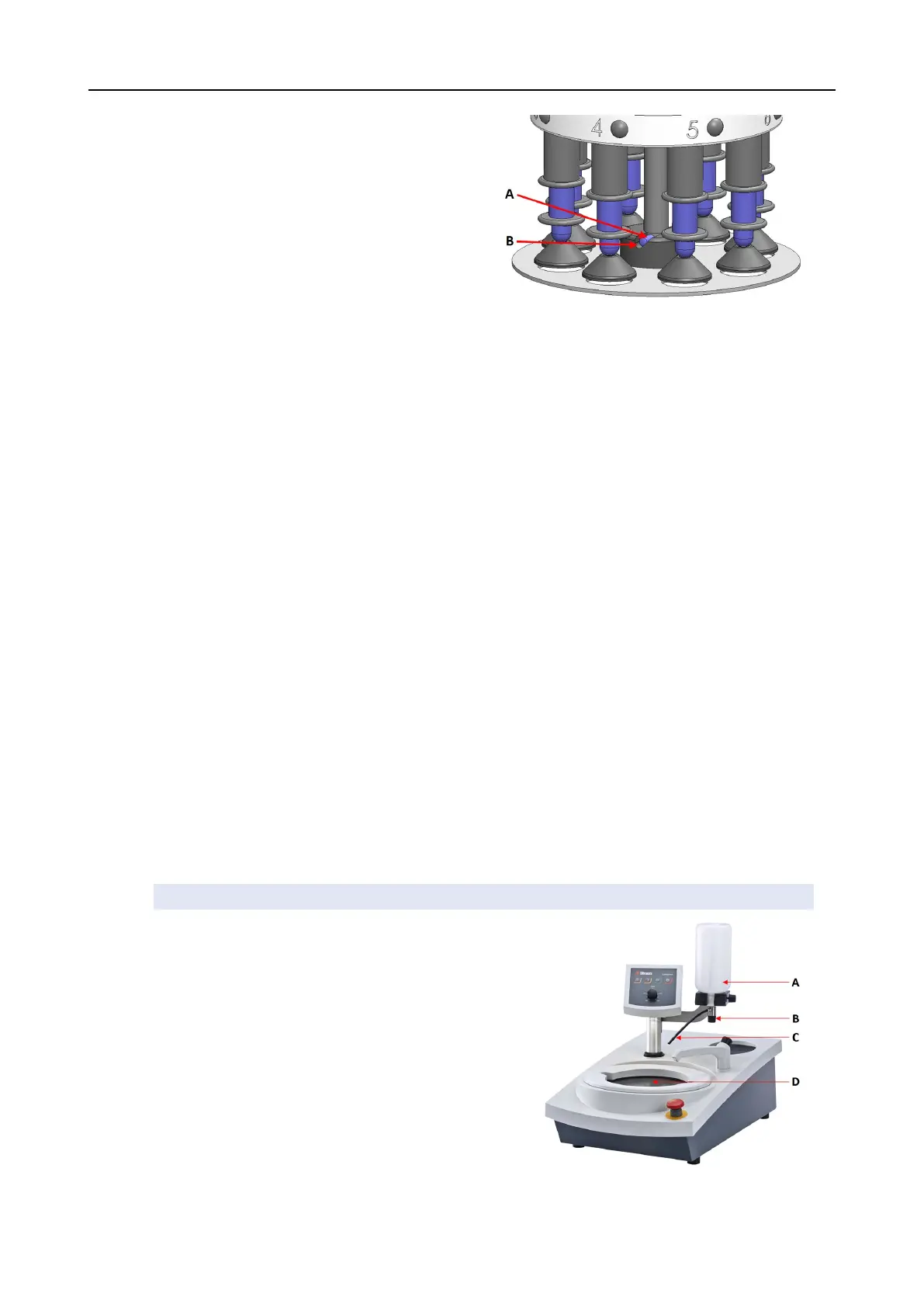

A Pin
B Groove
SeeAdjusting the horizontal position of the specimen mover plate ►67.
10 LaboDoser-10
LaboDoser-10 is a drip lubricator for delivering an uninterrupted flow of suspension or lubricant on
a preparation disc in the preparation (grinding or polishing) of materials for further
materialographic inspection.
The device is designed to be used with Struers consumables specially designed for this purpose
and this type of device.
LaboDoser-10 can be mounted on:
• LaboUI
• LaboForce-50
• LaboForce-Mi
Alternatively, LaboDoser-10 can be placed on a LaboDoser-10 table stand.
LaboDoser-10 mounted on LaboPol
A LaboDoser-10 suspension/lubricant bottle
B Adjustable valve
C Dosing nozzle
D Preparation disc
