3.3 Working space dimensions

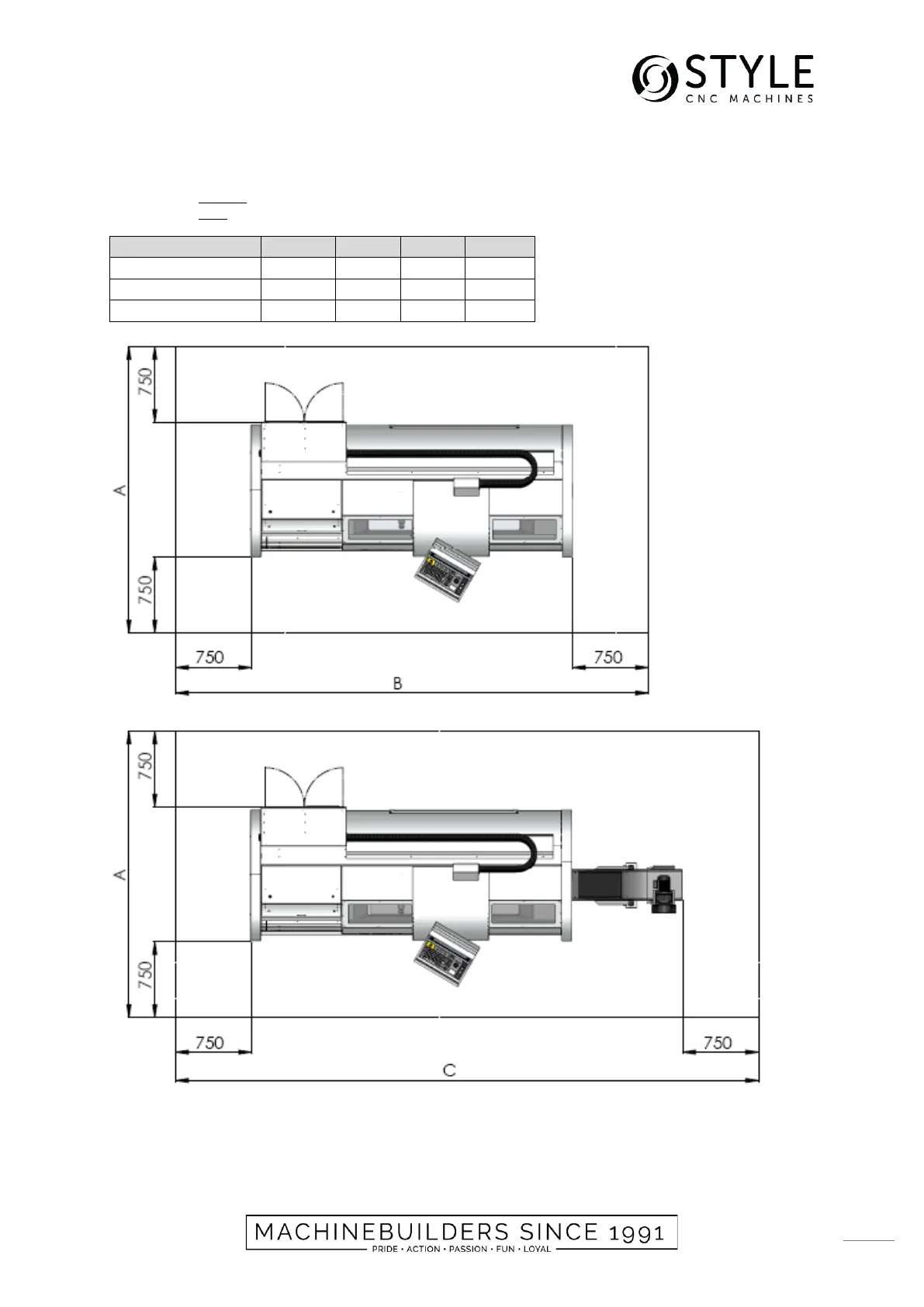

The minimum required dimensions to operate and to service the machine are shown in the table and figure below.
For machines without chip conveyor dimensions A & B need to be used.
For machines with chip conveyor dimensions A & C need to be used.
Machine type
A
B
C
350 (850 dbc)
[mm]
2800
3960
4970
510 (1350 dbc)
[mm]
2800
4670
5760
510 (1850 dbc)
[mm]
2800
5180
6270
